RX63-XEMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)GD,GT,LG,LGT

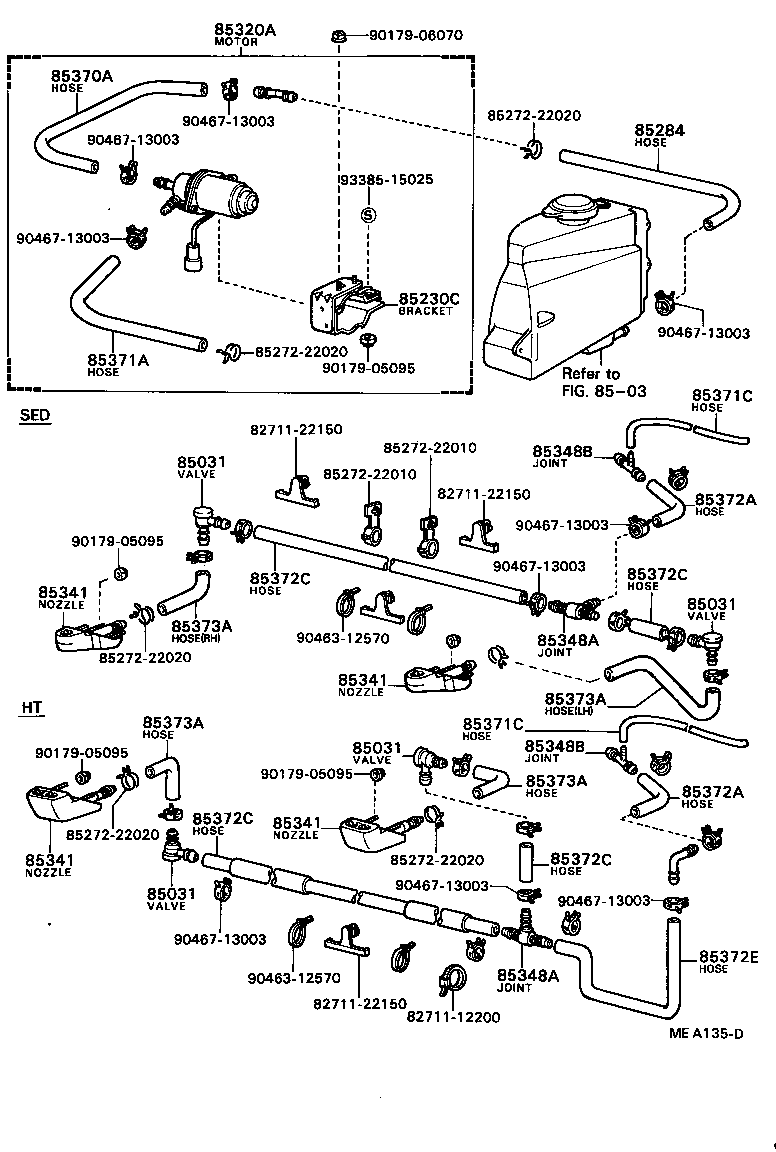

Click highlighted areas on diagram

diagram 8271112200 8271122150 8271122150 8271122150 8503 85031 85031 85031 85031 85230C 8527222010 8527222010 8527222020 8527222020 8527222020 8527222020 8527222020 85284 85320A 85341 85341 85341 85341 85348A 85348A 85348B 85348B 85370A 85371A 85371C 85371C 85372A 85372A 85372C 85372C 85372C 85372C 85372E 85373A 85373A 85373A 85373A 9017905095 9017905095 9017905095 9017905095 9017906070 9046312570 9046312570 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9338515025
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GX6#,RX63..GD,GT,LG,LGT

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GX6#,RX63..GD,GT,LG,LGT

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GX6#,RX63..GD,GT,LG,LGT

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

GX6#,RX63..GD,GT,LG,LGT

 2
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-22190

GX6#,RX63..GD,GT,LG,LGT

 1
85284 - HOSE ASSY, HEADLAMP CLEANER WASHER
85271-22051

GX6#,RX63..GD,GT,LG,LGT

 1
85271-22050

GX6#,RX63..GD,GT,LG,LGT

 1
85320A - MOTOR AND BRACKET ASSY, HEADLAMP CLEANER WASHER
85320-22011

GX6#,RX63..GD,GT,LG,LGT

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22070

GX6#,RX63..SED..(GD,GT,LG,LGT)

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22070

GX6#,RX63..SED..(GD,GT,LG,LGT)

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22070

GX6#,RX63..SED..(GD,GT,LG,LGT)

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22070

GX6#,RX63..SED..(GD,GT,LG,LGT)

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

GX6#,RX63..GD,GT,LG,LGT

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

GX6#,RX63..GD,GT,LG,LGT

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85352-20010

GX6#,RX63..GD,GT,LG,LGT

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85352-20010

GX6#,RX63..GD,GT,LG,LGT

 1
85370A - HOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
85271-22030

GX6#,RX63..GD,GT,LG,LGT

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85271-22060

GX6#,RX63..GD,GT,LG,LGT

長さ=1070

 1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85376-22071

GX6#,RX63..GD,GT,LG,LGT

 1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85376-22071

GX6#,RX63..GD,GT,LG,LGT

 1
85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
85271-22020

GX6#,RX63..GD,GT,LG,LGT

 1
85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
85271-22020

GX6#,RX63..GD,GT,LG,LGT

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14071

GX6#,RX63..GD,GT,LG,LGT

長さ=50

 1
90445-14072

GX6#,RX63..SED..(GD,GT,LG,LGT)

長さ=1320

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14071

GX6#,RX63..GD,GT,LG,LGT

長さ=50

 1
90445-14072

GX6#,RX63..SED..(GD,GT,LG,LGT)

長さ=1320

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14071

GX6#,RX63..GD,GT,LG,LGT

長さ=50

 1
90445-14072

GX6#,RX63..SED..(GD,GT,LG,LGT)

長さ=1320

 1
85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
90445-14071

GX6#,RX63..GD,GT,LG,LGT

長さ=50

 1
90445-14072

GX6#,RX63..SED..(GD,GT,LG,LGT)

長さ=1320

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-22010

GX6#,RX63..SED..(GD,GT,LG,LGT)

LH

 1
85271-22040

GX6#,RX63..SED..(GD,GT,LG,LGT)

RH

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-22010

GX6#,RX63..SED..(GD,GT,LG,LGT)

LH

 1
85271-22040

GX6#,RX63..SED..(GD,GT,LG,LGT)

RH

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-22010

GX6#,RX63..SED..(GD,GT,LG,LGT)

LH

 1
85271-22040

GX6#,RX63..SED..(GD,GT,LG,LGT)

RH

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85271-22010

GX6#,RX63..SED..(GD,GT,LG,LGT)

LH

 1
85271-22040

GX6#,RX63..SED..(GD,GT,LG,LGT)

RH

 1
Common parts
82711-12200
82711-22150
85272-22010
85272-22020
90179-05095
90179-06070
90463-12570
90467-13003
93385-15025
Linked diagrams
8503
