RX63-XEMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

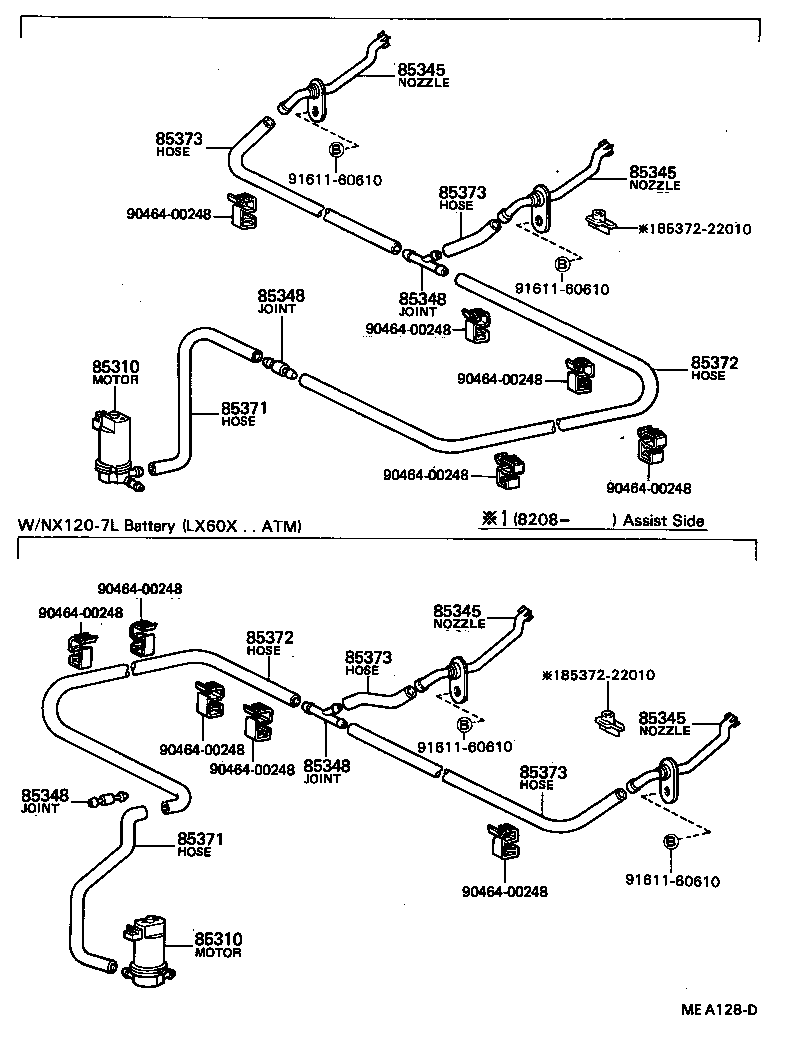

ILLUST NO. 1 OF 2(8009- )

Click highlighted areas on diagram

diagram 85310 85310 85345 85345 85345 85345 85348 85348 85348 85348 85371 85371 85372 85372 8537222010 8537222010 85373 85373 85373 85373 9046400248 9046400248 9046400248 9046400248 9046400248 9046400248 9046400248 9046400248 9046400248 9046400248 9161160610 9161160610 9161160610 9161160610
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

GX6#,LX6#,MX6#,RX6#,TX6#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

GX6#,LX6#,MX6#,RX6#,TX6#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-22130

GX6#,LX6#,MX6#,RX6#,TX6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-22130

GX6#,LX6#,MX6#,RX6#,TX6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-22130

GX6#,LX6#,MX6#,RX6#,TX6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-22130

GX6#,LX6#,MX6#,RX6#,TX6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

2WAY

 1
85355-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

3WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

2WAY

 1
85355-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

3WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

2WAY

 1
85355-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

3WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

2WAY

 1
85355-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

3WAY

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

*H,L=320

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

*H,L=320

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

GX6#,LX6#,MX6#,RX6#,TX6#

*H,L=1300

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

GX6#,LX6#,MX6#,RX6#,TX6#

*H,L=1300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

*H,L=100

 1
Common parts
85372-22010
90464-00248
91611-60610

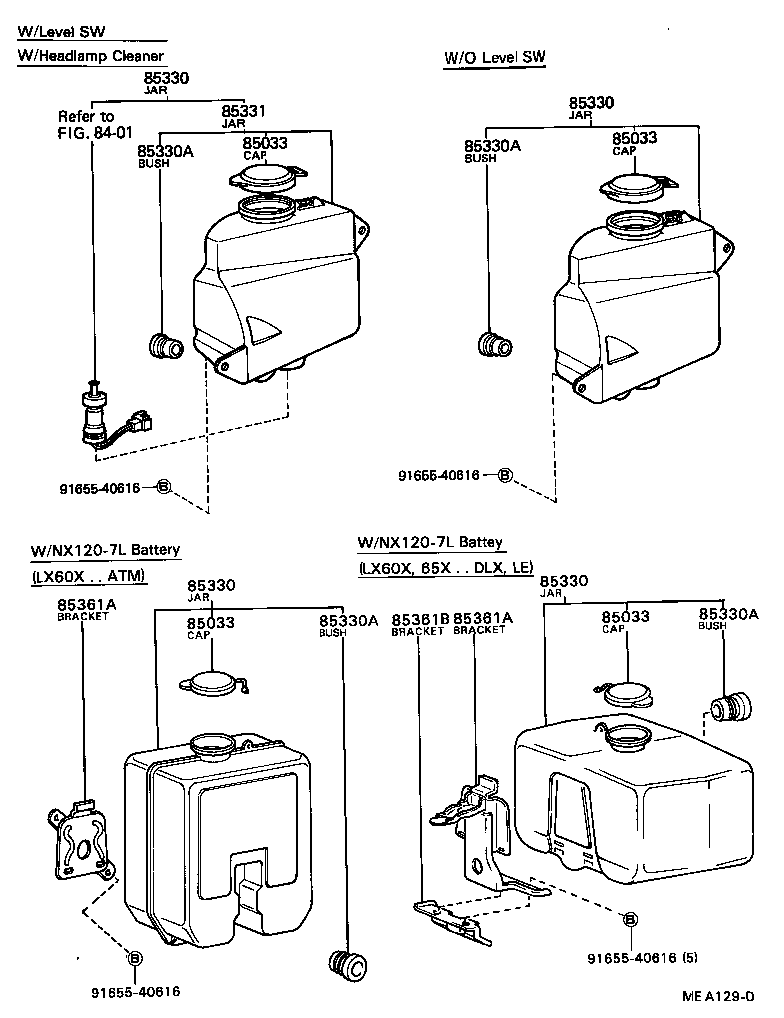

ILLUST NO. 2 OF 2(8009- )

Click highlighted areas on diagram

diagram 8401 85033 85033 85033 85033 85330 85330 85330 85330 85330A 85330A 85330A 85330A 85331 85361A 85361A 85361B 9165540616 9165540616 9165540616 9165540616
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-22040

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85332-16010

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-22040

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85332-16010

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-22040

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85332-16010

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-22040

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85332-16010

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-22180

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85330-22100

GX6#,MX63,RX63..GD,GT,LG,LGT

W/LEVEL SW

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-22180

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85330-22100

GX6#,MX63,RX63..GD,GT,LG,LGT

W/LEVEL SW

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-22180

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85330-22100

GX6#,MX63,RX63..GD,GT,LG,LGT

W/LEVEL SW

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-22180

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
85330-22100

GX6#,MX63,RX63..GD,GT,LG,LGT

W/LEVEL SW

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-22020

GX6#,MX61,63,RX63..GD,GT,LG,LGT

 1
85331-22030

GX6#,RX63..GD,GT,LG,LGT

W/HEADLAMP CLEANER

 1
Common parts
91655-40616
Linked diagrams
8401
