RX63-XEMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

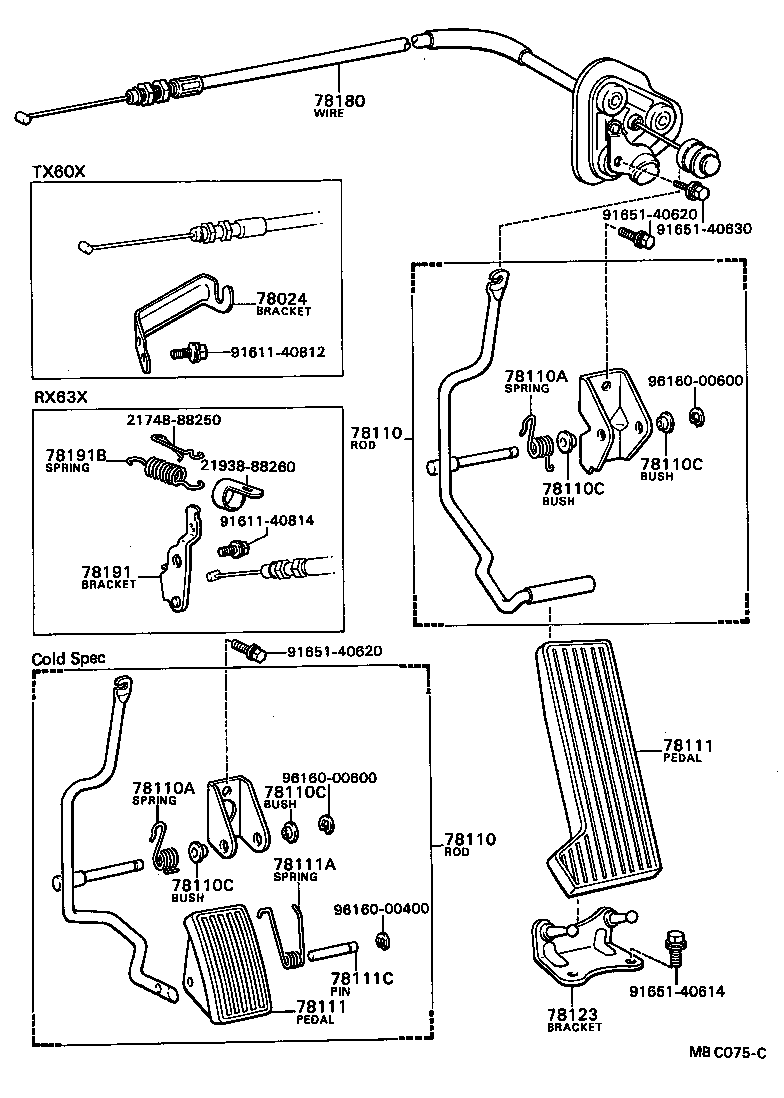

(8009-8208)RX63,TX6#

Click highlighted areas on diagram

diagram 2174888250 2193888260 78024 78110 78110 78110A 78110A 78110C 78110C 78110C 78110C 78111 78111 78111A 78111C 78123 78180 78191 78191B 9161140812 9161140814 9165140614 9165140620 9165140620 9165140630 9616000400 9616000600 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MX61,63

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22100

RX63,TX6#

COLD SPEC

 1
78120-22080

RX63,TX6#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22100

RX63,TX6#

COLD SPEC

 1
78120-22080

RX63,TX6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20030

RX63,TX6#

COLD SPEC

 1
90508-20027

RX63,TX6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20030

RX63,TX6#

COLD SPEC

 1
90508-20027

RX63,TX6#

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08164

RX63,TX6#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08164

RX63,TX6#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08164

RX63,TX6#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08164

RX63,TX6#

 2
78111 - PEDAL, ACCELERATOR
78111-30080

GX6#,LX6#,MX6#,RX6#,TX6#

 1
78111-12100

GX6#,LX6#,MX6#,RX6#,TX6#

COLD SPEC

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GX6#,LX6#,MX6#,RX6#,TX6#

 1
78111-12100

GX6#,LX6#,MX6#,RX6#,TX6#

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

GX6#,LX6#,MX6#,RX6#,TX6#

COLD SPEC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-22040

GX6#,LX6#,MX6#,RX6#,TX6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22171

RX63

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
21524-88261

RX63

 1
21524-88262

RX63

 1
78191B - SPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET)
90506-10025

RX63

 1
90506-12025

RX63

 1
Common parts
21748-88250
21938-88260
91611-40812
91611-40814
91651-40614
91651-40620
91651-40630
96160-00400
96160-00600

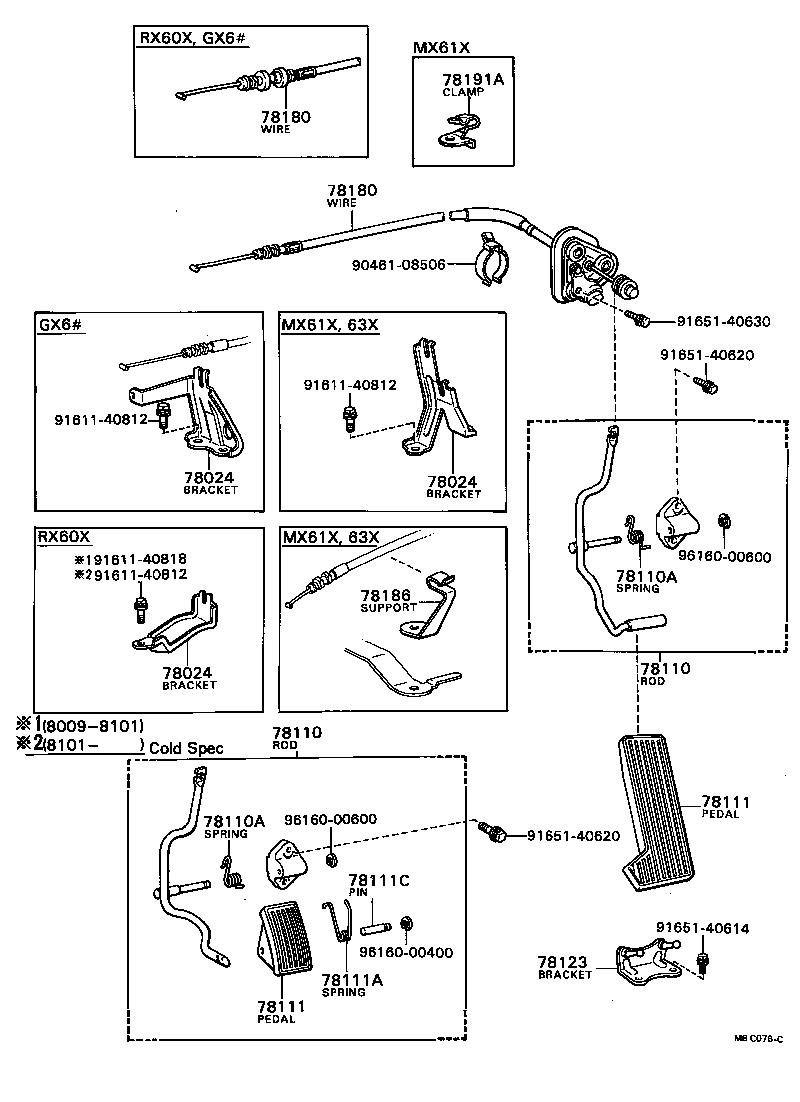

(8009-8208)GX6#,MX61,63,RX60

Click highlighted areas on diagram

diagram 78024 78024 78024 78110 78110 78110A 78110A 78111 78111 78111A 78111C 78123 78180 78180 78186 78191A 9046108506 9161140812 9161140812 9161140812 9161140818 9165140614 9165140620 9165140620 9165140630 9616000400 9616000600 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MX61,63

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MX61,63

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-30070

MX61,63

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22100

RX63,TX6#

COLD SPEC

 1
78120-22080

RX63,TX6#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22100

RX63,TX6#

COLD SPEC

 1
78120-22080

RX63,TX6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20030

RX63,TX6#

COLD SPEC

 1
90508-20027

RX63,TX6#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20030

RX63,TX6#

COLD SPEC

 1
90508-20027

RX63,TX6#

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GX6#,LX6#,MX6#,RX6#,TX6#

 1
78111-12100

GX6#,LX6#,MX6#,RX6#,TX6#

COLD SPEC

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GX6#,LX6#,MX6#,RX6#,TX6#

 1
78111-12100

GX6#,LX6#,MX6#,RX6#,TX6#

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

GX6#,LX6#,MX6#,RX6#,TX6#

COLD SPEC

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-22040

GX6#,LX6#,MX6#,RX6#,TX6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22171

RX63

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22171

RX63

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-30040

MX61,63

 1
Common parts
90461-08506
91611-40812
91611-40818
91651-40614
91651-40620
91651-40630
96160-00400
96160-00600
