RX63-XEMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

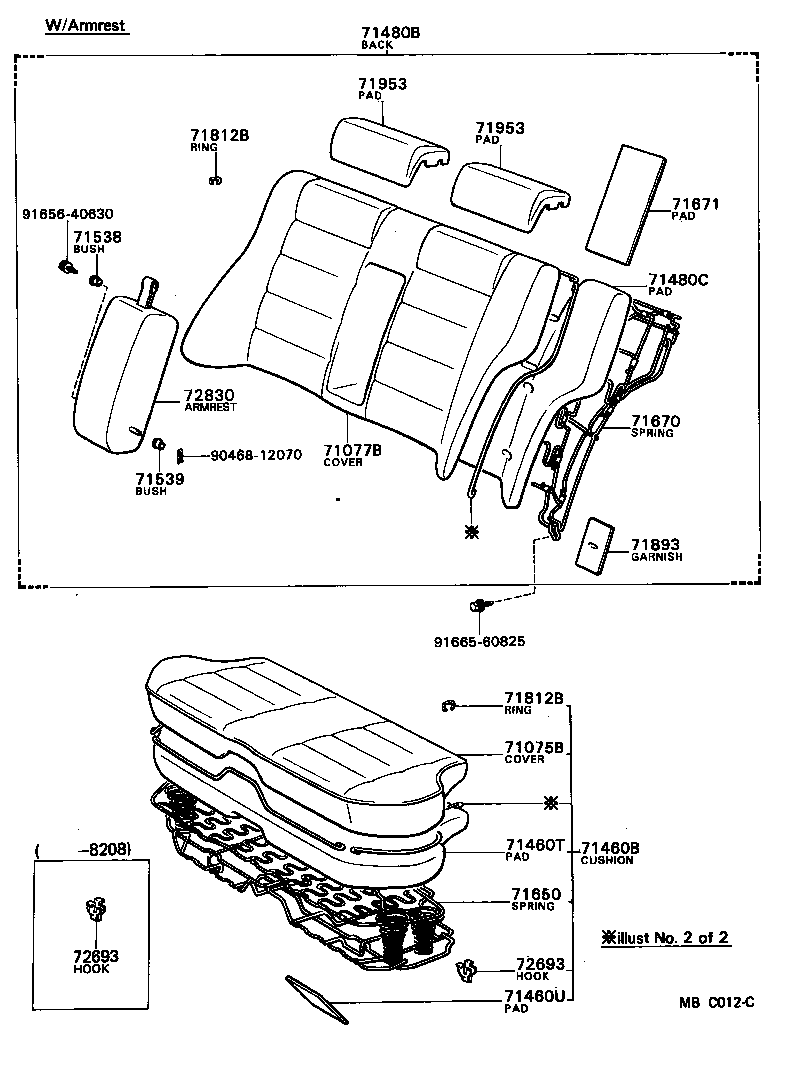

ILLUST NO. 1 OF 2(8009-8208)GR ; (8009-8208)GX60,LX60..HT,SED..GL,LE,LG ; (8009-8208)GX61,MX61,RX6#,

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71460T 71460U 71480B 71480C 71538 71539 71650 71670 71671 71812B 71812B 71893 71953 71953 72693 72693 72830 9046812070 9165640630 9166560825
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2250003

GX61,RX63..SED..(GT,LGT)

FB,GRAY,GRAY,TRIM2#

 1
71075-2250005

GX61,RX63..SED..(GT,LGT)

FB,GREIGE,BEIGE,TRIM4#

 1
71075-2250004

GX61,RX63..SED..(GT,LGT)

FB,BLUE,BLUE,TRIM8#

 1
71075-2250005

RX63..SED

FB,GREIGE,BEIGE,TRIM4#

 1
71075-2250004

RX63..SED

FB,BLUE,BLUE,TRIM8#

 1
71075-2250003

RX63..SED

FB,GRAY,GRAY,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2259004

GX61,RX63..SED..(GT,LGT)

FB,BLUE,BLUE,TRIM8#

 1
71077-2259005

GX61,RX63..SED..(GT,LGT)

FB,GREIGE,BEIGE,TRIM4#

 1
71077-2259003

GX61,RX63..SED..(GT,LGT)

FB,GRAY,GRAY,TRIM2#

 1
71077-2259004

RX63..SED

FB,BLUE,BLUE,TRIM8#

 1
71077-2259003

RX63..SED

FB,GRAY,GRAY,TRIM2#

 1
71077-2259005

RX63..SED

FB,GREIGE,BEIGE,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-2250005

GX61,RX63..SED..(GT,LGT)

FB,GREIGE,BEIGE,TRIM4#

 1
71460-2250004

GX61,RX63..SED..(GT,LGT)

FB,BLUE,BLUE,TRIM8#

 1
71460-2250003

GX61,RX63..SED..(GT,LGT)

FB,GRAY,GRAY,TRIM2#

 1
71460-2250005

RX63..SED

FB,GREIGE,BEIGE,TRIM4#

 1
71460-2250003

RX63..SED

FB,GRAY,GRAY,TRIM2#

 1
71460-2250004

RX63..SED

FB,BLUE,BLUE,TRIM8#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-22100

GX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2259003

GX61,RX63..SED..(GT,LGT)

FB,GRAY,GRAY,TRIM2#

 1
71480-2259004

GX61,RX63..SED..(GT,LGT)

FB,BLUE,BLUE,TRIM8#

 1
71480-2259005

GX61,RX63..SED..(GT,LGT)

FB,GREIGE,BEIGE,TRIM4#

 1
71480-2259005

RX63..SED

FB,GREIGE,BEIGE,TRIM4#

 1
71480-2259004

RX63..SED

FB,BLUE,BLUE,TRIM8#

 1
71480-2259003

RX63..SED

FB,GRAY,GRAY,TRIM2#

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-22040

GX61,MX61,RX63..SED..(GT,LGT)

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-22070

GX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-22150

GX61,MX61,RX63..SED..(GT,LGT)

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX6#,MX61,RX6#..SED..(GR,GT,LE,LG,LGT)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GX6#,LX60,65,MX60,61,RX6#,SX60,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2202004

GX61,RX63..SED..(GT,LGT)

BLUE,BLUE,TRIM8#

 1
72830-2202005

GX61,RX63..SED..(GT,LGT)

GREIGE,BEIGE,TRIM4#

 1
72830-2202003

GX61,RX63..SED..(GT,LGT)

GRAY,GRAY,TRIM2#

 1
72830-2202005

RX63..SED

GREIGE,BEIGE,TRIM4#

 1
72830-2202004

RX63..SED

BLUE,BLUE,TRIM8#

 1
72830-2202003

RX63..SED

GRAY,GRAY,TRIM2#

 1
Common parts
90468-12070
91656-40630
91665-60825

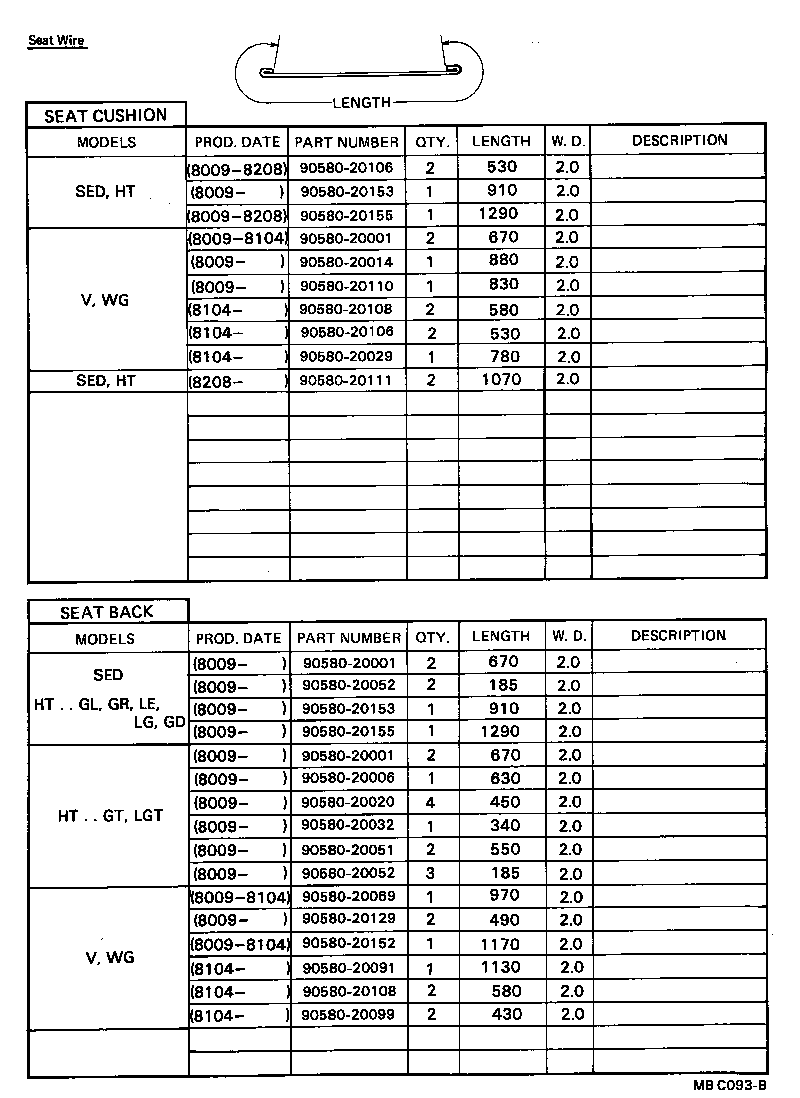

ILLUST NO. 2 OF 2(8009- )

Click highlighted areas on diagram

diagram 9058020001 9058020001 9058020001 9058020006 9058020014 9058020020 9058020029 9058020032 9058020051 9058020052 9058020052 9058020069 9058020091 9058020099 9058020106 9058020106 9058020108 9058020108 9058020110 9058020111 9058020129 9058020152 9058020153 9058020153 9058020155 9058020155
Part # Description Qty Price
Common parts
90580-20001
90580-20006
90580-20014
90580-20020
90580-20029
90580-20032
90580-20051
90580-20052
90580-20069
90580-20091
90580-20099
90580-20106
90580-20108
90580-20110
90580-20111
90580-20129
90580-20152
90580-20153
90580-20155
