RX63-XEMZF (1980)
Toyota Mark 2
(8009- )SED

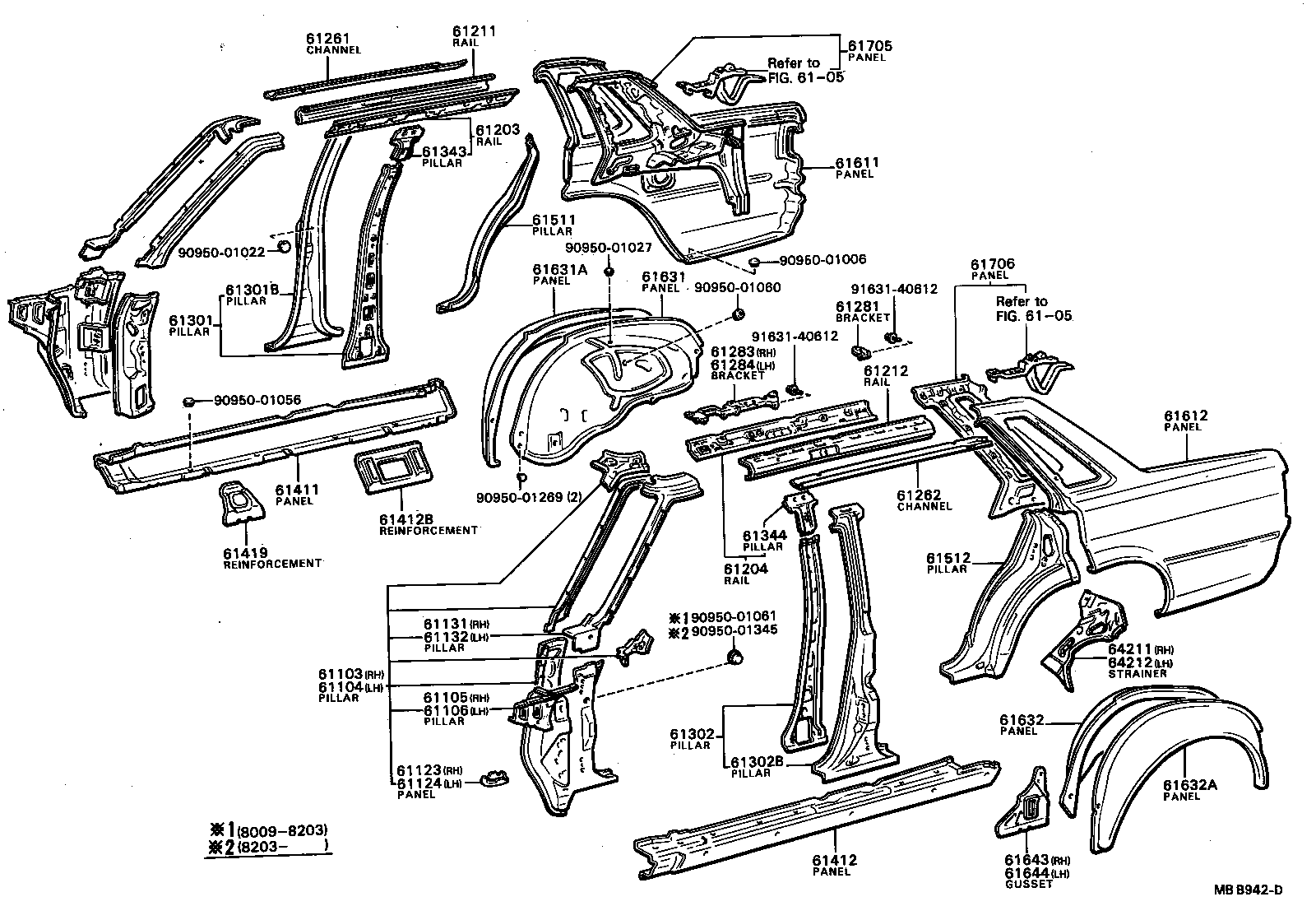

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-22020 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 61021-22021 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-22020 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61025-22902 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 61025-22906 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61026-22902 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 61123 - PANEL, COWL SIDE LOWER, RH | ||||
| 61123-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 61124 - PANEL, COWL SIDE LOWER, LH | ||||
| 61124-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-22090 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-22090 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-22090 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-22090 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-22050 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-22050 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-22050 |
GX6#,LX60,MX6#,RX6#,TX60..SED |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-22050 |
GX6#,LX60,MX6#,RX6#,TX60..SED |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-22010 |
GX61..SED..(GD,LGT);LX65,MX61,RX63..SED..(GT,LE,LGT) |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-22010 |
GX61..SED..(GD,LGT);LX65,MX61,RX63..SED..(GT,LE,LGT) |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-22010 |
GX61..SED..(GD,LGT);LX65,MX61,RX63..SED..(GT,LE,LGT) |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-22220 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-22902 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-22240 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61302B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-22902 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-22060 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-22080 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-22101 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-22101 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 61412B - REINFORCEMENT, ROCKER PANEL, NO.2 | ||||
| 61414-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 61419 - REINFORCEMENT, ROCKER OUTER PANEL | ||||
| 61418-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61501-22900 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61502-22900 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-22939 |
GX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-22912 |
GX6#,LX60,MX6#,RX6#,TX60..SED |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-22907 |
GX61,LX65,MX61,63,RX63 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61603-22905 |
GX6#,LX60,MX61,63,RX6#,TX60..HT,SED |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-22906 |
GX61,MX61,63,RX63..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-22070 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61641-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61642-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-22050 |
GX6#,LX60,MX61,RX6#,SX60,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD) |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-22050 |
GX6#,LX60,MX61,RX6#,SX60,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD) |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-22060 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-22050 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01022 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01269 | ||||
| 90950-01345 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 6105 | ||||
