RX63-XEMZF (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

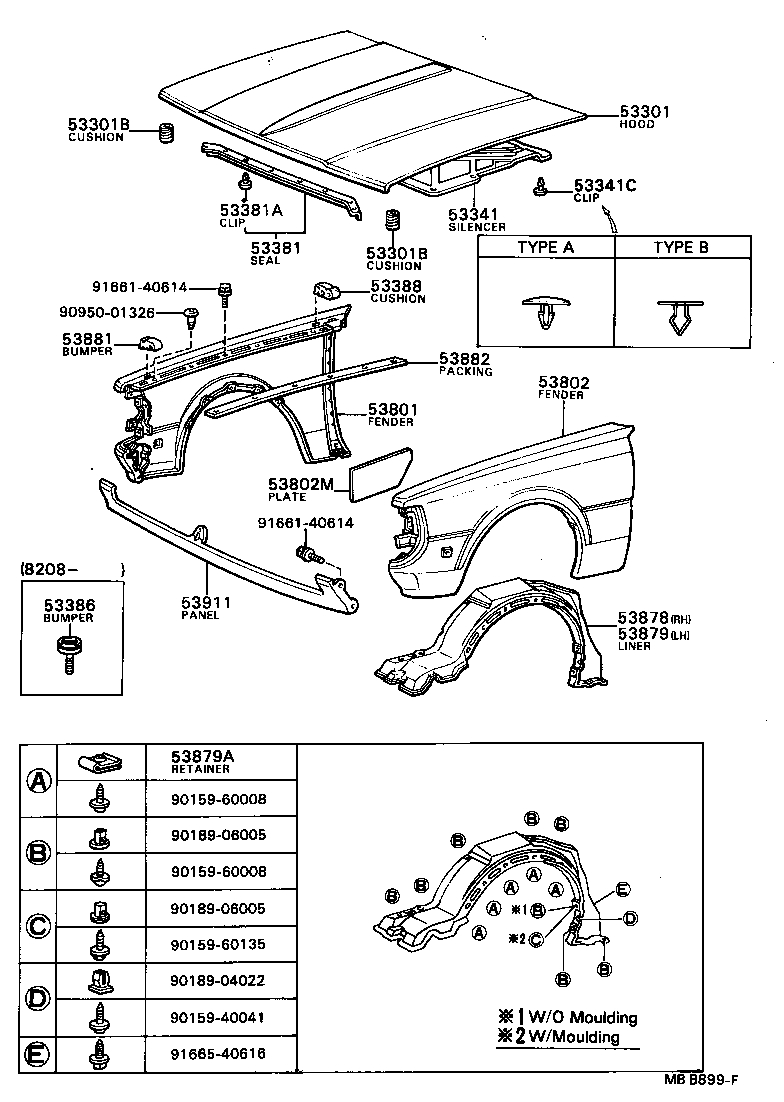

Click highlighted areas on diagram

diagram 53301 53301B 53301B 53341 53341C 53381 53381A 53386 53388 53801 53802 53802M 53878 53879 53879A 53881 53882 53911 9015940041 9015960008 9015960008 9015960135 9018904022 9018906005 9018906005 9095001326 9166140614 9166140614 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-22090

GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG

 1
53301B - CUSHION, HOOD BUMPER
90541-15111

GX6#,LX6#,MX6#,RX6#,TX6#

 2
53301B - CUSHION, HOOD BUMPER
90541-15111

GX6#,LX6#,MX6#,RX6#,TX6#

 2
53341 - SILENCER, HOOD, NO.1
53341-22030

GX6#,LX60,67,MX60,63,RX6#,SX60,TX6#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09004

GX6#,LX60,67,MX60,63,RX6#,SX60,TX6#

TYPE A

 19
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-22050

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 8
53388 - CUSHION, HOOD, REAR
53388-22020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-22650

GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-22630

GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG

 1
53878 - LINER, FRONT FENDER, RH
53875-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
53879 - LINER, FRONT FENDER, LH
53876-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 10
53881 - BUMPER, FENDER TO HOOD
53384-22040

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
53882 - PACKING, FRONT FENDER MAIN
53882-22040

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
53911 - PANEL, FRONT VALANCE
53911-22100

GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG

 1
Common parts
90159-40041
90159-60008
90159-60135
90189-04022
90189-06005
90950-01326
91661-40614
91665-40616
