RX63-XEMZF (1980)
Toyota Mark 2
Production
Sep 1980
-
Aug 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)18RGEU

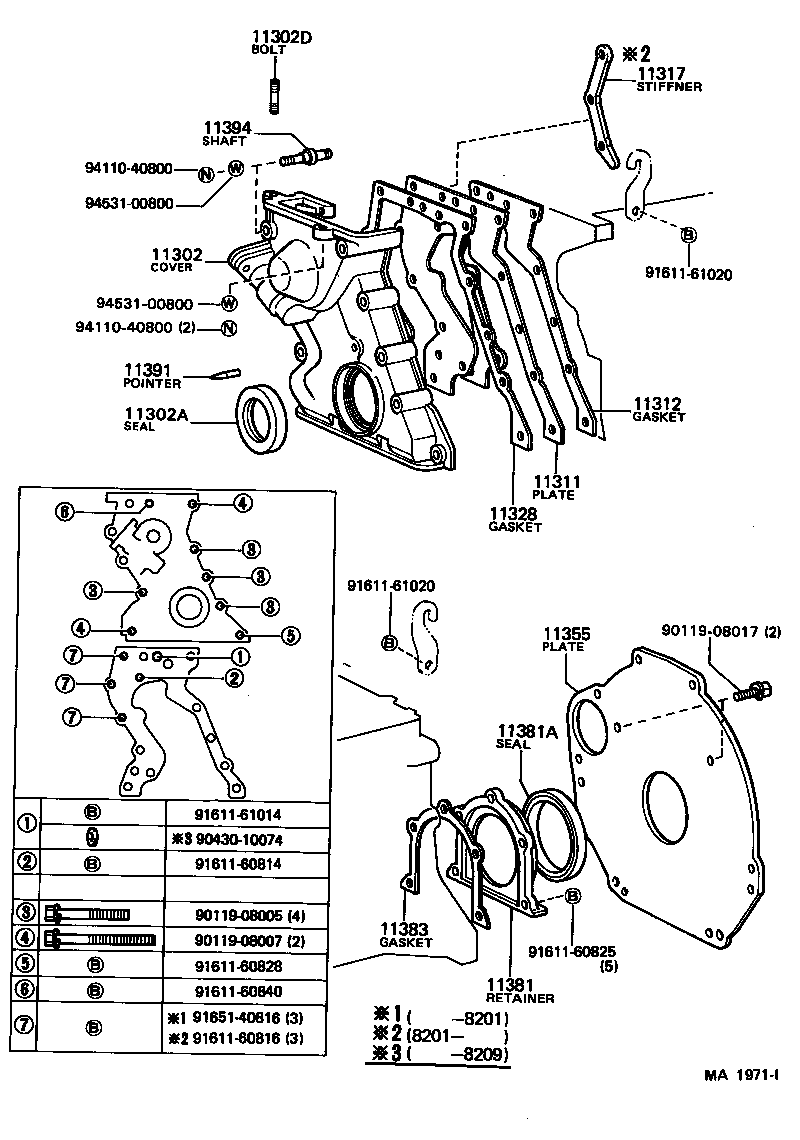

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88252 |
18RGEU..RX63 |
1 | ||
| 11321-88270 |
18RGEU..RX63 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-45069 |
18RGEU..RX63 TC3 45 68 12 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90072-11619 |
18RGEU..RX63 |
2 | ||
| 11311 - PLATE, FRONT END | ||||
| 11311-33011 |
18RGEU..RX63 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-88270 |
18RGEU..RX63 |
1 | ||
| 11317 - STIFFNER, FRONT END PLATE | ||||
| 11317-88270 |
18RGEU..RX63 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88270 |
18RGEU..RX63 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-33012 |
18RGEU..RX63 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-38010 |
21RU,18RGEU..RX6# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-80001 |
21RU,18RGEU..RX6# TC 80 100 12 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-33010 |
21RU,18RGEU..RX6# |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-40010 |
18RGEU..RX63 |
1 | ||
| 11394 - SHAFT, CHAIN TENSHIONER | ||||
| 11394-34010 |
18RGEU..RX63 |
1 | ||
| Common parts | ||||
| 90119-08005 | ||||
| 90119-08007 | ||||
| 90119-08017 | ||||
| 90430-10074 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91611-60828 | ||||
| 91611-60840 | ||||
| 91611-61014 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
