RX60-XTPNS (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 5(8009- )

Click highlighted areas on diagram

diagram 8271112170 8271112200 8271112250 8271112540 8271114100 8271122300 8271122350 8271122360 8271122380 8271122410 8271122440 8271122480 8271122490 8271122510 8271122520 8271122540 8271123030 8271130070 8271191601 9046106032 9046106075 9046106083 9046106143 9046106303 9046106804
Part # Description Qty Price
Common parts
82711-12170
82711-12200
82711-12250
82711-12540
82711-14100
82711-22300
82711-22350
82711-22360
82711-22380
82711-22410
82711-22440
82711-22480
82711-22490
82711-22510
82711-22520
82711-22540
82711-23030
82711-30070
82711-91601
90461-06032
90461-06075
90461-06083
90461-06143
90461-06303
90461-06804

ILLUST NO. 5 OF 5(8009- )

Click highlighted areas on diagram

diagram 9010506045 9011906005 9011906049 9011906067 9011906114 9011906122 9011908063 9016860010 9161160612 9161160812 9161160814 9161160820 9161161014 9161161020 9165140610 9165140612 9165140614 9165540616 9165540620 9166540616 9358016012
Part # Description Qty Price
Common parts
90105-06045
90119-06005
90119-06049
90119-06067
90119-06114
90119-06122
90119-08063
90168-60010
91611-60612
91611-60812
91611-60814
91611-60820
91611-61014
91611-61020
91651-40610
91651-40612
91651-40614
91655-40616
91655-40620
91665-40616
93580-16012

ILLUST NO. 4 OF 5(8009- )

Click highlighted areas on diagram

diagram 9046106053 9046108175 9046108183 9046108200 9046108202 9046108218 9046108309 9046108483 9046108514 9046304033 9046304079 9046305025 9046306383 9046308077 9046310012 9046310050 9046310060 9046400102 9046400137 9046400159 9046400161 9046400166 9046400167 9046709007 9048026043
Part # Description Qty Price
Common parts
90461-06053
90461-08175
90461-08183
90461-08200
90461-08202
90461-08218
90461-08309
90461-08483
90461-08514
90463-04033
90463-04079
90463-05025
90463-06383
90463-08077
90463-10012
90463-10050
90463-10060
90464-00102
90464-00137
90464-00159
90464-00161
90464-00166
90464-00167
90467-09007
90480-26043

ILLUST NO. 4 OF 5(8009- )

Click highlighted areas on diagram

diagram 8271122220 8271122620 8271122640 8271122650 8271122670 8271122690 8271124090 8271124100 8271130370 8271130400 8271130640 9046106006 9046108186 9046304012 9046310024 9046315002 9046400190 9048020363 9095001251
Part # Description Qty Price
Common parts
82711-22220
82711-22620
82711-22640
82711-22650
82711-22670
82711-22690
82711-24090
82711-24100
82711-30370
82711-30400
82711-30640
90461-06006
90461-08186
90463-04012
90463-10024
90463-15002
90464-00190
90480-20363
90950-01251

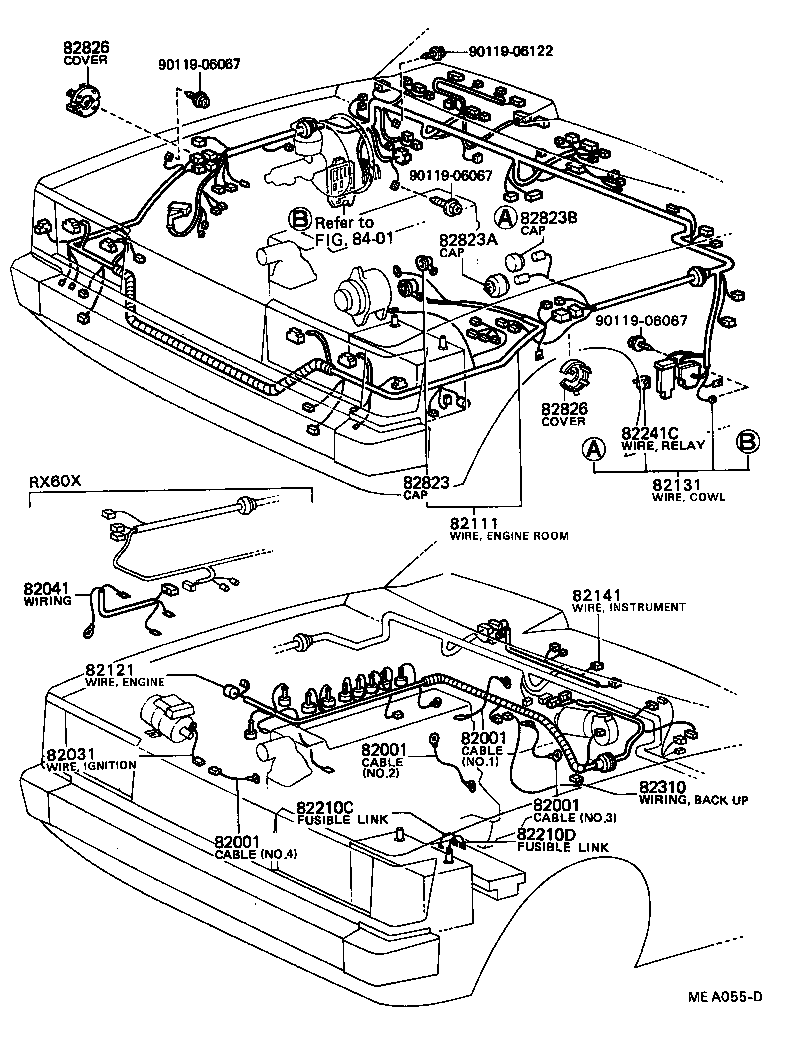

ILLUST NO. 1 OF 5(8009-8208)RX6#

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82031 82041 82111 82121 82131 82141 82210C 82210D 82241C 82310 82823 82823A 82823B 82826 82826 8401 9011906067 9011906067 9011906067 9011906122
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX6#,RX6#,SX60,TX6#

L=300(NO.3)

 1
90980-07119

GX6#,MX6#,RX6#,SX60,TX6#

L=350(NO.2)

 1
90980-07126

MX6#,RX60

L=500(NO.1)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX6#,RX6#,SX60,TX6#

L=300(NO.3)

 1
90980-07119

GX6#,MX6#,RX6#,SX60,TX6#

L=350(NO.2)

 1
90980-07126

MX6#,RX60

L=500(NO.1)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX6#,RX6#,SX60,TX6#

L=300(NO.3)

 1
90980-07119

GX6#,MX6#,RX6#,SX60,TX6#

L=350(NO.2)

 1
90980-07126

MX6#,RX60

L=500(NO.1)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX6#,RX6#,SX60,TX6#

L=300(NO.3)

 1
90980-07119

GX6#,MX6#,RX6#,SX60,TX6#

L=350(NO.2)

 1
90980-07126

MX6#,RX60

L=500(NO.1)

 1
82041 - WIRING SUB-ASSY, TCS COMPUTER, FRONT
82041-20100

RX60

 1
82111 - WIRE, ENGINE ROOM MAIN
82270-22520

RX60

 1
82131 - WIRE, COWL
82230-22490

RX60..4FC

 1
82141 - WIRE, INSTRUMENT PANEL
82201-22350

RX60,TX60..HT..(3FC,4F,5F)..GL

 1
82201-22360

RX60..HT..4FC..GL

 1
82210C - FUSIBLE LINK
90982-08157

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

FL 0.3 ﾋﾟﾝｸ

 1
82210D - FUSIBLE LINK
90982-08125

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

1.0ｲｴﾛｰ,長さ=110

 1
82241C - WIRE, RELAY
82241-22020

GX6#,LX6#,MX60,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD

W/O COOLER RELAY

 1
82823 - CAP, TERMINAL, NO.1
82823-12020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
82823A - CAP, TERMINAL, NO.2
82823-30020

GX6#,LX65,MX6#,RX6#,SX60

 1
82826 - COVER, WIRING HARNESS HOLE
82817-22280

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
82826 - COVER, WIRING HARNESS HOLE
82817-22280

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
Common parts
90119-06067
90119-06122
Linked diagrams
8401

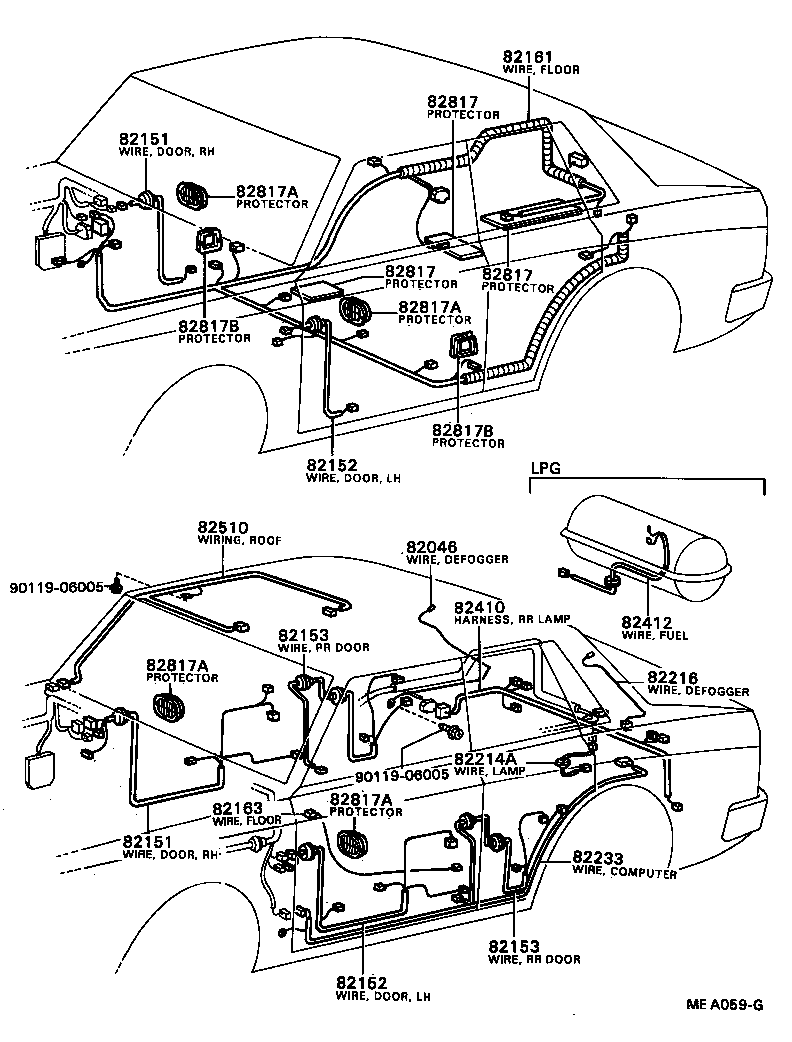

ILLUST NO. 2 OF 5(8009- )HT,SED

Click highlighted areas on diagram

diagram 82046 82151 82151 82152 82152 82153 82153 82161 82163 82214A 82216 82233 82410 82412 82510 82817 82817 82817 82817A 82817A 82817A 82817A 82817B 82817B 9011906005 9011906005
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82505-22020

GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GR,GT,LE,STD

W/RADIO ONLY

 1
82151 - WIRE, FRONT DOOR, RH
82505-22020

GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GR,GT,LE,STD

W/RADIO ONLY

 1
82152 - WIRE, FRONT DOOR, LH
82505-22020

GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GR,GT,LE,STD

W/RADIO ONLY

 1
82152 - WIRE, FRONT DOOR, LH
82505-22020

GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GR,GT,LE,STD

W/RADIO ONLY

 1
82161 - WIRE, FLOOR
82420-22480

LX60,RX60,TX60..DLX,GL,STD

 1
82214A - WIRE, LAMP
82214-22030

GX6#,LX60,MX6#,RX6#,TX60..HT,SED

 1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82410-95803

GX6#,MX61,63,RX60,TX60..HT

W/RR SPEAKER

 1
82410-95802

GX60,RX60,TX60..HT..(GL,GR,LE)

 1
82410-95800

GX6#,MX63,RX6#,TX60..HT

W/RR SPEAKER

 1
82410-95802

GX60,RX6#,TX60..HT..(GL,GR,GT,LE)

 1
82410-95800

GX6#,MX63,RX60,TX60..HT

W/RR SPEAKER

 1
82510 - WIRING ASSY, ROOF
82510-22160

GX60,LX6#,MX60,RX6#,TX6#..DLX,GL,GR,GT,LE,STD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22170

GX6#,MX6#,RX6#,SX60,TX6#

L=100X200

 2
82817-22190

GX6#,LX60,MX60,RX6#,SX60,TX60..HT,SED

L=100X350

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22170

GX6#,MX6#,RX6#,SX60,TX6#

L=100X200

 2
82817-22190

GX6#,LX60,MX60,RX6#,SX60,TX60..HT,SED

L=100X350

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22170

GX6#,MX6#,RX6#,SX60,TX6#

L=100X200

 2
82817-22190

GX6#,LX60,MX60,RX6#,SX60,TX60..HT,SED

L=100X350

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-22290

GX6#,LX6#,MX6#,RX6#,TX6#

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-22290

GX6#,LX6#,MX6#,RX6#,TX6#

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-22290

GX6#,LX6#,MX6#,RX6#,TX6#

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-22290

GX6#,LX6#,MX6#,RX6#,TX6#

 2
Common parts
90119-06005

ILLUST NO. 3 OF 5(8009- )

Click highlighted areas on diagram

diagram 82981 8298116010 8298122010 82982 8298222010 82983 82983 8298322010 8298322040 82984 8298422010 82987 8298722010
Part # Description Qty Price

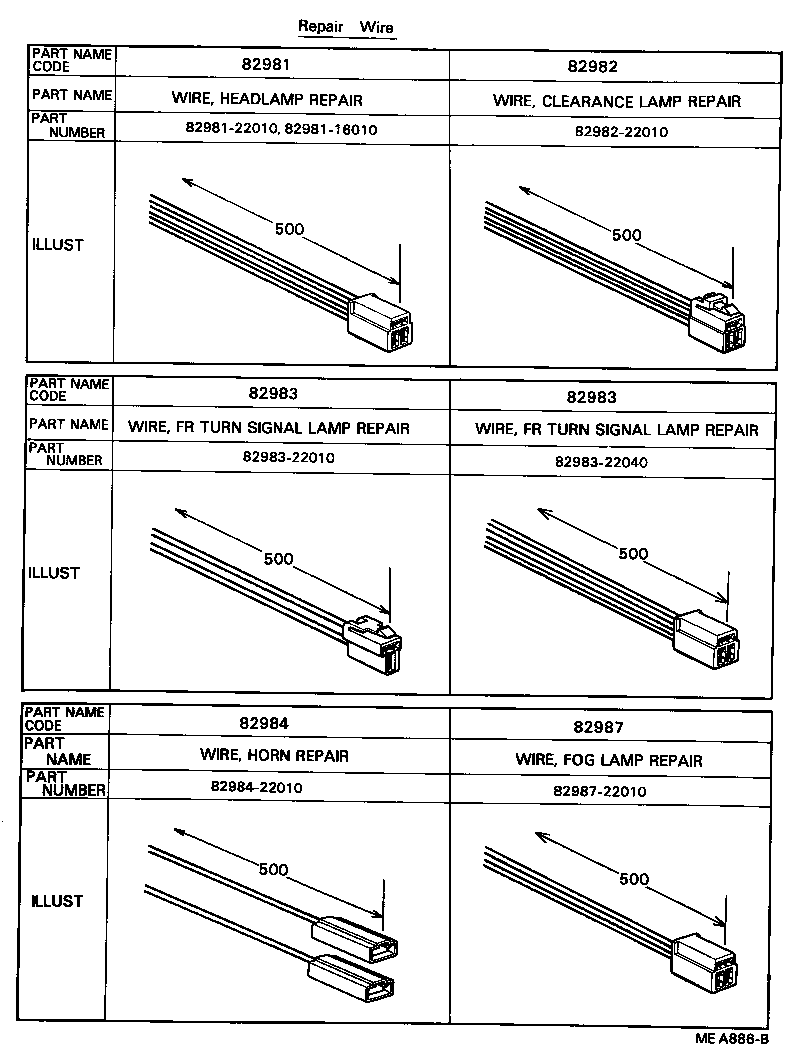

82981 - WIRE, HEADLAMP REPAIR
82981-22010

GX6#,LX6#,MX6#,RX6#,TX6#

 2
82982 - WIRE, CLEARANCE LAMP REPAIR
82982-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
82984 - WIRE, HORN REPAIR
82984-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
Common parts
82981-16010
82981-22010
82982-22010
82983-22010
82983-22040
82984-22010
82987-22010

ILLUST NO. 3 OF 5(8009- )

Click highlighted areas on diagram

diagram 82991 8299114010
Part # Description Qty Price

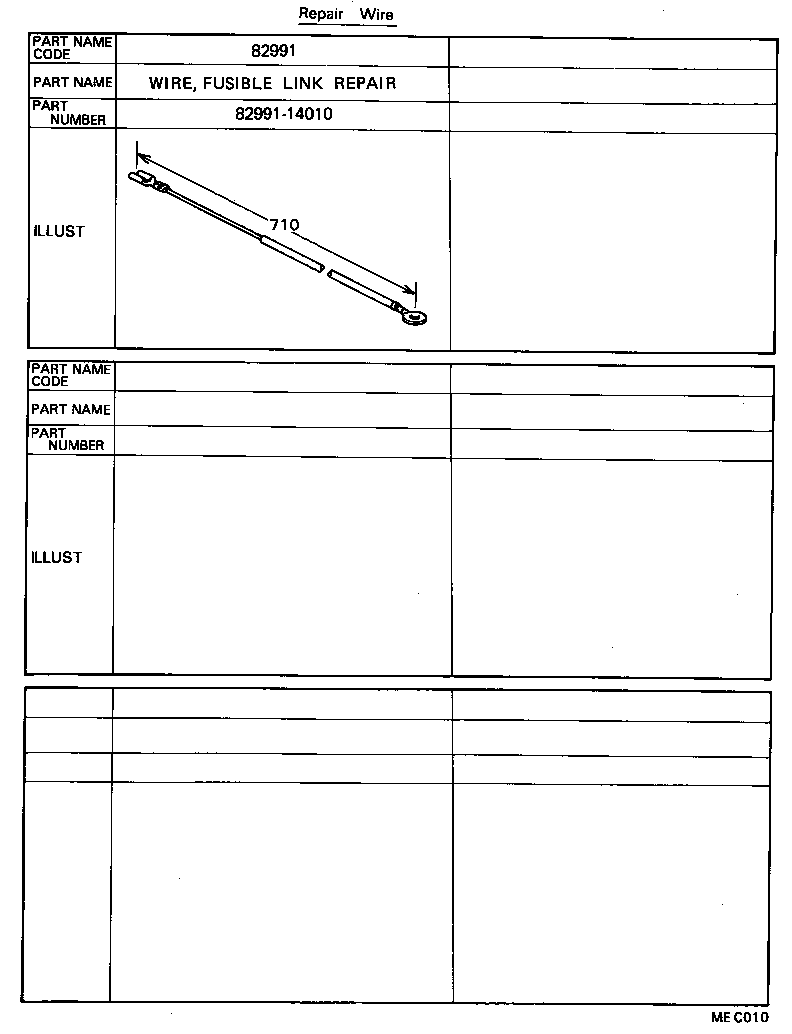

82991 - WIRE, FUSIBLE LINK REPAIR
82991-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
Common parts
82991-14010
