RX60-XTMNS (1980)
Toyota Mark 2
(8009- )HT

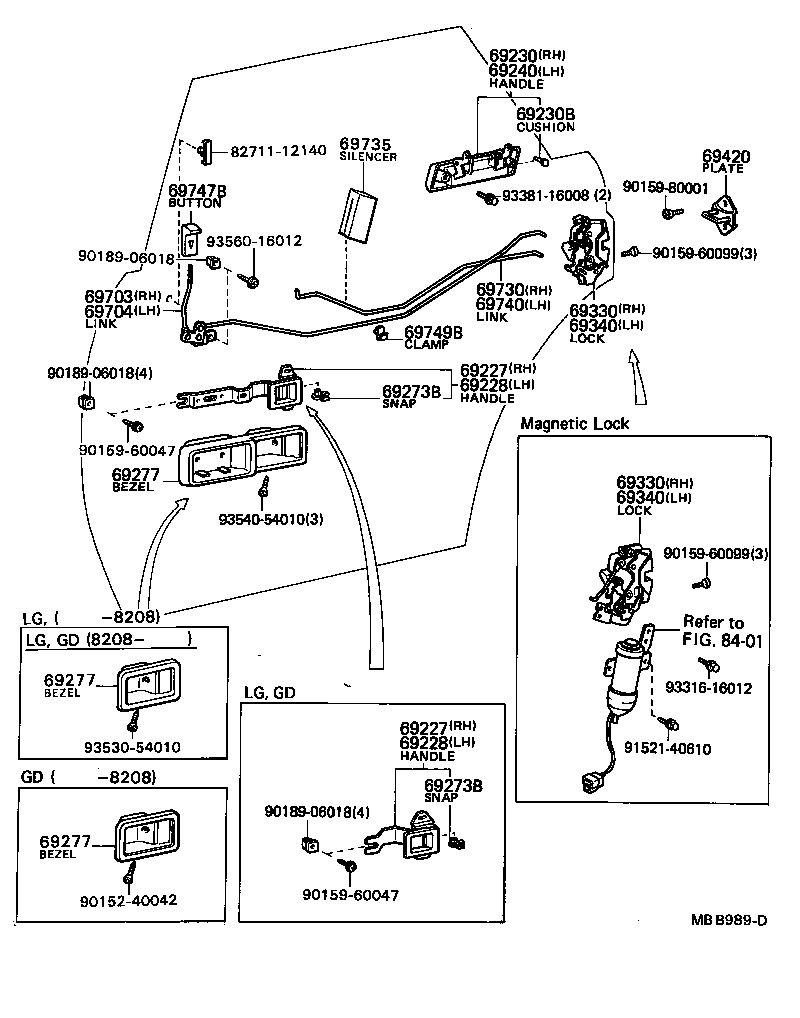

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69207-22030 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69207-22030 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69208-22030 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69208-22030 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-95800 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-95800 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69279-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LH |
1 | ||
| 69288-12010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# RH |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69279-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LH |
1 | ||
| 69288-12010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# RH |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT,STD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT,STD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201006 |
GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LGT LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69277-2204006 |
GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LGT RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT,STD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT,STD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201006 |
GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LGT LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69277-2204006 |
GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LGT RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT,STD RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT,STD LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201006 |
GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LGT LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69277-2204006 |
GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LGT RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LGT LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-95800 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-95800 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95800 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-95800 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LGT) |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-95800 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-95800 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-95800 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
1 | ||
| 69735 - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-95500 |
GX6#,MX63,RX6#,TX60..HT |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-95800 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-3002004 |
GX6#,LX6#,MX6#,RX6#,TX6# BLUE,BLUE,TRIM8# |
1 | ||
| 69741-3002001 |
GX6#,LX6#,MX6#,RX6#,TX6# BLACK,BLACK,TRIM2# |
1 | ||
| 69741-3002006 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT D-BROWN,BROWN,TRIM4# |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12030 |
GX6#,MX61,63,RX6#,SX60,TX60..HT |
2 | ||
| Common parts | ||||
| 82711-12140 | ||||
| 90152-40042 | ||||
| 90159-60047 | ||||
| 90159-60099 | ||||
| 90159-80001 | ||||
| 90189-06018 | ||||
| 91521-40610 | ||||
| 93316-16012 | ||||
| 93381-16008 | ||||
| 93530-54010 | ||||
| 93540-54010 | ||||
| 93560-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
