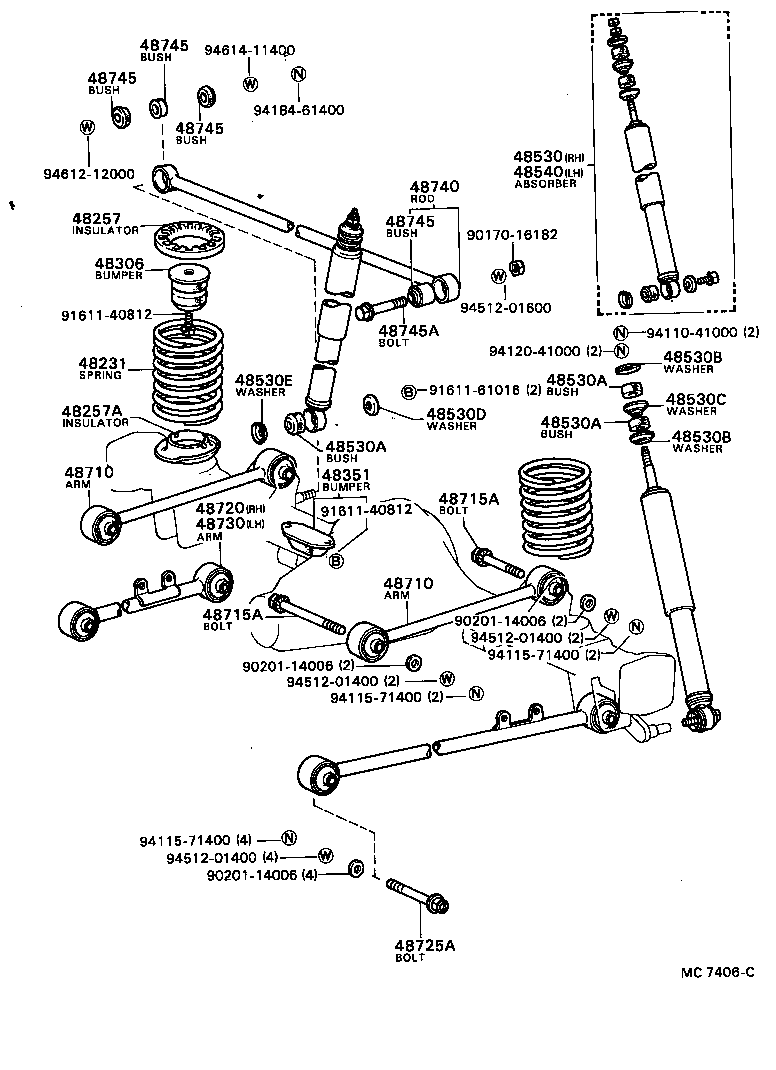

Toyota Mark 2 RX60 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48231 - SPRING, COIL, REAR
48231-22310	LX60,RX60	09/1980 - 08/1982	2
48257 - INSULATOR, REAR COIL SPRING
48257-22020	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED	09/1980 - 07/1984	2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-22010	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED	09/1980 - 07/1984	2
48306 - BUMPER SUB-ASSY, REAR SPRING
48341-22080	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED	09/1980 - 07/1984	2
48351 - BUMPER, DIFFERENTIAL CARRIER
48351-29015	GX60,LX6#,MX60,RX60,TX60	09/1980 - 08/1982	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-29695	GX60,LX60,MX60,RX60,TX60..HT,SED	09/1980 - 07/1984	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003	GX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V ABSORBER X BODY(UPR)	09/1980 - 07/1984	2
90385-16060	GX6#,LX6#,MX6#,RX6#,TX6# ABSORBER X AXLE HOUSING	09/1980 - 09/1981	2
90540-10004	GX6#,LX6#,MX6#,RX6#,SX60,TX6# ABSORBER X BODY(LWR)	09/1980 - 07/1984	2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003	GX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V ABSORBER X BODY(UPR)	09/1980 - 07/1984	2
90385-16060	GX6#,LX6#,MX6#,RX6#,TX6# ABSORBER X AXLE HOUSING	09/1980 - 09/1981	2
90540-10004	GX6#,LX6#,MX6#,RX6#,SX60,TX6# ABSORBER X BODY(LWR)	09/1980 - 07/1984	2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003	GX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V ABSORBER X BODY(UPR)	09/1980 - 07/1984	2
90385-16060	GX6#,LX6#,MX6#,RX6#,TX6# ABSORBER X AXLE HOUSING	09/1980 - 09/1981	2
90540-10004	GX6#,LX6#,MX6#,RX6#,SX60,TX6# ABSORBER X BODY(LWR)	09/1980 - 07/1984	2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002	GX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V	09/1980 - 07/1984	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002	GX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V	09/1980 - 07/1984	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02007	GX6#,LX6#,MX6#,RX6#,SX60,TX6#..HT,SED,V	09/1980 - 07/1984	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007	GX6#,LX6#,MX6#,RX6#,SX60,TX6#	09/1980 - 07/1984	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004	GX6#,LX6#,MX6#,RX6#,SX60,TX6#	09/1980 - 07/1984	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29695	GX60,LX60,MX60,RX60,TX60..HT,SED	09/1980 - 07/1984	1
48710 - ARM ASSY, UPPER CONTROL
48710-22160	LX60,RX60	09/1980 - 07/1984	2
48710 - ARM ASSY, UPPER CONTROL
48710-22160	LX60,RX60	09/1980 - 07/1984	2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-14008	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED BODY X CONTROL ARM	09/1980 - 07/1984	2
90105-14006	GX60,LX60,MX60,RX60,SX60,TX60 AXLE HOUSING X CONTROL ARM	09/1980 - 07/1984	2
48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM)
90105-14008	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED BODY X CONTROL ARM	09/1980 - 07/1984	2
90105-14006	GX60,LX60,MX60,RX60,SX60,TX60 AXLE HOUSING X CONTROL ARM	09/1980 - 07/1984	2
48720 - ARM ASSY, LOWER CONTROL, RH
48720-22060	LX60,RX60,SX60,TX60	09/1980 - 07/1984	1
48725A - BOLT(FOR LOWER CONTROL ARM)
90105-14007	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED	09/1980 - 07/1984	4
48730 - ARM ASSY, LOWER CONTROL, LH
48720-22060	LX60,RX60,SX60,TX60	09/1980 - 07/1984	1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-22050	LX60,RX60	09/1980 - 07/1984	1
48745 - BUSH, LATERAL CONTROL ROD
48706-22010	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED BODY SIDE	09/1980 - 07/1984	1
90385-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=15,HOUSING SIDE	09/1980 - 07/1984	2
90386-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=12,HOUSING SIDE	09/1980 - 07/1984	1
48745 - BUSH, LATERAL CONTROL ROD
48706-22010	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED BODY SIDE	09/1980 - 07/1984	1
90385-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=15,HOUSING SIDE	09/1980 - 07/1984	2
90386-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=12,HOUSING SIDE	09/1980 - 07/1984	1
48745 - BUSH, LATERAL CONTROL ROD
48706-22010	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED BODY SIDE	09/1980 - 07/1984	1
90385-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=15,HOUSING SIDE	09/1980 - 07/1984	2
90386-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=12,HOUSING SIDE	09/1980 - 07/1984	1
48745 - BUSH, LATERAL CONTROL ROD
48706-22010	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED BODY SIDE	09/1980 - 07/1984	1
90385-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=15,HOUSING SIDE	09/1980 - 07/1984	2
90386-20001	GX60,LX60,MX60,RX60,SX60,TX60 L=12,HOUSING SIDE	09/1980 - 07/1984	1
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-16006	GX60,LX60,MX60,RX60,SX60,TX60..HT,SED	09/1980 - 07/1984	1
Common parts
90170-16182
90201-14006
91611-40812
91611-61016
94110-41000
94115-71400
94120-41000
94184-61400
94512-01400
94512-01600
94612-12000
94614-11400

RX60-XTMNS (1980)

(8009- )GX60,LX60,MX60,RX60,SX60,TX60..HT,SED
