RX60-XTKNS (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

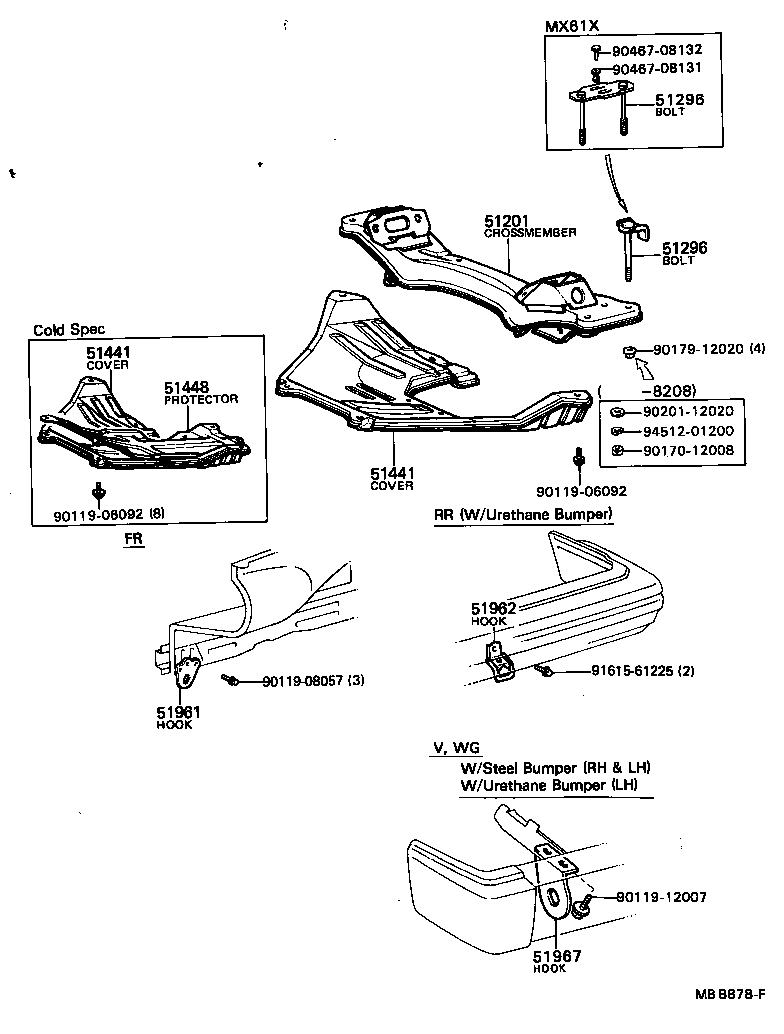

ILLUST NO. 1 OF 2(8009- )

Click highlighted areas on diagram

diagram 51201 51296 51296 51441 51441 51448 51961 51962 51967 9011906092 9011906092 9011908057 9011912007 9017012008 9017912020 9020112020 9046708131 9046708132 9161561225 9451201200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-22160

RX6#

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-22011

GX6#,LX6#,MX60,63,RX6#,SX60,TX6#

 4
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-22011

GX6#,LX6#,MX60,63,RX6#,SX60,TX6#

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-22090

LX6#,RX6#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-22090

LX6#,RX6#

 1
51961 - HOOK, NO.1
51963-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
51962 - HOOK, NO.2
51095-22020

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED

W/URETHANE BUMPER

 2
Common parts
90119-06092
90119-08057
90119-12007
90170-12008
90179-12020
90201-12020
90467-08131
90467-08132
91615-61225
94512-01200
