RX60-XEPNS (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )ATM..CBR,DSL,EFI,LPG,TBO,TDE

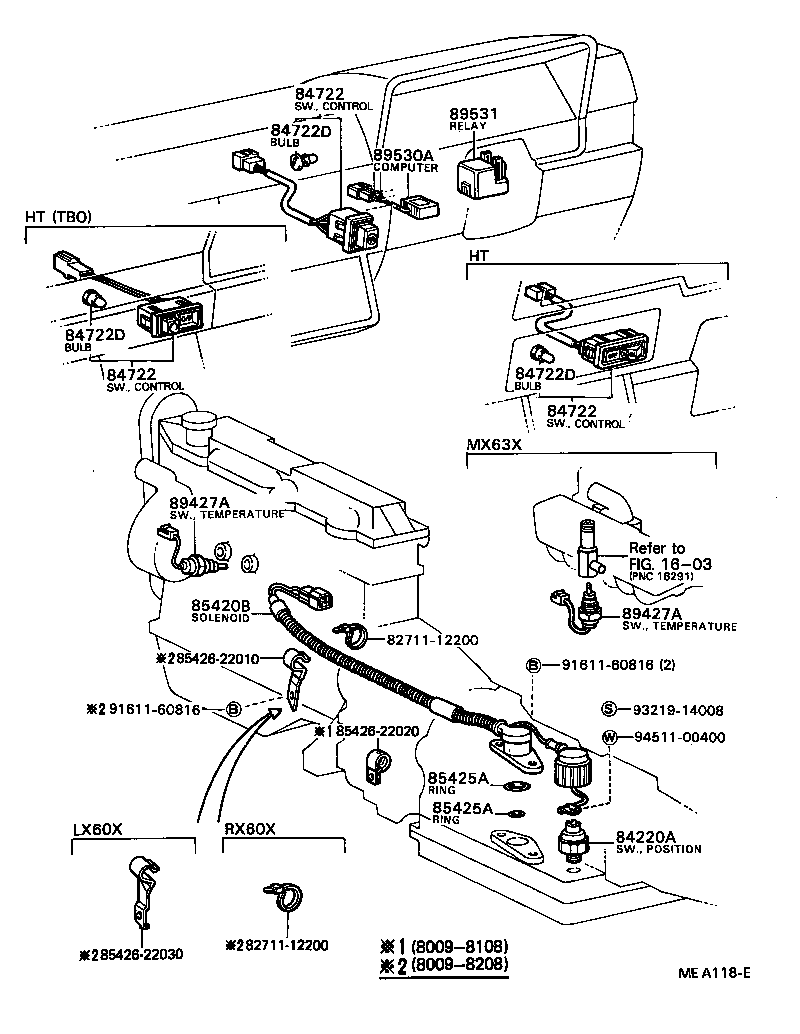

Click highlighted areas on diagram

diagram 1603 8271112200 8271112200 84220A 84722 84722 84722 84722D 84722D 84722D 85420B 85425A 85425A 8542622010 8542622020 8542622030 89427A 89427A 89530A 89531 9161160816 9161160816 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

GX6#,LX60,65,MX61,63,RX60,SX60..ATM..(CBR,DSL,EFI,TBO,TDE)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20020

GX6#,LX60,65,MX63,RX60,SX60..(SED,WG)..ATM..(CBR,DSL,EFI,TDE)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20020

GX6#,LX60,65,MX63,RX60,SX60..(SED,WG)..ATM..(CBR,DSL,EFI,TDE)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20020

GX6#,LX60,65,MX63,RX60,SX60..(SED,WG)..ATM..(CBR,DSL,EFI,TDE)

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX6#,MX61,63,RX60,SX60..ATM..(CBR,EFI,TBO)

12V 1.4W,12V 1.4W

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX6#,MX61,63,RX60,SX60..ATM..(CBR,EFI,TBO)

12V 1.4W,12V 1.4W

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX6#,MX61,63,RX60,SX60..ATM..(CBR,EFI,TBO)

12V 1.4W,12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

GX6#,LX60,65,MX61,63,RX60,SX60..ATM..(CBR,DSL,EFI,TBO,TDE)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

GX6#,LX60,65,MX61,63,RX60,SX60..ATM..(CBR,DSL,EFI,TBO,TDE)

ID=23

 1
90301-11001

GX6#,LX60,65,MX61,63,RX60,SX60..ATM..(CBR,DSL,EFI,TBO,TDE)

ID=11

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

GX6#,LX60,65,MX61,63,RX60,SX60..ATM..(CBR,DSL,EFI,TBO,TDE)

ID=23

 1
90301-11001

GX6#,LX60,65,MX61,63,RX60,SX60..ATM..(CBR,DSL,EFI,TBO,TDE)

ID=11

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-22030

GX6#,MX63,RX60,SX60..ATM..(CBR,EFI)

 1
Common parts
82711-12200
85426-22010
85426-22020
85426-22030
91611-60816
93219-14008
94511-00400
Linked diagrams
1603
