RX60-XEPES (1980)
Toyota Mark 2
ILLUST NO. 1 OF 3(8009-8208)SED,V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 99132-12034 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
20 | ||
| 99132-12034 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 12V 3.4W,12V 3.4W |
9 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 13-POLE |
2 | ||
| 90980-08208 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 7-POLE |
1 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 13-POLE |
2 | ||
| 90980-08208 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 7-POLE |
1 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 13-POLE |
2 | ||
| 90980-08208 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..CBR,DSL,EFI,LPG,TBO,TDE 7-POLE |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-2A130 |
GX60,RX60..(SED,WG)..(GR,LE) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) 12V 3.4W |
9 | ||
| 83101-14040 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.4W |
20 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) 12V 3.4W |
9 | ||
| 83101-14040 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 1.4W |
20 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-2A060 |
GX60,RX60..(SED,WG)..(GR,LE) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-2A100 |
GX60,RX60..(SED,WG)..(GR,LE) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22560 |
GX60,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-2A010 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A020 |
GX60,RX60..(SED,WG)..(GR,LE) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2A030 |
GX60,RX60,TX6#..(SED,V,WG)..(GL,GR,LE) |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22110 |
RX60,TX6#..(SED,V)..(GL,GR) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2A010 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-2A010 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2A010 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2A010 |
GX60,LX6#,MX60,RX60,TX6#..(SED,V,WG)..(DLX,GL,GR,LE,STD) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,63,RX6#..(SED,WG)..(GD,GR,GT,LE,LG,LGT) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,63,RX6#..(SED,WG)..(GD,GR,GT,LE,LG,LGT) DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX6#,MX61,63,RX6#..(SED,WG)..(GD,GR,GT,LE,LG,LGT) DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT DIGITAL |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| Linked diagrams | ||||
| 8302 | ||||

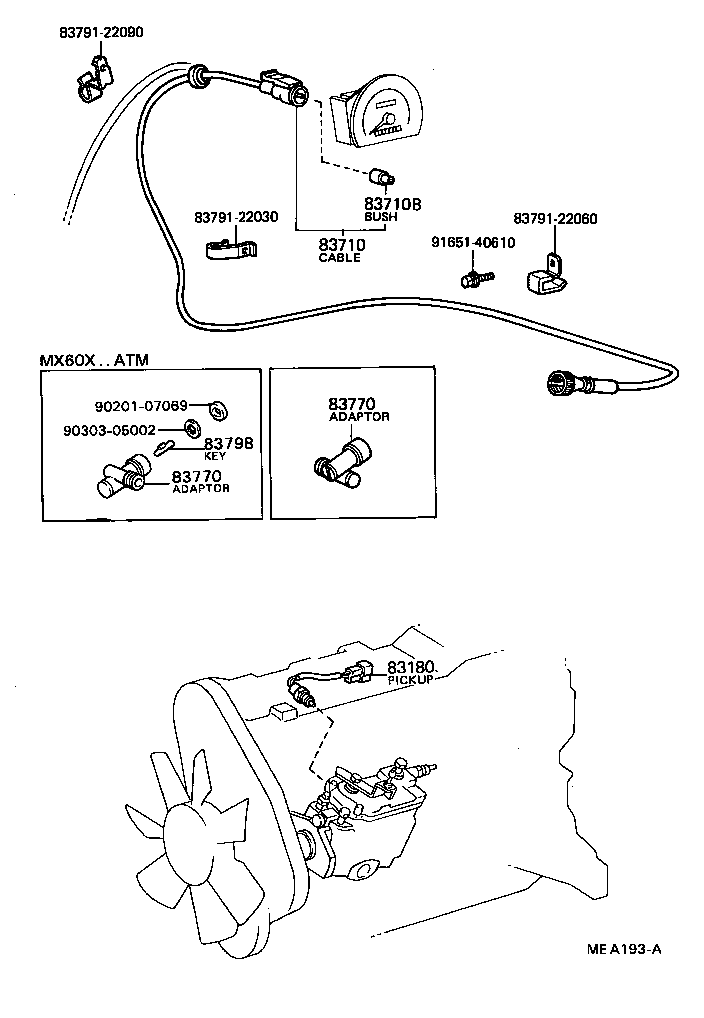

ILLUST NO. 3 OF 3(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22510 |
RX60..4FC |
1 | ||
| 83710B - BUSH, SPEEDOMETER DRIVE CABLE | ||||
| 90389-02001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22060 |
GX6#,LX60,65,MX61,63,RX60,SX60..ATM |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22060 |
GX6#,LX60,65,MX61,63,RX60,SX60..ATM |
1 | ||
| Common parts | ||||
| 83791-22030 | ||||
| 83791-22060 | ||||
| 83791-22090 | ||||
| 90201-07069 | ||||
| 90303-05002 | ||||
| 91651-40610 | ||||
ILLUST NO. 2 OF 3(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20280 | ||||
| 83161-20300 | ||||
| 83161-20320 | ||||
| 83161-20340 | ||||
| 83161-20380 | ||||
| 83161-20500 | ||||
| 83165-20020 | ||||
| 88161-20260 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00938 | ||||
| 93315-13008 | ||||
| 93315-13010 | ||||
| 93315-13016 | ||||
| 93315-14014 | ||||
| 93315-14036 | ||||
| 93510-13514 | ||||
| 93540-14012 | ||||
| 93540-14025 | ||||
| 94115-40400 | ||||
