RX60-XEPES (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

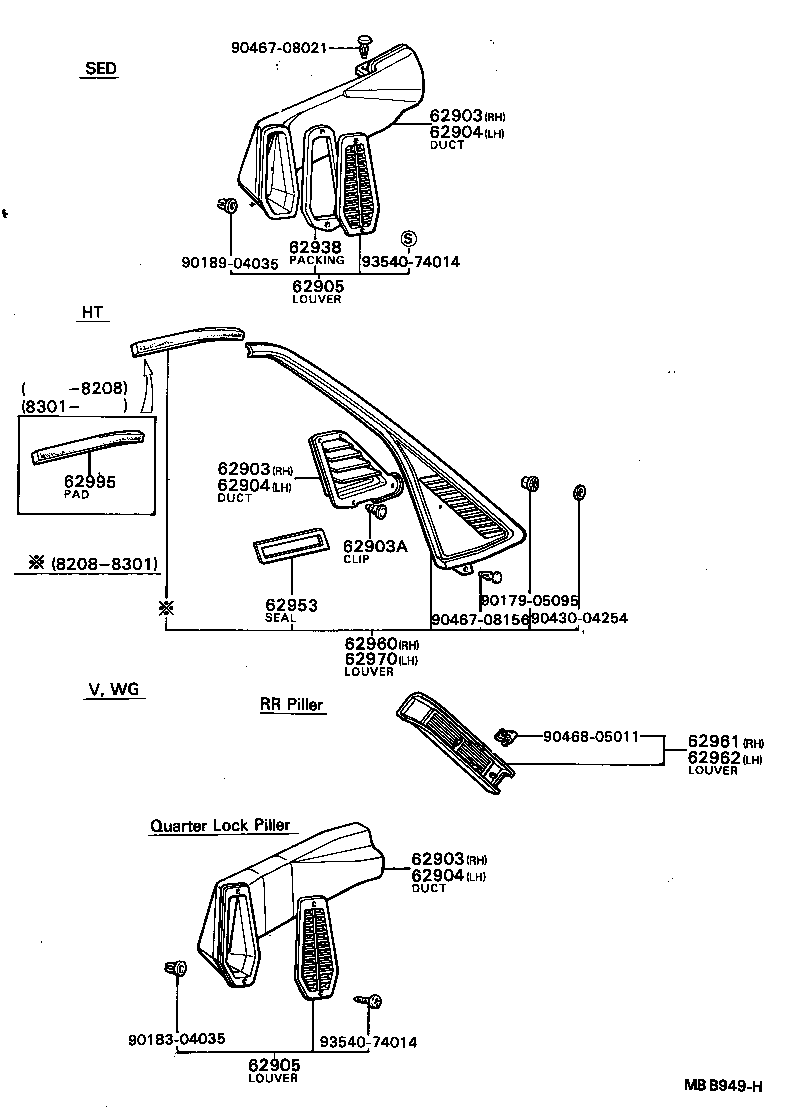

Click highlighted areas on diagram

diagram 62903 62903 62903 62903A 62904 62904 62904 62905 62905 62938 62953 62960 62961 62962 62970 62995 9017905095 9018304035 9018904035 9043004254 9046708021 9046708156 9046805011 9354074014 9354074014
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62931-22050

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 1
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62931-22050

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 1
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62931-22050

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62932-22040

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62932-22040

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62932-22040

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 1
62905 - LOUVER, QUARTER VENTILATION
62951-29145

GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG

 2
62905 - LOUVER, QUARTER VENTILATION
62951-29145

GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG

 2
62938 - PACKING,QUARTER VENT DUCT
62937-22030

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED

 2
Common parts
90179-05095
90183-04035
90189-04035
90430-04254
90467-08021
90467-08156
90468-05011
93540-74014
