RX60-XEPES (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

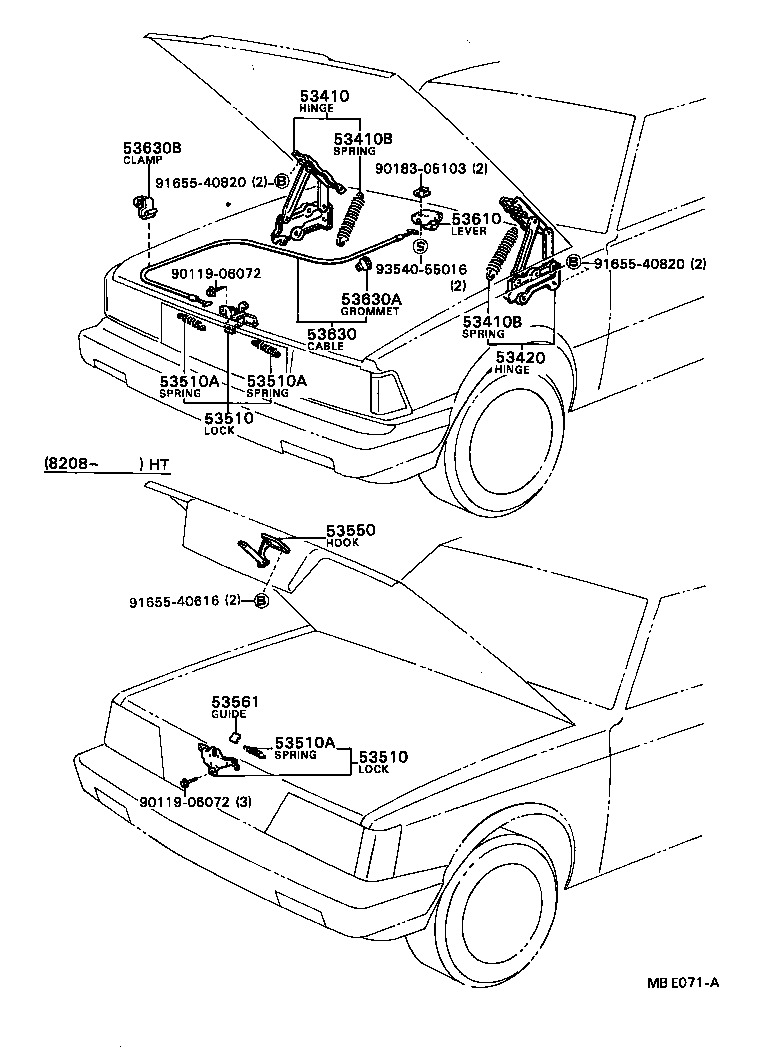

Click highlighted areas on diagram

diagram 53410 53410B 53410B 53420 53510 53510 53510A 53510A 53510A 53550 53561 53610 53630 53630A 53630B 9011906072 9011906072 9018305103 9165540616 9165540820 9165540820 9354055016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-22040

GX6#,LX6#,MX6#,RX6#,TX6#

 1
53410B - SPRING, TENSION(FOR HOOD HINGE)
90506-58003

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
53410B - SPRING, TENSION(FOR HOOD HINGE)
90506-58003

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
53420 - HINGE ASSY, HOOD, LH
53420-22040

GX6#,LX6#,MX6#,RX6#,TX6#

 1
53510 - LOCK ASSY, HOOD
53510-22110

GX6#,LX6#,MX6#,RX6#,TX6#

 1
53510 - LOCK ASSY, HOOD
53510-22110

GX6#,LX6#,MX6#,RX6#,TX6#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

GX6#,LX6#,MX6#,RX6#,TX6#

線径=2.0,ｺｲﾙ巻数=17,CW=17,WD=2.0

 1
90506-09008

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

GX6#,LX6#,MX6#,RX6#,TX6#

線径=2.0,ｺｲﾙ巻数=17,CW=17,WD=2.0

 1
90506-09008

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

GX6#,LX6#,MX6#,RX6#,TX6#

線径=2.0,ｺｲﾙ巻数=17,CW=17,WD=2.0

 1
90506-09008

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-3003001

GX6#,LX6#,MX6#,RX6#,TX6#

BLACK,BLACK,TRIM2#

 1
53601-3003004

GX6#,LX6#,MX6#,RX6#,TX6#

BLUE,BLUE,TRIM8#

 1
53601-3003006

GX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)

D-BROWN,BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22070

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
90480-15194

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
Common parts
90119-06072
90183-05103
91655-40616
91655-40820
93540-55016
