RX60-XEPES (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8009- )ATM

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

GX6#,LX60,MX6#,RX60,TX6#..ATM

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

GX6#,LX60,MX6#,RX60,TX6#..ATM

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03004

GX6#,LX60,MX6#,RX60,TX6#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35557 - PAWL, PARKING LOCK
35557-22010

GX6#,MX60,RX60,TX6#..ATM

A40,A40D

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35585 - ROD, PARKING LOCK
35501-22020

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-16010

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

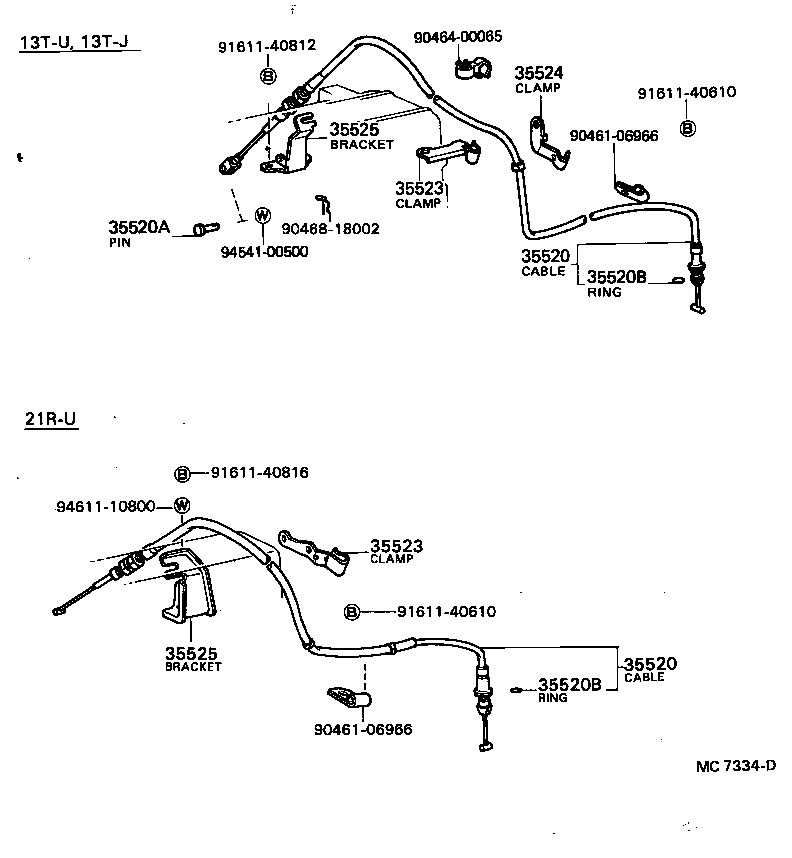

ILLUST NO. 2 OF 2(8009- )RX60,TX6#..ATM

Click highlighted areas on diagram

diagram 35520 35520 35520A 35520B 35520B 35523 35523 35524 35525 35525 9046106966 9046106966 9046400065 9046818002 9161140610 9161140610 9161140812 9161140816 9454100500 9461110800
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-22050

RX60..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-22050

RX60..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

GX6#,LX60,65,MX6#,RX60,SX60,TX6#..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-20021

RX60..4FC

 1
35523 - CLAMP, THROTTLE CABLE
35523-20021

RX60..4FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20070

RX60..4FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20070

RX60..4FC

 1
Common parts
90461-06966
90464-00065
90468-18002
91611-40610
91611-40812
91611-40816
94541-00500
94611-10800
