RX60-XEPES (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)21RU

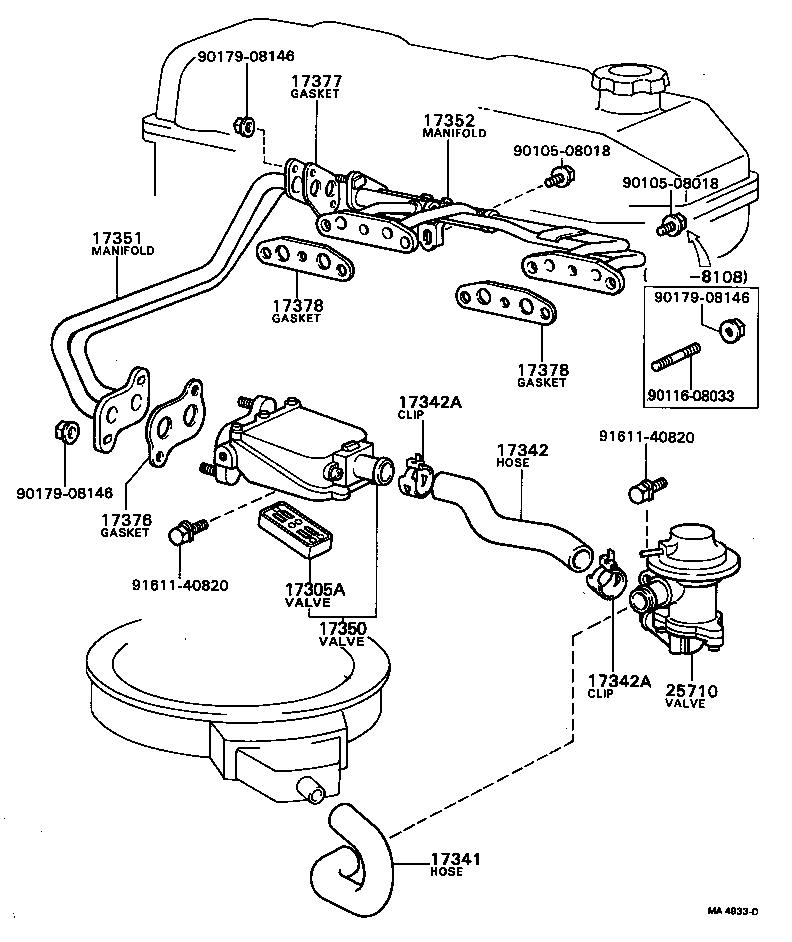

Click highlighted areas on diagram

diagram 17305A 17341 17342 17342A 17342A 17350 17351 17352 17376 17377 17378 17378 25710 9010508018 9010508018 9011608033 9017908146 9017908146 9017908146 9161140820 9161140820
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-37010

21RU..RX60

 2
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-37040

21RU..RX60

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35020

21RU..RX60

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-31002

21RU..RX60

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-31002

21RU..RX60

 2
17350 - VALVE ASSY, REED
17350-37010

21RU..RX60

 1
17351 - MANIFOLD, AIR INJECTION
17351-37010

21RU..RX60

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-37010

21RU..RX60

 1
17376 - GASKET, AIR TUBE, NO.1
17376-37010

21RU..RX60

 1
17377 - GASKET, AIR TUBE, NO.2
17377-37010

21RU..RX60

 1
17378 - GASKET AIR TUBE, NO.3
17378-37010

21RU..RX60

 2
17378 - GASKET AIR TUBE, NO.3
17378-37010

21RU..RX60

 2
25710 - VALVE ASSY, AIR SWITCHING
25740-37030

21RU..RX60

 1
Common parts
90105-08018
90116-08033
90179-08146
91611-40820
