RX60-XEPES (1980)
Toyota Mark 2
Production
Sep 1980
-
Aug 1982
Engine
21RU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)21RU

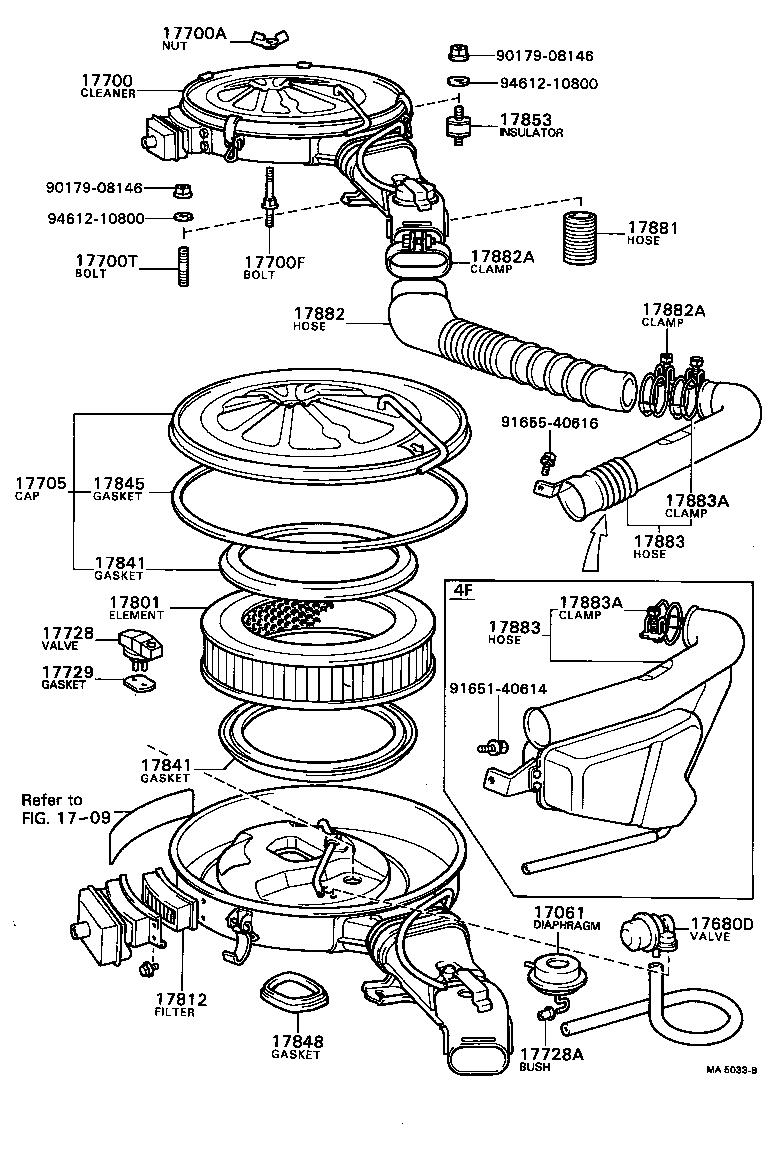

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-37010 |
21RU..RX60 |
1 | ||
| 17680D - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-35010 |
21RU..RX60 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37040 |
21RU..RX60 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
21RU..RX60 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
21RU..RX60 |
1 | ||
| 17700T - BOLT, STUD(FOR AIR CLEANER) | ||||
| 90116-08033 |
21RU..RX60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-37030 |
21RU..RX60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24010 |
21RU..RX60 |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
21RU..RX60 |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
21RU..RX60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41090 |
21RU..RX60 |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-37010 |
21RU..RX60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
21RU..RX60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
21RU..RX60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-35010 |
21RU..RX60 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
21RU..RX60 |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
21RU..RX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
21RU..RX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34120 |
21RU..RX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21RU..RX60 AIR CLEANER SIDE |
1 | ||
| 90460-65001 |
21RU..RX60 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21RU..RX60 AIR CLEANER SIDE |
1 | ||
| 90460-65001 |
21RU..RX60 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-54010 |
21RU..RX60..4F |
1 | ||
| 17883-25010 |
21RU..RX60..4FC,5F |
1 | ||
| 17883-54010 |
21RU..RX60..4F |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-54010 |
21RU..RX60..4F |
1 | ||
| 17883-25010 |
21RU..RX60..4FC,5F |
1 | ||
| 17883-54010 |
21RU..RX60..4F |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
21RU..RX60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
21RU..RX60 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1709 | ||||
