RX60-XEPES (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)21RU

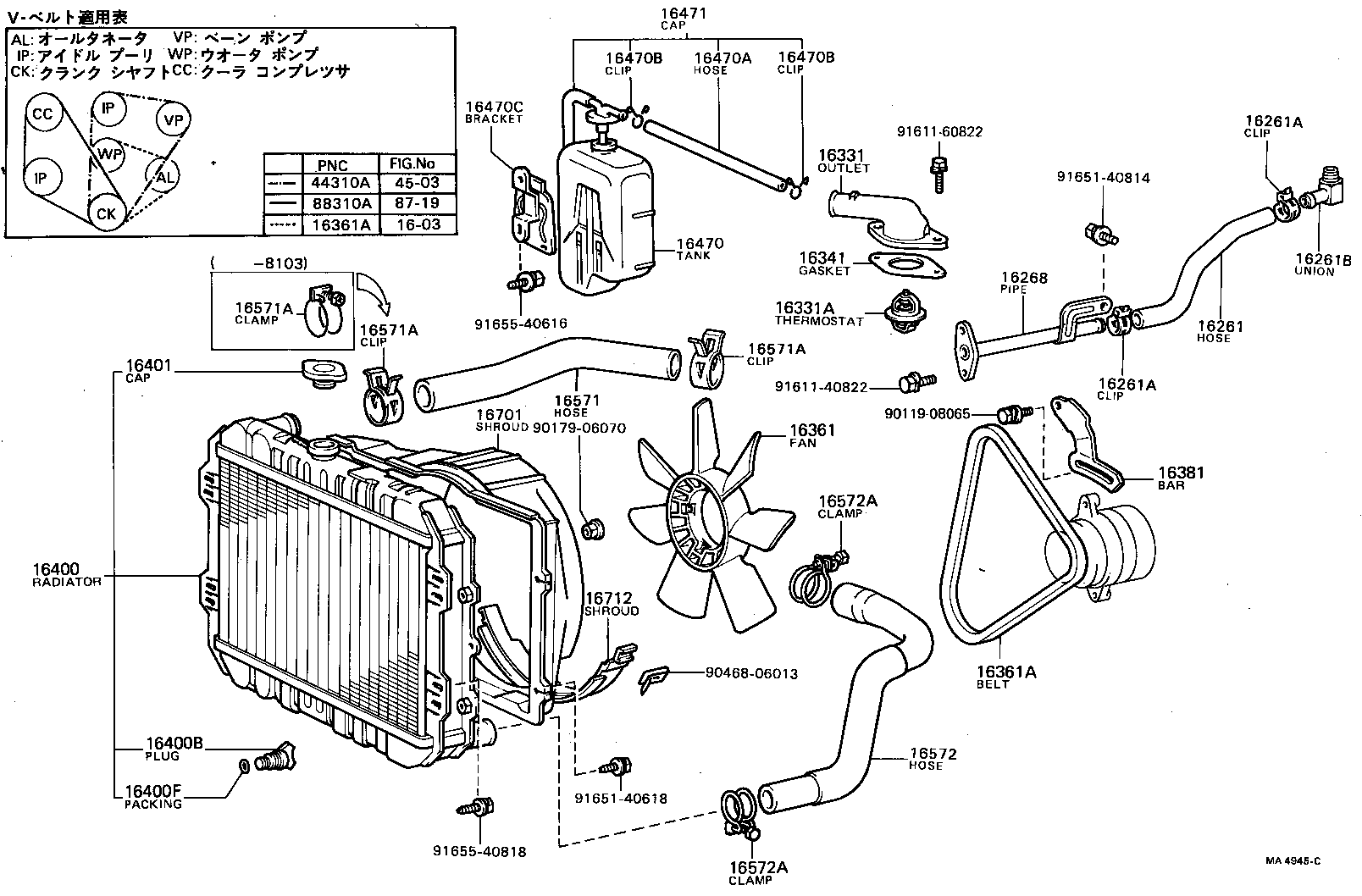

Click highlighted areas on diagram

diagram 1603 16261 16261A 16261A 16261B 16268 16331 16331A 16341 16361 16361A 16361A 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470C 16471 16571 16571A 16571A 16571A 16572 16572A 16572A 16701 16712 44310A 4503 8719 88310A 9011908065 9017906070 9046806013 9161140822 9161160822 9165140618 9165140814 9165540616 9165540818
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-35010

21RU..RX60

 1
16261-35040

21RU..RX60

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20004

21RU..RX60

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20004

21RU..RX60

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90407-14002

21RU..RX60

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-35010

21RU..RX60

 1
16331 - OUTLET, WATER
16331-37030

21RU..RX60

 1
16331A - THERMOSTAT
90916-03034

21RU..RX60

*WAX 82-95,FUJI-THOMSON

 1
90916-03036

21RU,18RGEU..RX6#

*WAX 88-100,FUJI-THOMSON

 1
16341 - GASKET, WATER OUTLET
16341-38020

21RU..RX60

 1
16361 - FAN
16361-38010

21RU..RX60

7 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

21RU..RX60

L=880

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

21RU..RX60

L=880

 1
16381 - BAR, FAN BELT ADJUSTING
16381-38020

21RU..RX60

 1
16400 - RADIATOR ASSY
16400-37050

21RU..RX60..4FC

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

21RU,18RGEU..RX6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

21RU,18RGEU..RX6#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

21RU,18RGEU..RX6#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-70010

21RU..RX60

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12063

21RU,18RGEU..RX6#

*H,L=300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21RU,18RGEU..RX6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21RU,18RGEU..RX6#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-18010

21RU,18RGEU..RX6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-18010

21RU,18RGEU..RX6#

 1
16571 - HOSE, RADIATOR, INLET
16571-37040

21RU..RX60

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
96111-10430

21RU..RX60

RADIATOR SIDE

 1
90467-37001

21RU,18RGEU..RX6#

WATER OUTLET SIDE

 1
90467-37001

21RU..RX60

 2
90467-37001

21RU..RX60

WATER OUTLET SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
96111-10430

21RU..RX60

RADIATOR SIDE

 1
90467-37001

21RU,18RGEU..RX6#

WATER OUTLET SIDE

 1
90467-37001

21RU..RX60

 2
90467-37001

21RU..RX60

WATER OUTLET SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10430

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
96111-10430

21RU..RX60

RADIATOR SIDE

 1
90467-37001

21RU,18RGEU..RX6#

WATER OUTLET SIDE

 1
90467-37001

21RU..RX60

 2
90467-37001

21RU..RX60

WATER OUTLET SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-37030

21RU..RX60

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10480

21RU..RX60

WATER PUMP SIDE,ID=48

 1
96111-10460

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10480

21RU..RX60

WATER PUMP SIDE,ID=48

 1
96111-10460

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-34100

21RU,18RGEU..RX6#

 1
16712 - SHROUD, FAN, NO.2
16712-34070

21RU,18RGEU..RX6#

W/COOLER

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51135

RX60

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00890

RX60

 1
99322-00890

RX60

 1
Common parts
90119-08065
90179-06070
90468-06013
91611-40822
91611-60822
91651-40618
91651-40814
91655-40616
91655-40818
