MX83-ATPZF (1989)

Toyota Mark 2

Production Aug 1989 - Oct 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)JZX81 ; (8808-9302)GX81,MX83..SPC,TWC

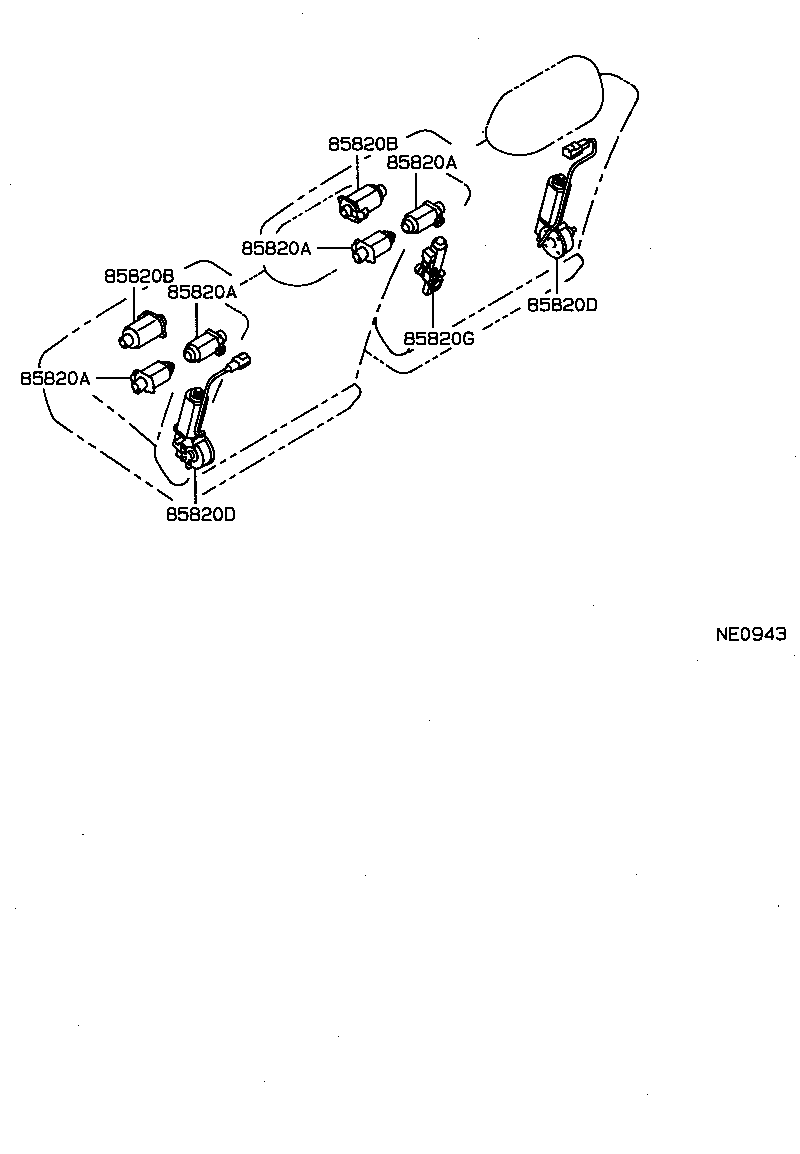

Click highlighted areas on diagram

diagram 85820A 85820A 85820A 85820A 85820B 85820B 85820D 85820D 85820G
Part # Description Qty Price
85820D - MOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)
85820-22060

GX81,MX83..SPC,TWC

右側

 1
85820-22070

MX83

左側

 1
85820D - MOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)
85820-22060

GX81,MX83..SPC,TWC

右側

 1
85820-22070

MX83

左側

 1
85820G - MOTOR ASSY, POWER SEAT
85820-30180

GX81,JZX81,MX83..GD,GDG

 1
