MX83-AEPZF (1989)
Toyota Mark 2
Production
Aug 1989
-
Feb 1993
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8908-9302)7MGE

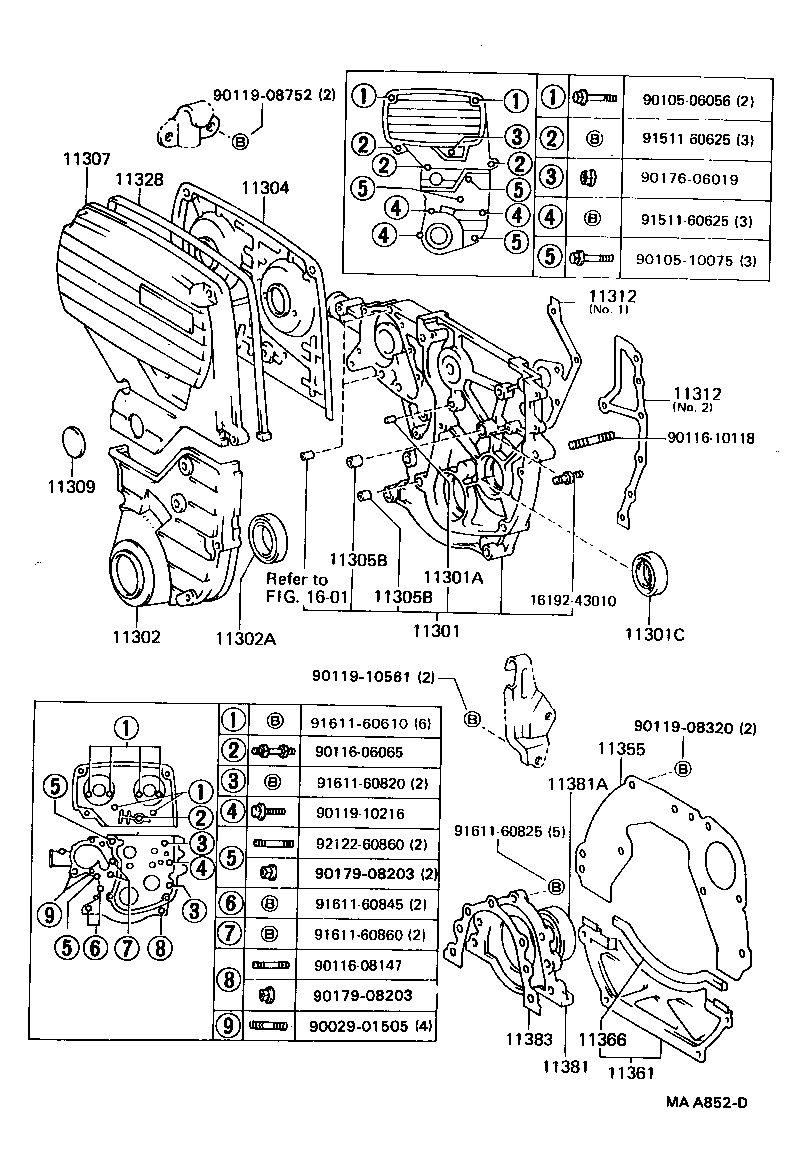

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-42010 |
7MGE..MX83 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08074 |
7MGE..MX83 長さ=15,外径=8 |
1 | ||
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-42003 |
7MGE..MX83 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-42020 |
7MGE..MX83 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-52003 |
7MGE..MX83 |
1 | ||
| 90311-52003 |
7MGE..MX83 NOK |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11322-42010 |
7MGE..MX83 |
1 | ||
| 11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90253-11001 |
7MGE..MX83 |
1 | ||
| 90253-13013 |
7MGE..MX83 |
1 | ||
| 11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90253-11001 |
7MGE..MX83 |
1 | ||
| 90253-13013 |
7MGE..MX83 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-42010 |
7MGE..MX83 |
1 | ||
| 11309 - COVER SUB-ASSY, TIMING BELT, NO.4 | ||||
| 11325-42010 |
7MGE..MX83 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11313-42010 |
7MGE..MX83 NO.2 |
1 | ||
| 11313-42020 |
7MGE..MX83 NO.2 |
1 | ||
| 11312-43010 |
7MGE..MX83 NO.1 |
1 | ||
| 11312-42010 |
7MGE..MX83 NO.1 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11313-42010 |
7MGE..MX83 NO.2 |
1 | ||
| 11313-42020 |
7MGE..MX83 NO.2 |
1 | ||
| 11312-43010 |
7MGE..MX83 NO.1 |
1 | ||
| 11312-42010 |
7MGE..MX83 NO.1 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-42010 |
7MGE..MX83 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-41010 |
7MGE..MX83 |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-45010 |
7MGE..MX83 |
1 | ||
| 11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST | ||||
| 31131-30010 |
7MGE..MX83 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-43010 |
7MGE..MX83 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-80001 |
7MGE..MX83 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-41010 |
7MGE..MX83 |
1 | ||
| Common parts | ||||
| 16192-43010 | ||||
| 90029-01505 | ||||
| 90105-06056 | ||||
| 90105-10075 | ||||
| 90116-06065 | ||||
| 90116-08147 | ||||
| 90116-10118 | ||||
| 90119-08320 | ||||
| 90119-08752 | ||||
| 90119-10216 | ||||
| 90119-10561 | ||||
| 90176-06019 | ||||
| 90179-08203 | ||||
| 91511-60625 | ||||
| 91611-60610 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60845 | ||||
| 91611-60860 | ||||
| 92122-60860 | ||||
| Linked diagrams | ||||
| 1601 | ||||
