MX71-XTPGT (1984)

Toyota Mark 2

Production Aug 1984 - Oct 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

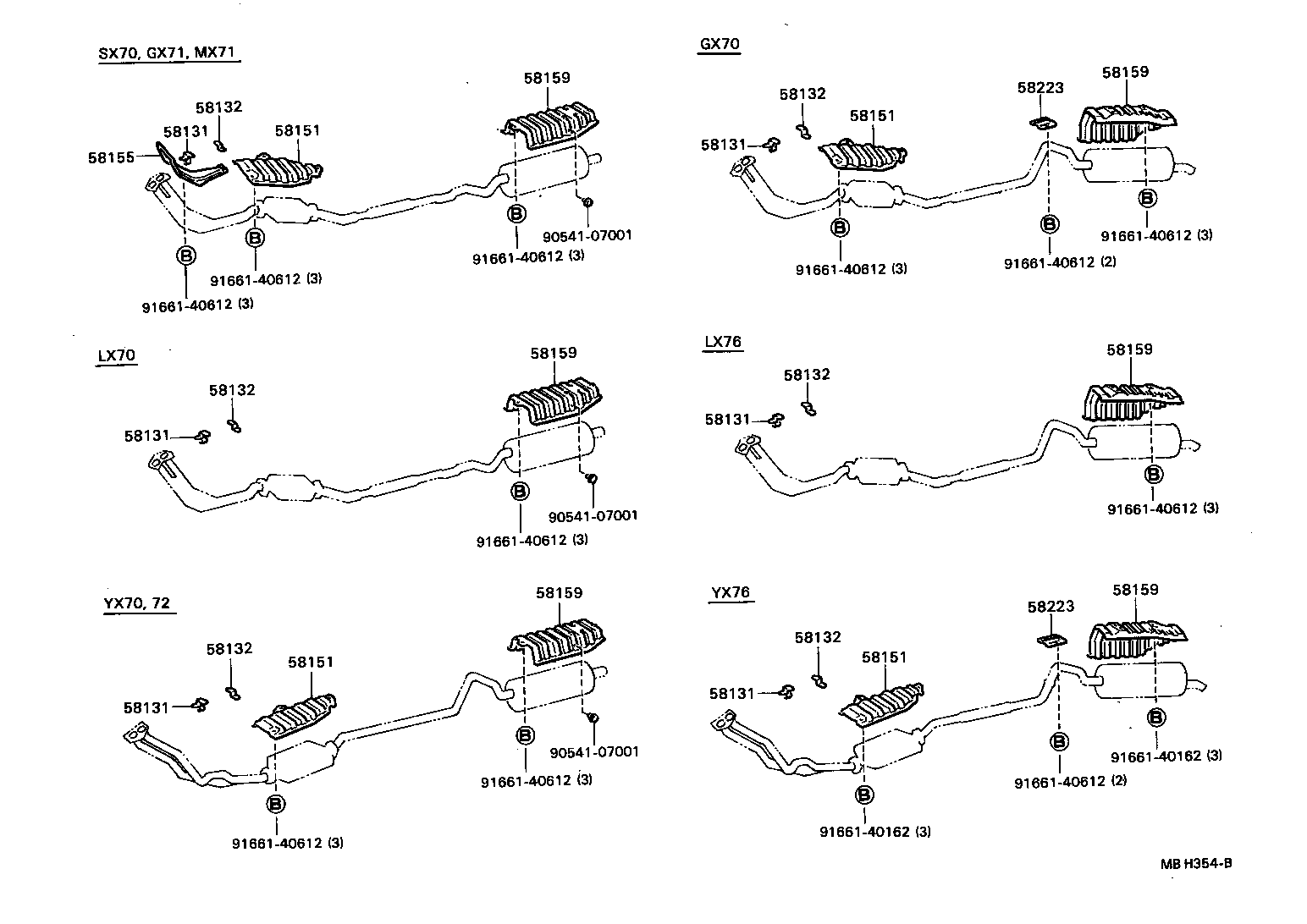

Click highlighted areas on diagram

diagram 58131 58131 58131 58131 58131 58131 58132 58132 58132 58132 58132 58132 58151 58151 58151 58151 58155 58159 58159 58159 58159 58159 58159 58223 58223 9054107001 9054107001 9054107001 9166140162 9166140162 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612
Part # Description Qty Price
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-22030

GX7#,LX7#,MX71,SX70,YX7#

 1
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22030

GX7#,LX7#,MX71,SX70,YX7#

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22030

GX7#,LX7#,MX71,SX70,YX7#

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22030

GX7#,LX7#,MX71,SX70,YX7#

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22030

GX7#,LX7#,MX71,SX70,YX7#

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22030

GX7#,LX7#,MX71,SX70,YX7#

 2
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22030

GX7#,LX7#,MX71,SX70,YX7#

 2
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22050

GX7#,MX71,SX70

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22050

GX7#,MX71,SX70

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22050

GX7#,MX71,SX70

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22050

GX7#,MX71,SX70

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-22050

GX71,LX70,MX71,SX70,YX70,72

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-22050

GX71,LX70,MX71,SX70,YX70,72

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-22050

GX71,LX70,MX71,SX70,YX70,72

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-22050

GX71,LX70,MX71,SX70,YX70,72

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-22050

GX71,LX70,MX71,SX70,YX70,72

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-22050

GX71,LX70,MX71,SX70,YX70,72

 1
Common parts
90541-07001
91661-40162
91661-40612
