MX71-XTPGT (1984)
Toyota Mark 2
ILLUST NO. 3 OF 3(8408- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-41380 |
MTEU..MX71 |
1 | ||
| 16400-41380 |
MTEU..MX71 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
MTEU..MX71 |
1 | ||
| 23322-54010 |
MTEU..MX71 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
MTEU..MX71 |
1 | ||
| 96711-19007 |
MTEU..MX71 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
MTEU..MX71 |
1 | ||
| 16401-63010 |
MTEU..MX71 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-41380 |
MTEU..MX71 |
1 | ||
| 16403-41380 |
MTEU..MX71 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
MTEU..MX71 |
1 | ||
| 16462-63030 |
MTEU..MX71 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15320 |
MTEU..MX71 |
2 | ||
| 16463-15320 |
MTEU..MX71 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
MTEU..MX71 |
1 | ||
| 16452-64070 |
MTEU..MX71 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-64070 |
MTEU..MX71 |
1 | ||
| 16452-64070 |
MTEU..MX71 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
MTEU..MX71 |
1 | ||
| 16462-63030 |
MTEU..MX71 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
MTEU..MX71 |
2 | ||
| 16463-15320 |
MTEU..MX71 |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-41380 |
MTEU..MX71 |
1 | ||
| 16491-41380 |
MTEU..MX71 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
MTEU..MX71 |
2 | ||
| 16492-35080 |
MTEU..MX71 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
MTEU..MX71 |
2 | ||
| 16493-15130 |
MTEU..MX71 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
MTEU..MX71 |
2 | ||
| 16494-15130 |
MTEU..MX71 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
MTEU..MX71 |
2 | ||
| 16496-15130 |
MTEU..MX71 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-15130 |
MTEU..MX71 |
2 | ||
| 16495-15130 |
MTEU..MX71 |
2 | ||

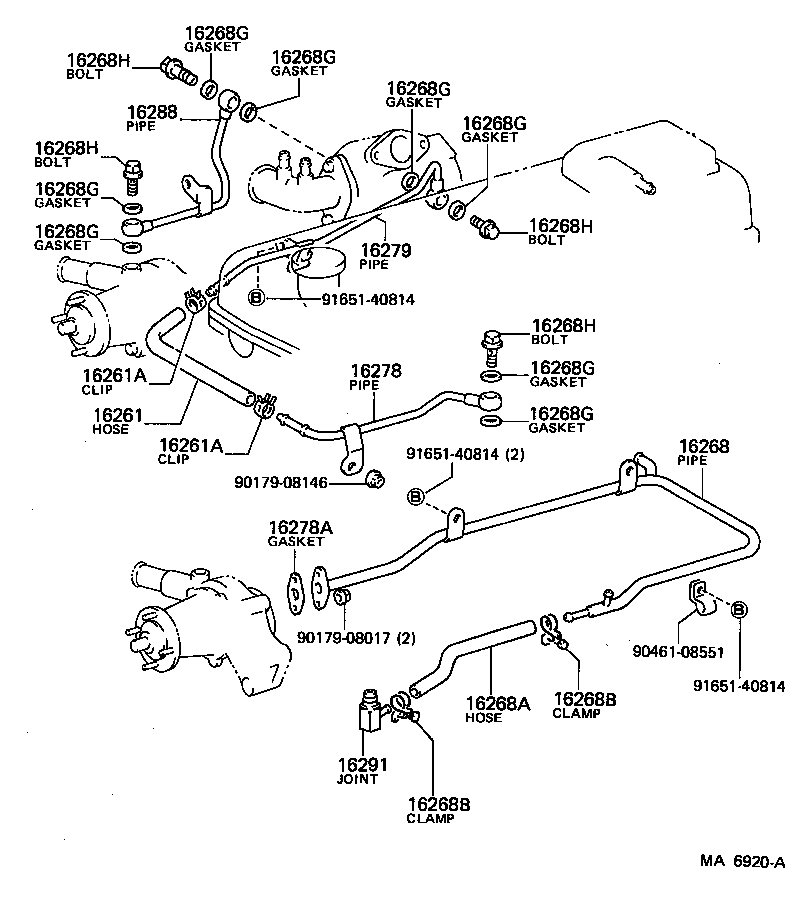

ILLUST NO. 2 OF 3(8408-8510)MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-41090 |
MTEU..MX71 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
MTEU..MX71 |
6 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
MTEU..MX71 |
6 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
MTEU..MX71 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
MTEU..MX71 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
MTEU..MX71 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
MTEU..MX71 |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX71 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
4 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX71 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX71 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX71 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX71 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX71 WATER PUMP & INTAKE MANIFOLD |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-41030 |
MTEU..MX71 MANIFOLD TO HOSE |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
MTEU..MX71 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-41020 |
MTEU..MX71 |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-41010 |
MTEU..MX71 TURBO TO WATER PUMP |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53026 |
MTEU..MX71 |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90179-08146 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||

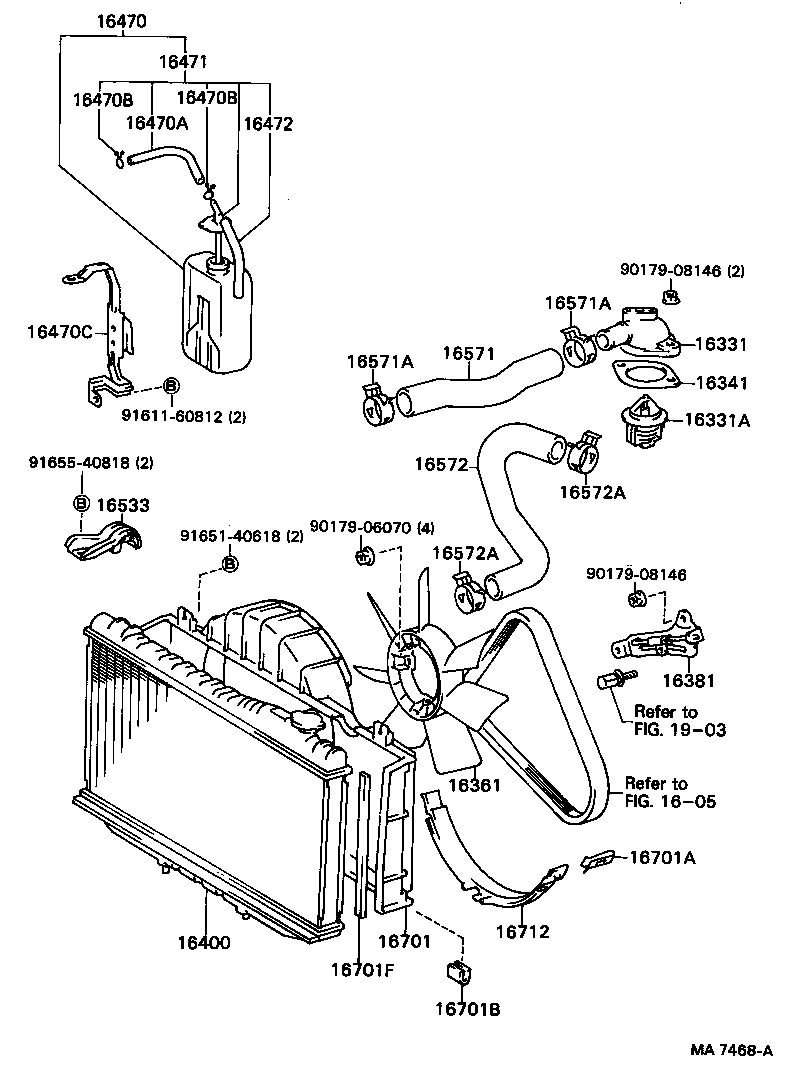

ILLUST NO. 1 OF 3(8408-8510)MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-43020 |
MTEU..MX71 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
MTEU..MX71 *WAX 88−100,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 90916-03054 |
MTEU..MX71 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-41010 |
MTEU..MX71 |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
MTEU..MX71 7BLADES |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-43010 |
MTEU..MX71 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41380 |
MTEU..MX71 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-70050 |
MTEU..MX71 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
MTEU..MX71 *H,L=220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MTEU..MX71 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MTEU..MX71 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70030 |
MTEU..MX71 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70030 |
MTEU..MX71 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
MTEU..MX71 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70010 |
MTEU..MX71 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-43070 |
MTEU..MX71 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
MTEU..MX71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
MTEU..MX71 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
MTEU..MX71 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
MTEU..MX71 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-43060 |
MTEU..MX71 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
MTEU..MX71 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
MTEU..MX71 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41080 |
MTEU..MX71 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
MTEU..MX71 W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
MTEU..MX71 |
2 | ||
| 16701F - SEAL(FOR FAN SHROUD) | ||||
| 16832-41010 |
MTEU..MX71 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41070 |
MTEU..MX71 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 91611-60812 | ||||
| 91651-40618 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1903 | ||||
