MX63-XTPQE (1980)
Toyota Mark 2
Production
Sep 1980
-
Aug 1982
Engine
5MEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)MX63

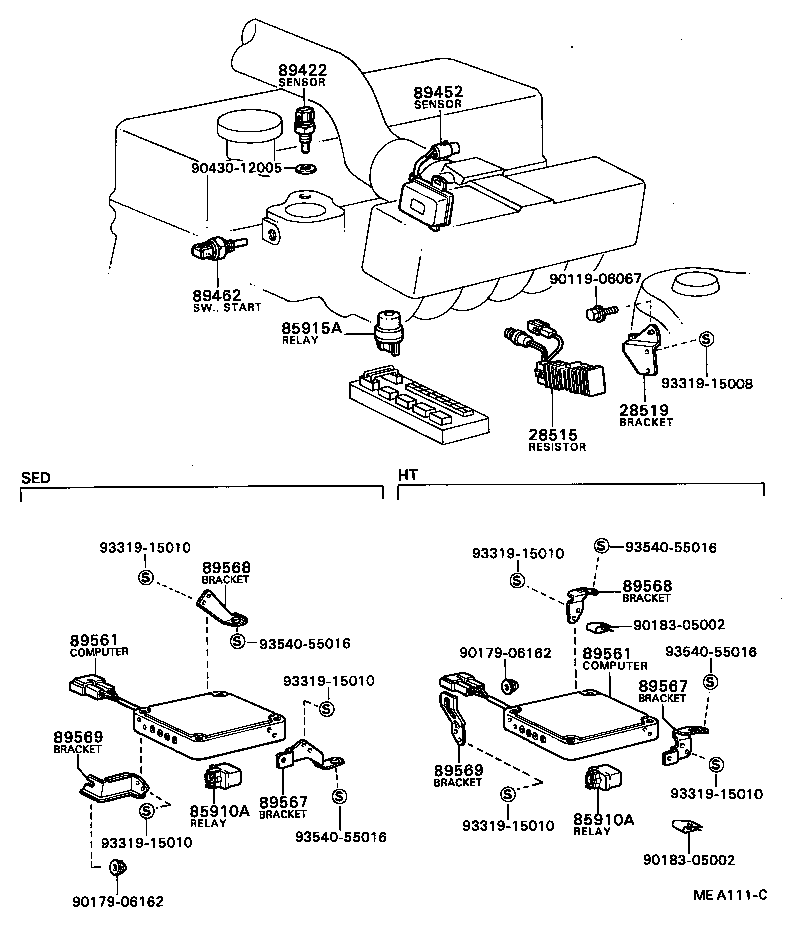

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-43010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-43020 |
5MEU,MTEU..MX61,63 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GX6#,MX61,63,RX63..EFI,TBO |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GX6#,MX61,63,RX63..EFI,TBO |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
GX6#,MX61,63,RX63 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GX6#,MX61,63,RX63 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22020 |
MX63 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-30011 |
MX61,63,RX63 |
1 | ||
| 89561 - COMPUTER, FUEL INJECTION | ||||
| 89661-22010 |
MX63 |
1 | ||
| 89561 - COMPUTER, FUEL INJECTION | ||||
| 89661-22010 |
MX63 |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89667-22020 |
MX63..HT |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89667-22020 |
MX63..HT |
1 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89668-22020 |
MX63..HT |
1 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89668-22020 |
MX63..HT |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89669-22020 |
MX63..HT |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89669-22020 |
MX63..HT |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90179-06162 | ||||
| 90183-05002 | ||||
| 90430-12005 | ||||
| 93319-05010 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93540-55016 | ||||
