MX63-XTPQE (1980)
Toyota Mark 2

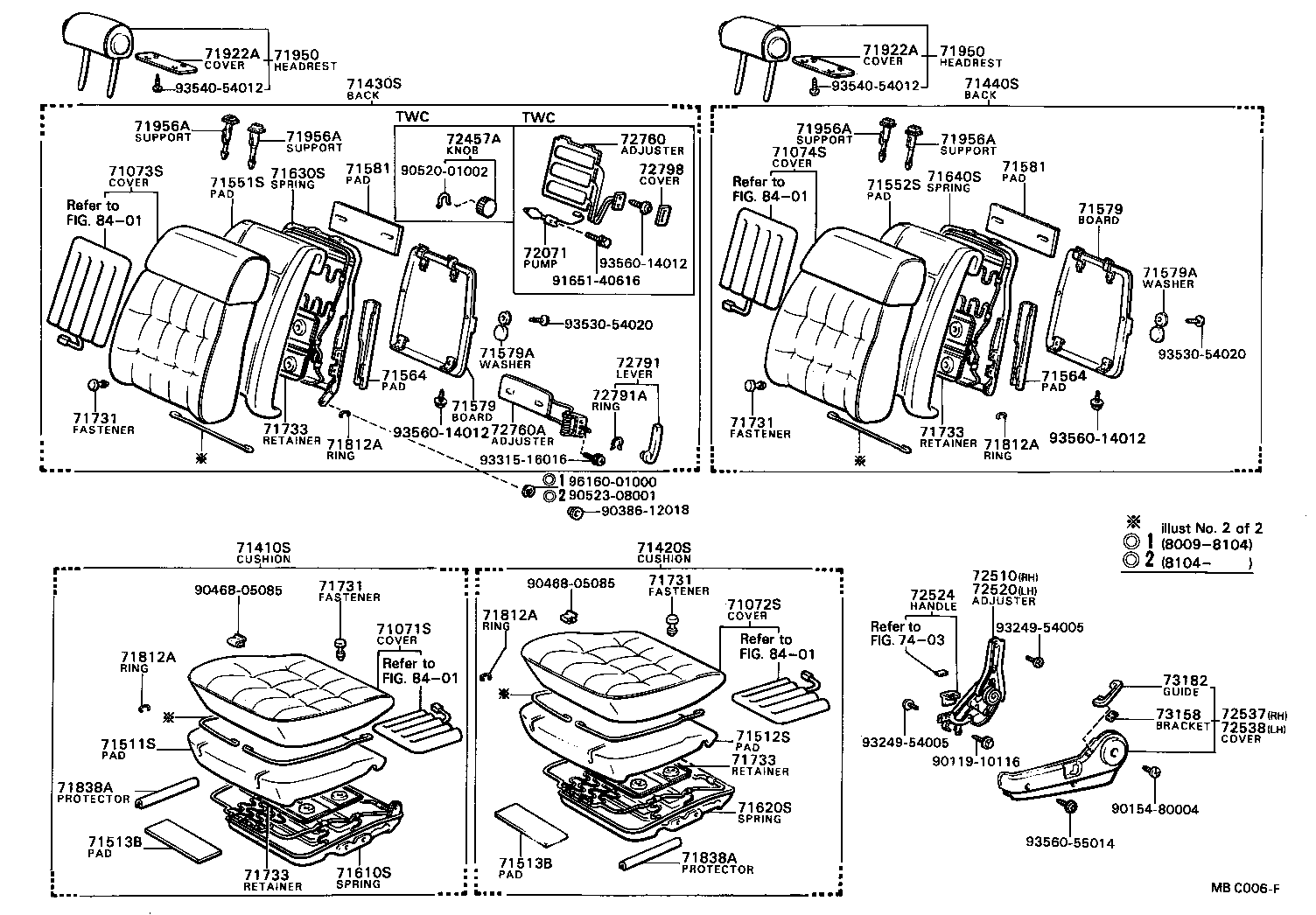

ILLUST NO. 1 OF 2(8009- )4FC,5F..GD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2267005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2267004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2267003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2237003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2237005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2237004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A07004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A07003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A07005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A07005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2A07003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A07004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2266004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2266003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-2266005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2242003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2242005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2242004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2A02004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2A02005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2A02003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2A06003 |
GX61,MX61,63..(4FC,5F)..GD FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-2A06004 |
GX61,MX61,63..(4FC,5F)..GD FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2A06005 |
GX61,MX61,63..(4FC,5F)..GD FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22190 |
GX61,MX61,63..(4FC,5F)..GD..(EFI,TBO) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22190 |
GX61,MX61,63..(4FC,5F)..GD..(EFI,TBO) |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F 100X400 |
2 | ||
| 71522-22100 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F 100X750 |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F 100X400 |
2 | ||
| 71522-22100 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F 100X750 |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22190 |
GX61,MX61,63..(4FC,5F)..GD..(EFI,TBO) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22190 |
GX61,MX61,63..(4FC,5F)..GD..(EFI,TBO) |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-22050 |
GX6#,MX61,63,RX60..(4FC,5F)..(GD,GR,LE,LG) RH |
2 | ||
| 71564-22060 |
GX6#,MX61,63,RX60..(4FC,5F)..(GD,GR,LE,LG) LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-22050 |
GX6#,MX61,63,RX60..(4FC,5F)..(GD,GR,LE,LG) RH |
2 | ||
| 71564-22060 |
GX6#,MX61,63,RX60..(4FC,5F)..(GD,GR,LE,LG) LH |
2 | ||
| 71579 - BOARD, FRONT SEAT BACK | ||||
| 71705-2204001 |
GX61,MX61,63..GD BLACK,BLACK,TRIM2# |
2 | ||
| 71705-2204006 |
GX61,MX61,63..GD D-BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2204004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
2 | ||
| 71579 - BOARD, FRONT SEAT BACK | ||||
| 71705-2204001 |
GX61,MX61,63..GD BLACK,BLACK,TRIM2# |
2 | ||
| 71705-2204006 |
GX61,MX61,63..GD D-BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2204004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
2 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201004 |
GX6#,MX61,63,RX60..GD,GR,LE,LG,LGT BLUE,BLUE,TRIM8# |
4 | ||
| 71788-2201001 |
GX6#,MX61,63,RX60..GD,GR,LE,LG,LGT BLACK,BLACK,TRIM2# |
4 | ||
| 71788-2201006 |
GX6#,MX61,63,RX60..GD,GR,LE,LG,LGT D-BROWN,BROWN,TRIM4# |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201004 |
GX6#,MX61,63,RX60..GD,GR,LE,LG,LGT BLUE,BLUE,TRIM8# |
4 | ||
| 71788-2201001 |
GX6#,MX61,63,RX60..GD,GR,LE,LG,LGT BLACK,BLACK,TRIM2# |
4 | ||
| 71788-2201006 |
GX6#,MX61,63,RX60..GD,GR,LE,LG,LGT D-BROWN,BROWN,TRIM4# |
4 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20240 |
GX6#,LX60,MX63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 71610-22150 |
MX60;GX6#,LX60,MX63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22070 |
GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22200 |
GX6#,MX61,63,RX60..(4F,4FC,5F)..(GD,GR,LE,LG) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22160 |
GX6#,MX61,63,RX60..(4F,4FC,5F)..(GD,GR,LE,LG) |
1 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71703-2201003 |
GX61,MX61,63..GD GRAY,GRAY,TRIM2# |
32 | ||
| 71703-2201004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
32 | ||
| 71703-2201005 |
GX61,MX61,63..GD GREIGE,BEIGE,TRIM4# |
32 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71703-2201003 |
GX61,MX61,63..GD GRAY,GRAY,TRIM2# |
32 | ||
| 71703-2201004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
32 | ||
| 71703-2201005 |
GX61,MX61,63..GD GREIGE,BEIGE,TRIM4# |
32 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71703-2201003 |
GX61,MX61,63..GD GRAY,GRAY,TRIM2# |
32 | ||
| 71703-2201004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
32 | ||
| 71703-2201005 |
GX61,MX61,63..GD GREIGE,BEIGE,TRIM4# |
32 | ||
| 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) | ||||
| 71703-2201003 |
GX61,MX61,63..GD GRAY,GRAY,TRIM2# |
32 | ||
| 71703-2201004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
32 | ||
| 71703-2201005 |
GX61,MX61,63..GD GREIGE,BEIGE,TRIM4# |
32 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71701-22050 |
GX61,MX61,63..GD..(EFI,TBO) CUSHION |
2 | ||
| 71701-22060 |
GX61,MX61,63..GD..(EFI,TBO) BACK |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71701-22050 |
GX61,MX61,63..GD..(EFI,TBO) CUSHION |
2 | ||
| 71701-22060 |
GX61,MX61,63..GD..(EFI,TBO) BACK |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71701-22050 |
GX61,MX61,63..GD..(EFI,TBO) CUSHION |
2 | ||
| 71701-22060 |
GX61,MX61,63..GD..(EFI,TBO) BACK |
2 | ||
| 71733 - RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) | ||||
| 71701-22050 |
GX61,MX61,63..GD..(EFI,TBO) CUSHION |
2 | ||
| 71701-22060 |
GX61,MX61,63..GD..(EFI,TBO) BACK |
2 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX60,67,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
2 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX60,67,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F |
2 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2202006 |
GX61,MX61,63..GD D-BROWN,BROWN,TRIM4# |
2 | ||
| 71922-2202004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
2 | ||
| 71922-2202001 |
GX61,MX61,63..GD BLACK,BLACK,TRIM2# |
2 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2202006 |
GX61,MX61,63..GD D-BROWN,BROWN,TRIM4# |
2 | ||
| 71922-2202004 |
GX61,MX61,63..GD BLUE,BLUE,TRIM8# |
2 | ||
| 71922-2202001 |
GX61,MX61,63..GD BLACK,BLACK,TRIM2# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2234005 |
GX61,MX61,63..GD RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71920-2213004 |
GX61,MX61,63..GD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-2234003 |
GX61,MX61,63..GD RH,GRAY,GRAY,TRIM2# |
1 | ||
| 71920-2213003 |
GX61,MX61,63..GD LH,GRAY,GRAY,TRIM2# |
1 | ||
| 71910-2234004 |
GX61,MX61,63..GD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-2213005 |
GX61,MX61,63..GD LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2234005 |
GX61,MX61,63..GD RH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71920-2213004 |
GX61,MX61,63..GD LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-2234003 |
GX61,MX61,63..GD RH,GRAY,GRAY,TRIM2# |
1 | ||
| 71920-2213003 |
GX61,MX61,63..GD LH,GRAY,GRAY,TRIM2# |
1 | ||
| 71910-2234004 |
GX61,MX61,63..GD RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-2213005 |
GX61,MX61,63..GD LH,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ無,W/O LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ無,W/O LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ無,W/O LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ付,W/LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX6#,MX6#,RX6#,TX6# ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT ﾛｯｸ無,W/O LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22080 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..3FC,4F,4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22080 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..3FC,4F,4FC,5F |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005001 |
GX6#,LX6#,MX6#,RX6#,TX6# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-2004001 |
GX6#,LX6#,MX6#,RX6#,TX6# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004006 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005006 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71811-2206004 |
MX60;GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2206001 |
MX60;GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2206006 |
MX60;GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) D-BROWN,BROWN,TRIM4# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2202001 |
MX60;GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2202006 |
MX60;GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) D-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2202004 |
MX60;GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) BLUE,BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22020 |
GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001006 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) D-BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3001001 |
GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT) BLACK,BLACK,TRIM2# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GX61,MX61,63..(4FC,5F)..GD..(EFI,TBO) |
1 | ||
| 73158 - BRACKET, SEAT BELT GUIDE SET | ||||
| 73158-20010 |
GX6#,LX6#,MX6#,RX6#,TX6# |
2 | ||
| 73182 - GUIDE, FRONT SEAT LAP BELT, OUTER | ||||
| 73181-2002006 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 73181-2002001 |
GX6#,LX6#,MX6#,RX6#,TX6# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 73181-2002004 |
GX6#,LX6#,MX6#,RX6#,TX6# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 73182-2001006 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 73182-2001001 |
GX6#,LX6#,MX6#,RX6#,TX6# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 73182-2001004 |
GX6#,LX6#,MX6#,RX6#,TX6# LH,BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90386-12018 | ||||
| 90468-05085 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-40616 | ||||
| 93249-54005 | ||||
| 93315-16016 | ||||
| 93530-54020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20015 | ||||
| 90580-20019 | ||||
| 90580-20021 | ||||
| 90580-20032 | ||||
| 90580-20096 | ||||
| 90580-20126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
