MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )HT

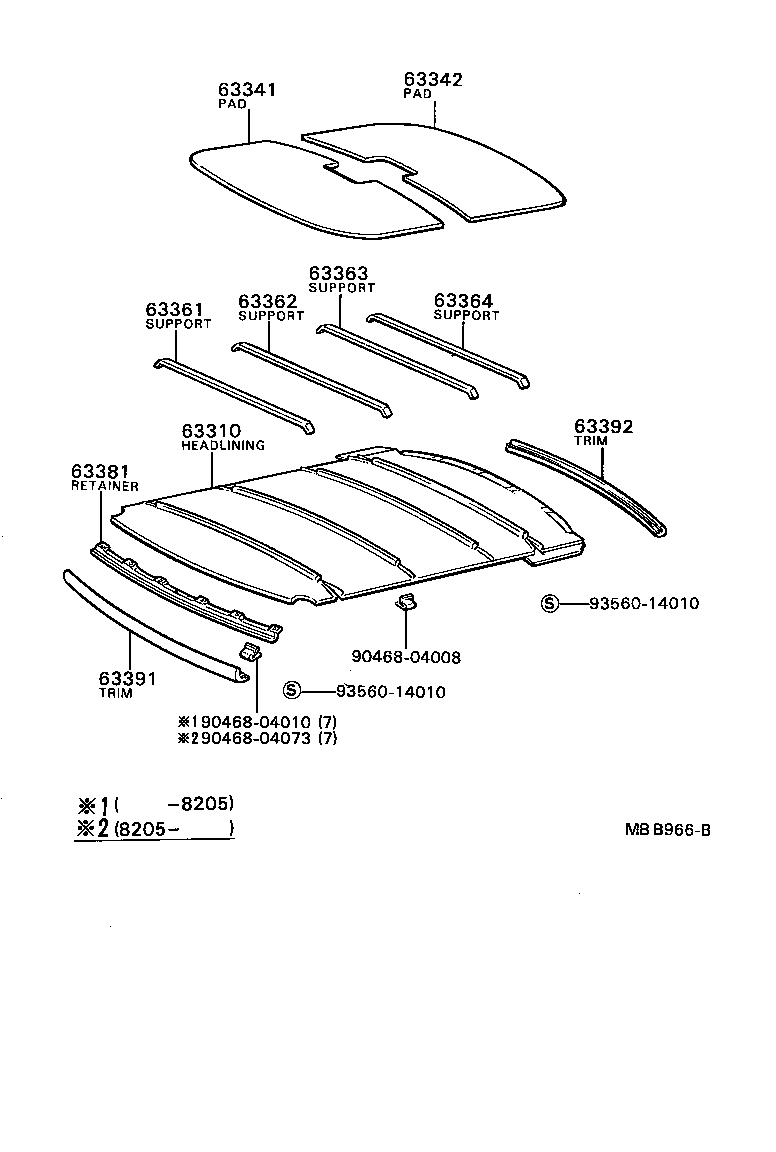

Click highlighted areas on diagram

diagram 63310 63341 63342 63361 63362 63363 63364 63381 63391 63392 9046804008 9046804010 9046804073 9356014010 9356014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-9580308

GX61,MX61,63..HT..GD

IVORY,IVORY,TRIM2#,4#

 1
63310-9580304

GX61,MX61,63..HT..GD

BLUE,BLUE,TRIM8#

 1
63310-9580404

GX61,MX61,63..HT..GD

BLUE,BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-22080

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-22080

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-22060

GX6#,MX61,63,RX6#,SX60,TX60..HT

L=1126

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-22060

GX6#,MX61,63,RX6#,SX60,TX60..HT

L=1133

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63362-22060

GX6#,MX61,63,RX6#,SX60,TX60..HT

L=1133

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63363-22040

GX6#,MX61,63,RX6#,SX60,TX60..HT

L=1150

 1
63381 - RETAINER, HEADLINING, FRONT
63381-22020

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2202001

GX6#,MX61,63,RX6#,TX60..HT

BLACK,BLACK,TRIM2#

 1
63391-2202006

GX6#,MX61,63,RX6#,TX60..HT

D-BROWN,BROWN,TRIM4#

 1
63391-2202004

GX6#,MX61,63,RX6#,TX60..HT

BLUE,BLUE,TRIM8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-9580004

GX6#,MX61,63,RX6#,TX60..HT

BLUE,BLUE,TRIM8#

 1
63392-9580001

GX6#,MX61,63,RX6#,TX60..HT

BLACK,BLACK,TRIM2#

 1
63392-9580006

GX6#,MX61,63,RX6#,TX60..HT

D-BROWN,BROWN,TRIM4#

 1
Common parts
90468-04008
90468-04010
90468-04073
93560-14010
