MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )HT

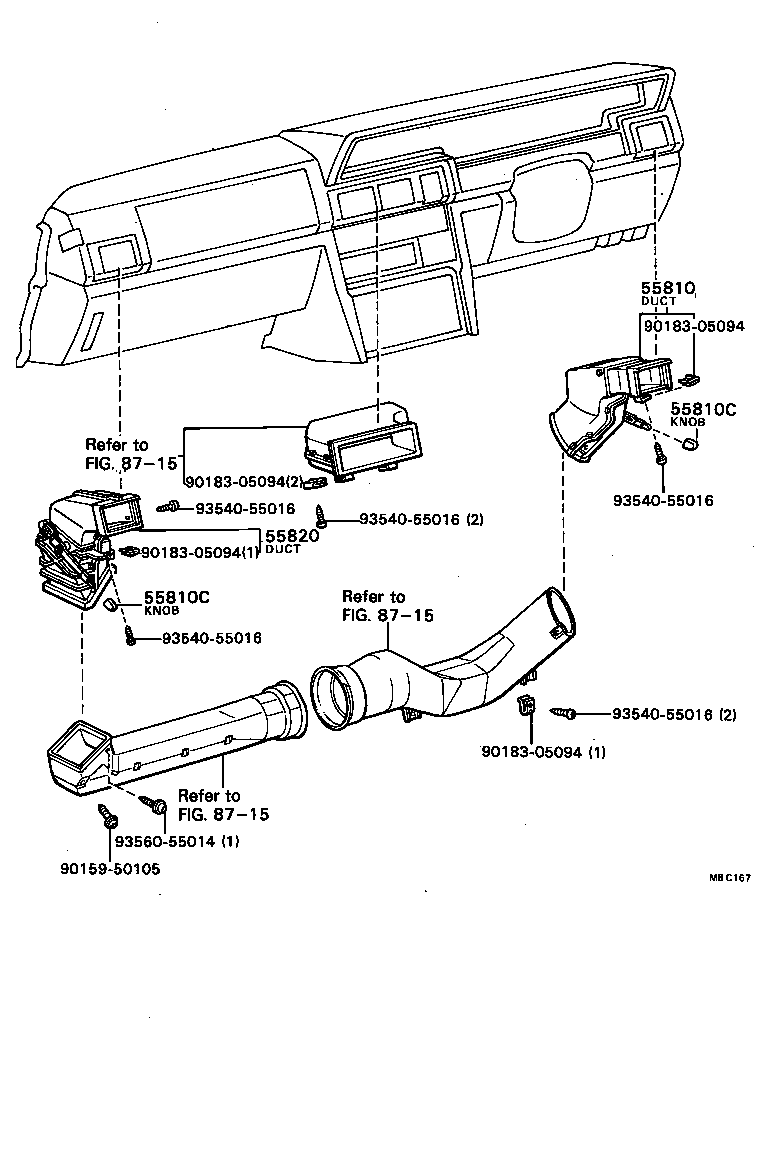

Click highlighted areas on diagram

diagram 55810 55810C 55810C 55820 8715 8715 8715 9015950105 9018305094 9018305094 9018305094 9018305094 9354055016 9354055016 9354055016 9354055016 9354055016 9356055014
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-95800

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55804-22020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55804-22020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55087-95800

GX6#,MX61,63,RX6#,SX60,TX60..HT

 1
Common parts
90159-50105
90183-05094
93540-55016
93560-55014
Linked diagrams
8715
