MX63-XTPQE (1980)
Toyota Mark 2
ILLUST NO. 1 OF 2(8009-8208)GX61,MX61,63,RX63 ; (8208- )GD,LGT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
GX61,MX61,63,RX63 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-22090 |
GX61,MX61,63,RX63 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22340 |
GX61,MX63,RX63 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22240 |
GX61,MX63,RX63 |
1 | ||
| 04443-22250 |
GX61,MX63..GD W/ESC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
GX61,MX61,63,RX63 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-25080 |
GX61,MX61,63,RX63 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
GX61,MX61,63,RX63 |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
GX61,MX61,63,RX63 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

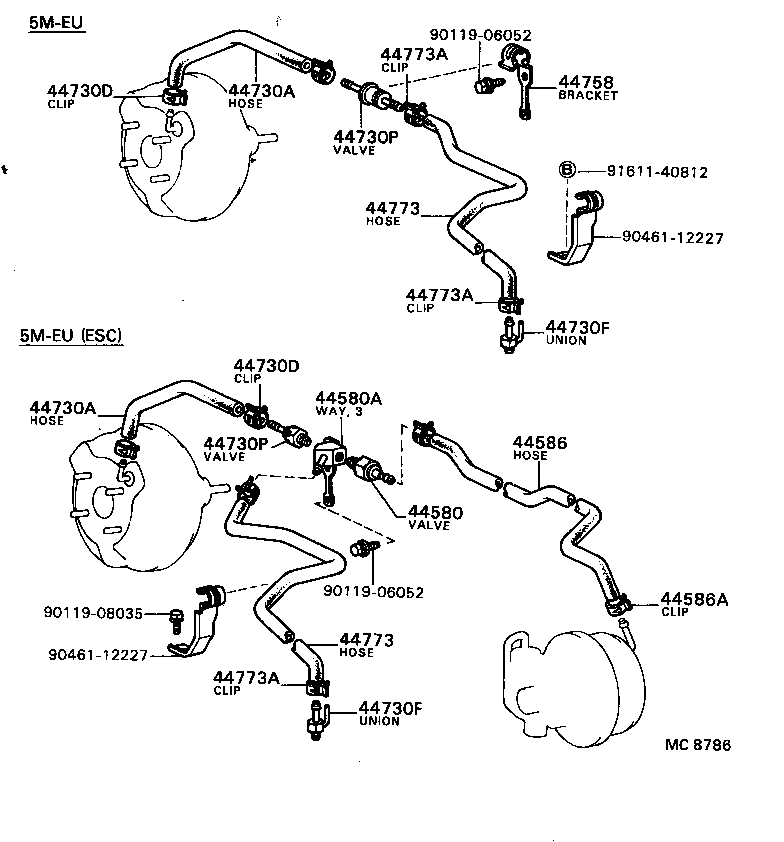

ILLUST NO. 2 OF 2(8009-8208)MX63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44580 - VALVE ASSY, ACTUATOR CHECK | ||||
| 44580-22030 |
GX61,MX63..GD W/ESC |
1 | ||
| 44580A - WAY, 3, ACTUATOR VACUUM | ||||
| 90413-51003 |
GX61,MX63..GD W/ESC |
1 | ||
| 44586 - HOSE, ACTUATOR VACUUM, NO.1 | ||||
| 44772-22020 |
GX61,MX63..GD..EFI W/ESC |
1 | ||
| 44586A - CLIP(FOR ACTUATOR VACUUM HOSE) | ||||
| 90467-16002 |
GX61,MX63..GD W/ESC |
2 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44776-22020 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44776-22020 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GX61,MX61,63 *AAC |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51320 |
GX61,MX61,63 *AAC |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20020 |
GX61,MX63..GD W/ESC |
1 | ||
| 44730-20010 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20020 |
GX61,MX63..GD W/ESC |
1 | ||
| 44730-20010 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22090 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-22270 |
MX63 |
1 | ||
| 44773-22280 |
MX63 W/ESC |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-22270 |
MX63 |
1 | ||
| 44773-22280 |
MX63 W/ESC |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX63,SX60,TX6# |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX63,SX60,TX6# |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX63,SX60,TX6# |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90119-08035 | ||||
| 90461-12227 | ||||
| 91611-40812 | ||||
