MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982

Engine 5MEU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8009- )5MEU,MTEU,MU

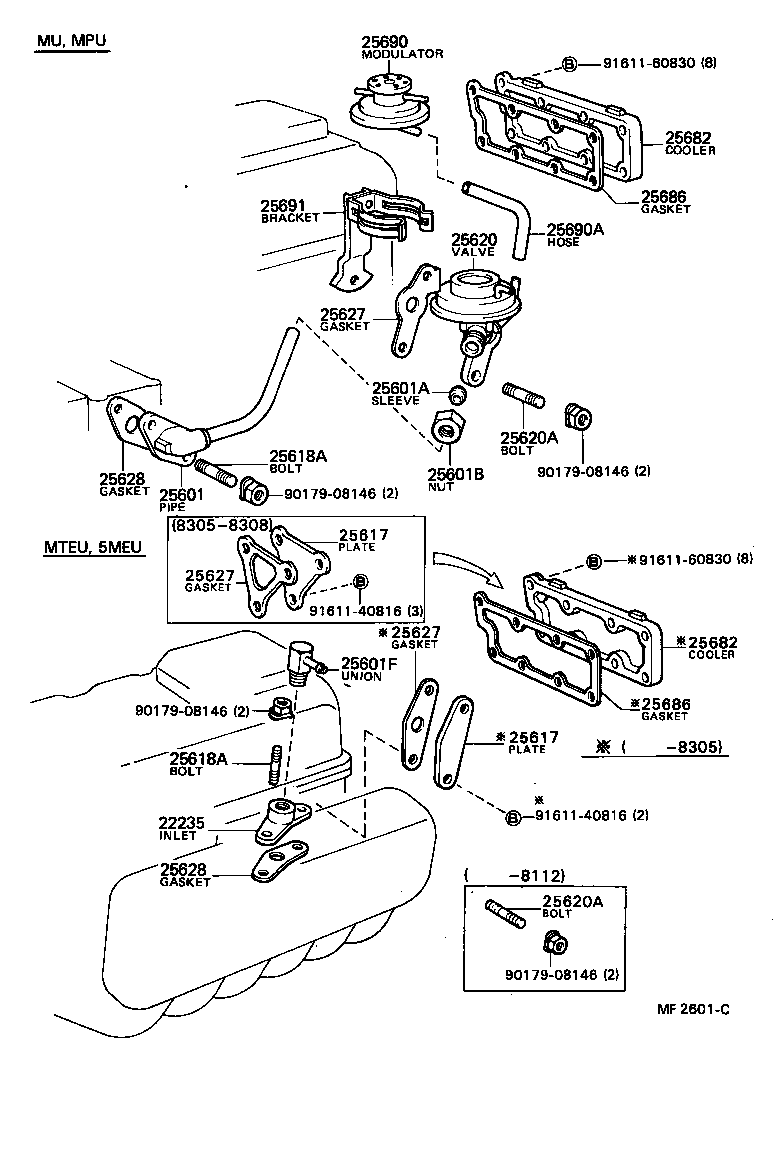

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
22235 - INLET, AUXILIARY AIR
22235-43010	5MEU,MTEU..MX61,63	09/1980 - 07/1984	1
25601F - UNION(FOR EGR PIPE, NO.1)
90404-53027	5MEU,MTEU..MX61,63	09/1980 - 07/1984	1
25617 - PLATE, EGR HOLE COVER
25617-43010	5MEU,MTEU..MX61,63	09/1980 - 05/1983	1
25617 - PLATE, EGR HOLE COVER
25617-43010	5MEU,MTEU..MX61,63	09/1980 - 05/1983	1
25618A - BOLT, STUD(FOR EGR INLET)
90116-08025	5MEU,MTEU,MU..MX6#	09/1980 - 07/1984	2
25618A - BOLT, STUD(FOR EGR INLET)
90116-08025	5MEU,MTEU,MU..MX6#	09/1980 - 07/1984	2
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08025	5MEU,MTEU,MU..MX6#	09/1980 - 12/1981	2
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08025	5MEU,MTEU,MU..MX6#	09/1980 - 12/1981	2
25627 - GASKET, EGR VALVE
25627-41020	5MEU,MTEU..MX61,63	09/1980 - 05/1983	1
25627 - GASKET, EGR VALVE
25627-41020	5MEU,MTEU..MX61,63	09/1980 - 05/1983	1
25627 - GASKET, EGR VALVE
25627-41020	5MEU,MTEU..MX61,63	09/1980 - 05/1983	1
25628 - GASKET, EGR INLET
25628-45020	5MEU,MTEU..MX61,63	09/1980 - 07/1984	1
25628 - GASKET, EGR INLET
25628-45020	5MEU,MTEU..MX61,63	09/1980 - 07/1984	1
25682 - COOLER, EGR, NO.2
25682-45020	5MEU,MTEU,MU..MX6#	09/1980 - 05/1983	1
25682 - COOLER, EGR, NO.2
25682-45020	5MEU,MTEU,MU..MX6#	09/1980 - 05/1983	1
25686 - GASKET, EGR COOLER, NO.2
25686-45010	5MEU,MTEU,MU..MX6#	09/1980 - 05/1983	1
25686 - GASKET, EGR COOLER, NO.2
25686-45010	5MEU,MTEU,MU..MX6#	09/1980 - 05/1983	1
Common parts
90179-08146
91611-40816
91611-60830
