MX63-XTPQE (1980)
Toyota Mark 2
(8009-8208)5MEU

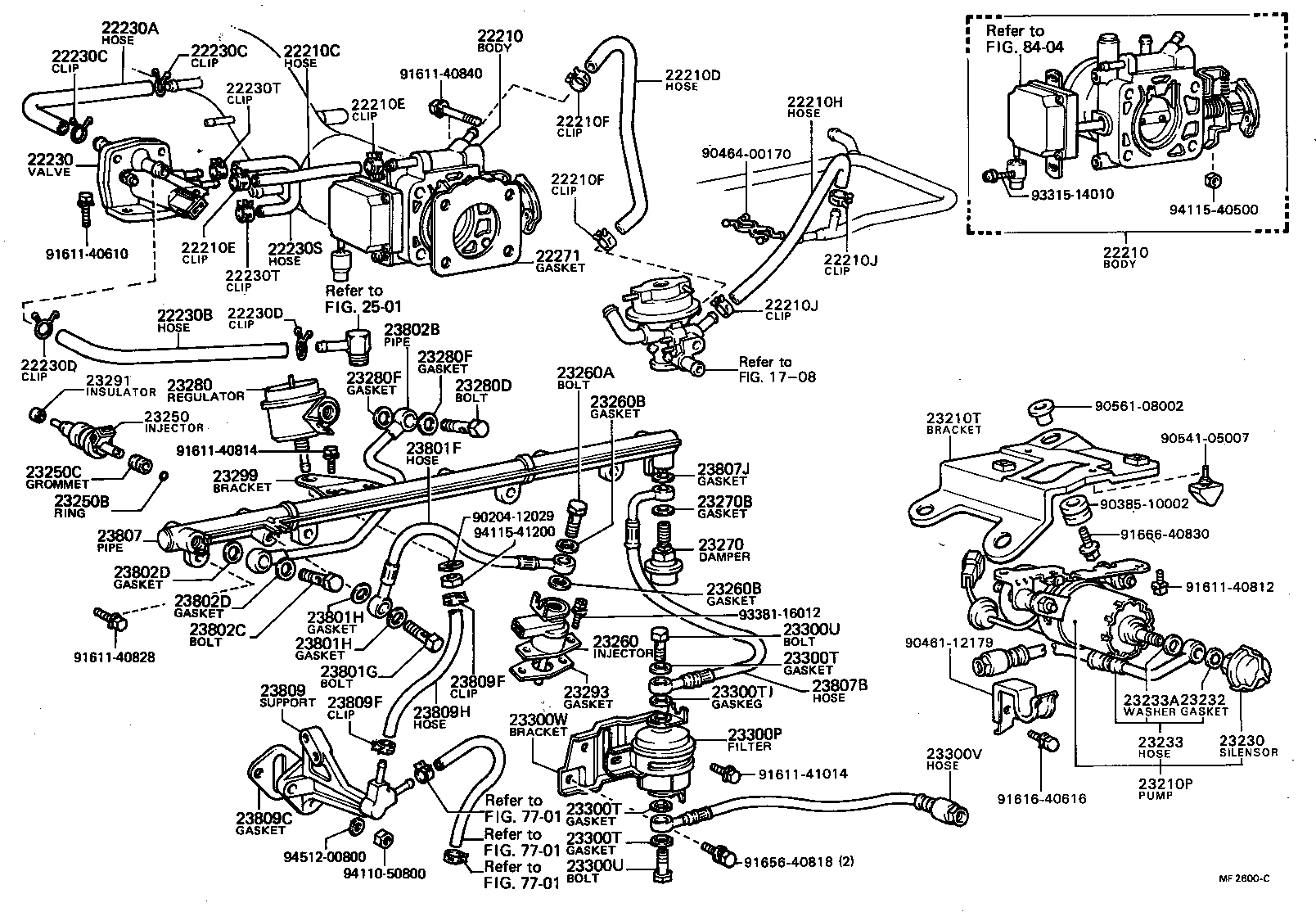

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43060 |
5MEU..MX63 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-43060 |
5MEU..MX63 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16281-43010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-43010 |
5MEU..MX63 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
4 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
4 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
2 | ||
| 22210H - HOSE, WATER BY-PASS, NO.3 | ||||
| 16261-43010 |
5MEU..MX63 |
1 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5MEU..MX63 |
4 | ||
| 22210J - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
5MEU..MX63 |
4 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-45010 |
5MEU..MX63 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 17343-41020 |
5MEU..MX63 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 17344-41010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-21152 |
5MEU..MX63 |
2 | ||
| 90467-21152 |
5MEU..MX63 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-21152 |
5MEU..MX63 |
2 | ||
| 90467-21152 |
5MEU..MX63 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-21152 |
5MEU..MX63 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-21152 |
5MEU..MX63 |
2 | ||
| 22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE) | ||||
| 16261-45010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
2 | ||
| 22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-41030 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-45030 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23210T - BRACKET, FUEL PUMP | ||||
| 23206-45030 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-26080 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-26080 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90999-99066 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23233A - WASHER(FOR FUEL PUMP HOSE) | ||||
| 90099-01012 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-45011 |
5MEU,MTEU..MX61,63 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
5MEU,MTEU..MX61,63 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
5MEU,MTEU..MX61,63 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-45010 |
5MEU..MX63 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-10008 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23260B - GASKET | ||||
| 90099-01459 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-70010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
5MEU,MTEU..MX61,63 ID=17.3 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-41030 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-12097 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
5MEU,MTEU..MX61,63 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-34020 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23299 - BRACKET, FUEL PRESSURE REGULATOR | ||||
| 23299-41021 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-45060 |
5MEU..MX63 |
1 | ||
| 23300-43040 |
5MEU..MX63 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01238 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-41010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01206 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-41010 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-12005 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-45020 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 90923-01241 |
5MEU..MX63 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41021 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23809C - GASKET, FUEL PIPE SUPPORT | ||||
| 90923-05004 |
5MEU,MTEU..MX61,63 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 90467-13001 |
5MEU,MTEU..MX61,63 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 95335-08019 |
5MEU,MTEU..MX61,63 |
1 | ||
| Common parts | ||||
| 90204-12029 | ||||
| 90385-10002 | ||||
| 90461-12179 | ||||
| 90464-00170 | ||||
| 90541-05007 | ||||
| 90561-08002 | ||||
| 91611-40610 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91611-40828 | ||||
| 91611-40840 | ||||
| 91611-41014 | ||||
| 91616-40616 | ||||
| 91656-40818 | ||||
| 91666-40830 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 94110-50800 | ||||
| 94115-40500 | ||||
| 94115-41200 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2501 | ||||
| 7701 | ||||
| 8404 | ||||
