MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)5MEU

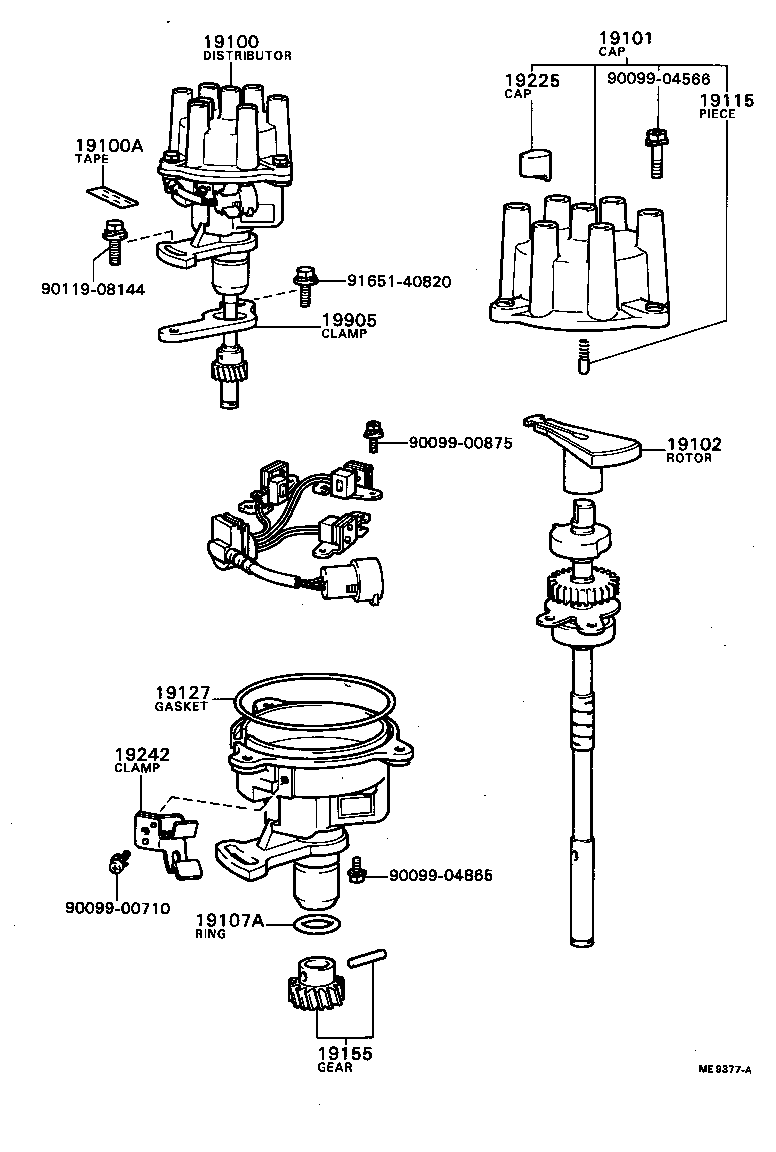

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19127 19155 19225 19242 19905 9009900710 9009900875 9009904566 9009904865 9011908144 9165140820
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-43050

5MEU..MX63

 1
19100A - TAPE, SEALING
90919-24004

5MEU,MTEU,MU..MX6#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-45191

5MEU,MU..MX60,63

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-43050

5MEU..MX63

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14018

5MEU,MTEU,MU..MX6#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

5MEU,MTEU,MU..MX6#

 2
19127 - PACKING, DUST PROOF
19127-45190

5MEU,MU..MX60,63

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-45190

5MEU,MTEU,MU..MX6#

 1
19225 - CAP, RUBBER
19225-41140

5MEU,MTEU,MU..MX6#

 1
19242 - CLAMP, CORD
19242-43050

5MEU..MX63

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19955-45020

5MEU,MTEU,MU..MX6#

 1
Common parts
90099-00710
90099-00875
90099-04566
90099-04865
90119-08144
91651-40820
