MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)5MEU

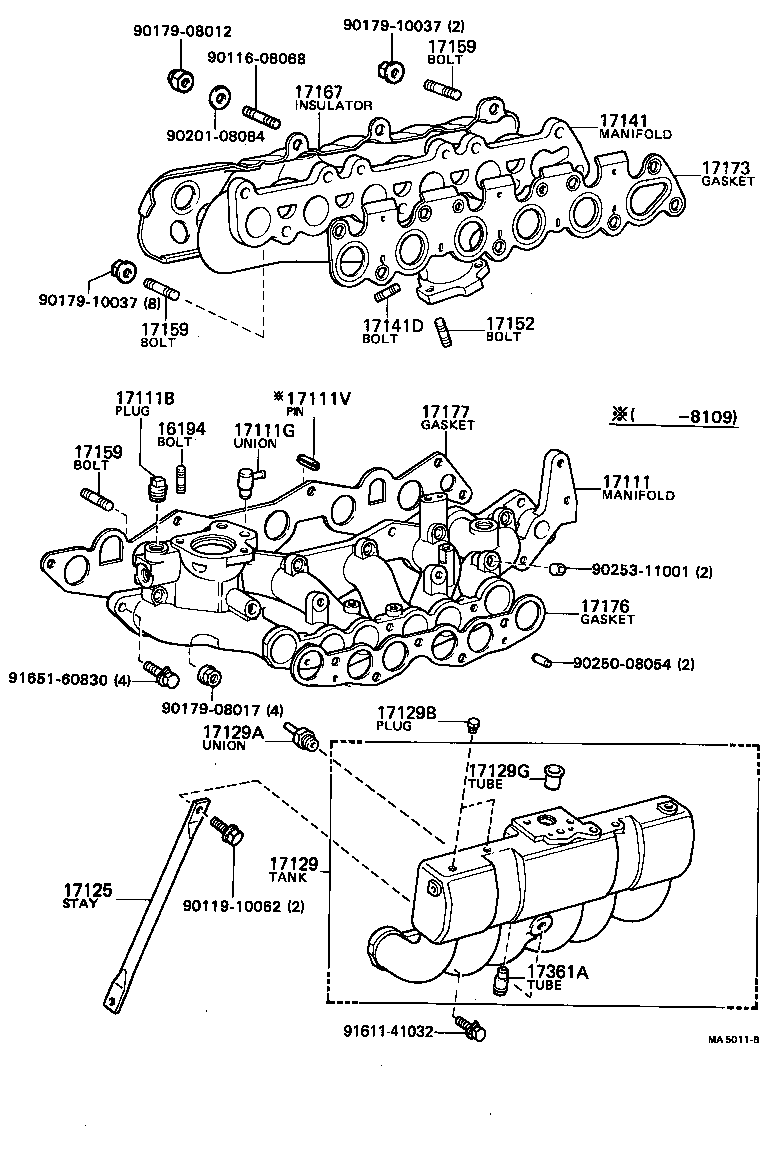

Click highlighted areas on diagram

diagram 16194 17111 17111B 17111G 17111V 17125 17129 17129A 17129B 17129G 17141 17141D 17152 17159 17159 17159 17167 17173 17176 17177 17361A 9011608068 9011910062 9017908012 9017908017 9017910037 9017910037 9020108084 9025008054 9025311001 9161141032 9165160830
Part # Description Qty Price
16194 - BOLT, STUD(FOR WATER OUTLET SETTING)
90116-08025

5MEU,MTEU,MU..MX6#

 2
17111 - MANIFOLD, INTAKE
17111-45080

5MEU,MTEU..MX61,63

 1
17111B - PLUG, NO.2
90345-53030

5MEU,MTEU..MX61,63

 1
17111G - UNION(FOR INTAKE MANIFOLD WATER)
90407-52005

5MEU,MTEU..MX61,63

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90254-08001

5MEU,MU..MX6#

 2
17125 - STAY, SURGE TANK, NO.1
17125-41020

5MEU,MTEU..MX61,63

 1
17129 - TANK, INTAKE AIR SURGE
17109-41050

5MEU,MTEU..MX61,63

 1
17129A - UNION, NO.1
90404-53029

5MEU..MX63

 1
17129B - PLUG
90072-34107

5MEU,MTEU..MX61,63

 1
17129G - TUBE, EGR INLET
25619-45010

5MEU,MTEU..MX61,63

 1
17141 - MANIFOLD, EXHAUST
17141-41060

5MEU..MX63

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

5MEU,MU..MX6#

L=28,S=8&14

 2
90116-08045

5MEU,MTEU,MU..MX6#

L=28,S=8&14

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

5MEU,MU..MX6#

L=41.5,S=14&21

 3
90116-10058

5MEU,MU..MX6#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10024

5MEU,MTEU,MU..MX6#

EXHAUST LWR,L=53,S=15&29

 3
90116-08020

5MEU,MTEU,MU..MX6#

INTAKE,L=44,S=12&8

 4
90116-10025

5MEU,MTEU,MU..MX6#

EXHAUST UPR,L=57,S=15&31

 7
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10024

5MEU,MTEU,MU..MX6#

EXHAUST LWR,L=53,S=15&29

 3
90116-08020

5MEU,MTEU,MU..MX6#

INTAKE,L=44,S=12&8

 4
90116-10025

5MEU,MTEU,MU..MX6#

EXHAUST UPR,L=57,S=15&31

 7
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10024

5MEU,MTEU,MU..MX6#

EXHAUST LWR,L=53,S=15&29

 3
90116-08020

5MEU,MTEU,MU..MX6#

INTAKE,L=44,S=12&8

 4
90116-10025

5MEU,MTEU,MU..MX6#

EXHAUST UPR,L=57,S=15&31

 7
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-41010

5MEU,MU..MX60,63

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-45030

5MEU,MU..MX60,63

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-41030

5MEU,MTEU..MX61,63

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-41030

5MEU..MX63

 1
17361A - TUBE, AIR(FOR EFI)
17361-41010

5MEU,MTEU..MX61,63

 1
Common parts
90116-08068
90119-10062
90179-08012
90179-08017
90179-10037
90201-08084
90250-08054
90253-11001
91611-41032
91651-60830
