MX63-XTPQE (1980)
Toyota Mark 2

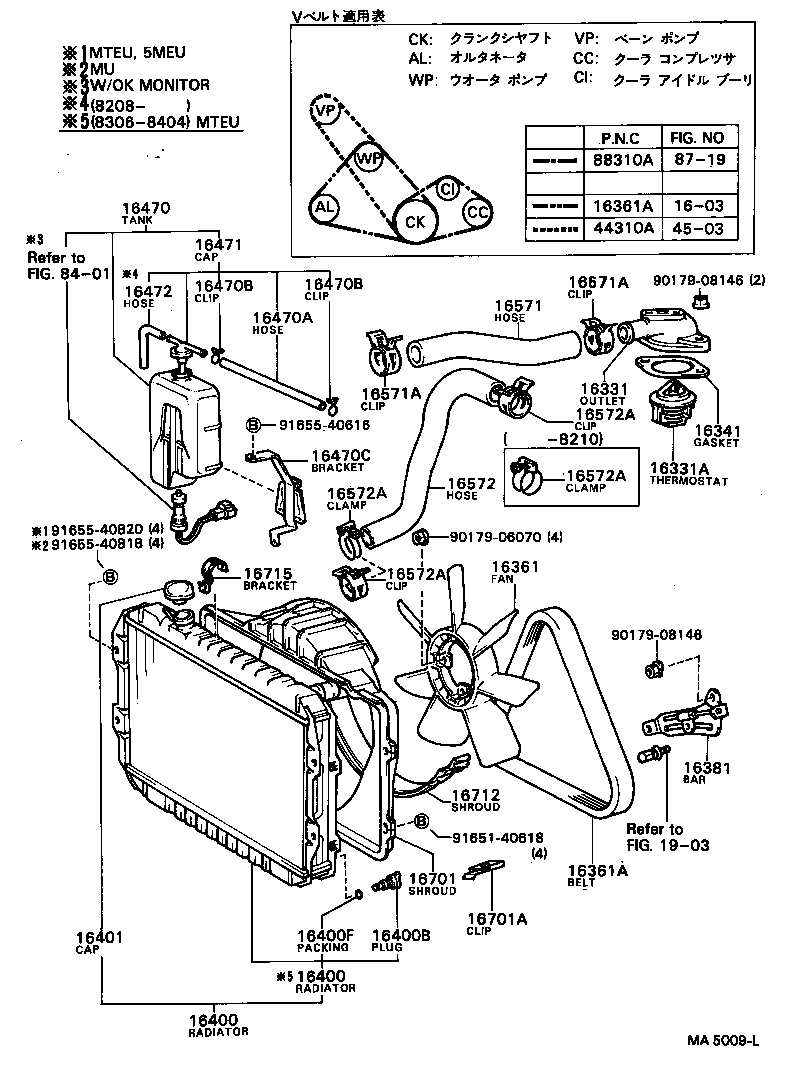

ILLUST NO. 1 OF 3(8009- )5MEU,MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-41071 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
5MEU,MTEU,MU..MX6# *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03036 |
5MEU,MTEU,MU..MX6# *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03037 |
5MEU,MTEU,MU..MX6# *WAX 82-95,KUZEH |
1 | ||
| 90916-03040 |
5MEU,MTEU,MU..MX6# *WAX 88-100,KUZEH |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16341-38010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
5MEU,MTEU,MU..MX6# 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
5MEU,MTEU,MU..MX6# DOUBLE V BELTS,L=925 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
5MEU,MTEU,MU..MX6# DOUBLE V BELTS,L=925 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-45011 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41280 |
5MEU,MU..MX60,63..ATM |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41280 |
5MEU,MU..MX60,63..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70020 |
5MEU,MTEU..MX61,63 W/OK MONITOR |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12097 |
5MEU,MTEU,MU..MX6# *H,L=250 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5MEU,MTEU,MU..MX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5MEU,MTEU,MU..MX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41090 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5MEU,MTEU,MU..MX6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
5MEU,MTEU,MU..MX6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41080 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5MEU,MTEU,MU..MX6# ID=43 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5MEU,MTEU,MU..MX6# ID=43 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5MEU,MTEU,MU..MX6# ID=43 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10430 |
5MEU,MTEU,MU..MX6# ID=43 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-43010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
5MEU,MTEU,MU..MX6# W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-43010 |
5MEU,MTEU,MU..MX6# W/COOLER |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-43010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02078 |
MX60,63 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00910 |
MX6#..DLX,GD |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1903 | ||||
| 4503 | ||||
| 8401 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(8009-8308)5MEU,MTEU,MU ; (8308- )MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5MEU,MTEU..MX61,63 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5MEU,MTEU..MX61,63 |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53032 |
5MEU..MX63 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53032 |
5MEU..MX63 |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-08154 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 2211 | ||||
