MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )5MEU,MTEU,MU

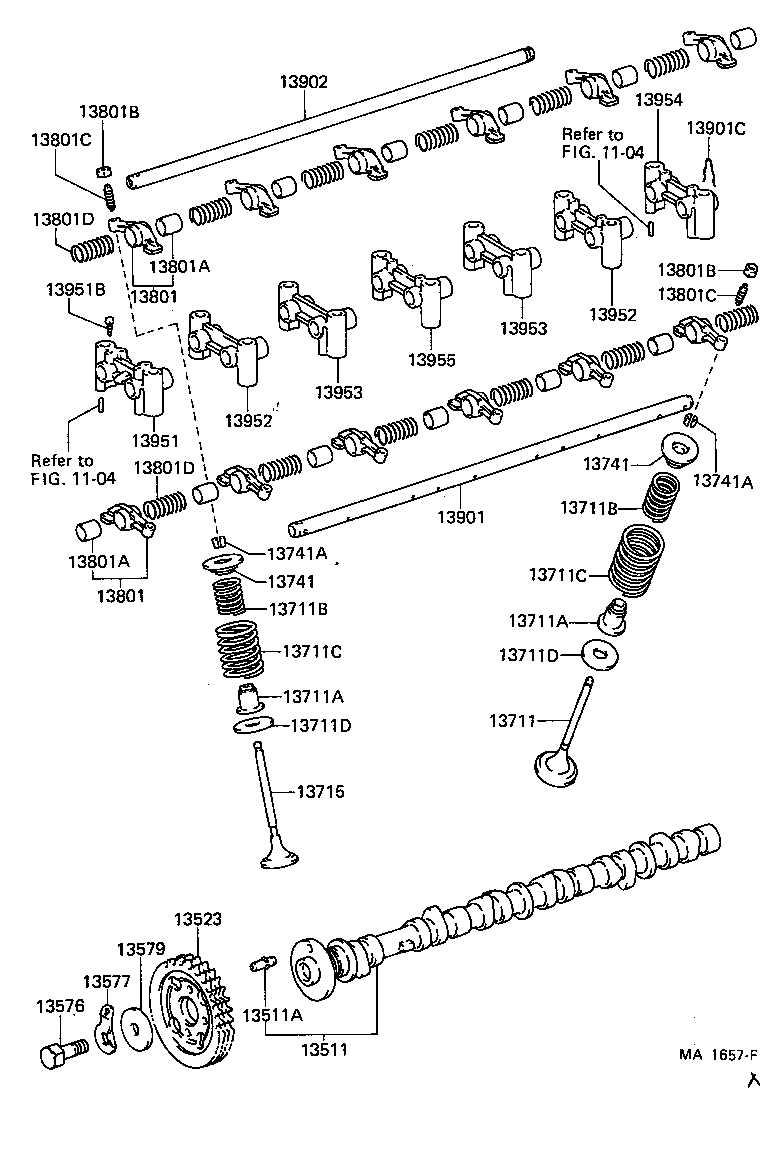

Click highlighted areas on diagram

diagram 1104 1104 13511 13511A 13523 13576 13577 13579 13711 13711A 13711A 13711B 13711B 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13801 13801 13801A 13801A 13801B 13801B 13801C 13801C 13801D 13801D 13901 13901C 13902 13951 13951B 13952 13952 13953 13953 13954 13955
Part # Description Qty Price
13511 - CAMSHAFT
13501-45030

5MEU..MX63

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90249-08042

5MEU,MTEU,MU..MX6#

長さ=23,外径=8,L=23,OD=8

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-43010

5MEU,MTEU,MU..MX6#

N=40

 1
13576 - BOLT, CAMSHAFT TIMING GEAR
13576-45010

5MEU,MTEU,MU..MX6#

 1
13577 - PLATE, LOCK
13577-41010

5MEU,MTEU,MU..MX6#

 1
13579 - WASHER, CAMSHAFT TIMING GEAR BOLT
90201-16328

5MEU,MTEU,MU..MX6#

 1
13711 - VALVE, INTAKE
13711-43010

5MEU..MX63

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02015

5MEU,MTEU,MU..MX6#

EXHAUST

 6
90913-02022

5MEU,MTEU,MU..MX6#

INTAKE

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02015

5MEU,MTEU,MU..MX6#

EXHAUST

 6
90913-02022

5MEU,MTEU,MU..MX6#

INTAKE

 6
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26001

5MEU,MTEU,MU..MX6#

WD=2.6,CW=7.75

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26001

5MEU,MTEU,MU..MX6#

WD=2.6,CW=7.75

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45002

5MEU,MTEU,MU..MX6#

WD=4.5,CW=6.2

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45002

5MEU,MTEU,MU..MX6#

WD=4.5,CW=6.2

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-14310

5MEU,MTEU,MU..MX6#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-14310

5MEU,MTEU,MU..MX6#

 12
13715 - VALVE, EXHAUST
13715-45010

5MEU..MX63

 6
13741 - RETAINER, VALVE SPRING
13741-41010

5MEU,MTEU,MU..MX6#

 12
13741 - RETAINER, VALVE SPRING
13741-41010

5MEU,MTEU,MU..MX6#

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

5MEU,MTEU,MU..MX6#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

5MEU,MTEU,MU..MX6#

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-41051

5MEU,MTEU,MU..MX6#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-41051

5MEU,MTEU,MU..MX6#

 12
13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM)
90999-73076

5MEU,MTEU,MU..MX6#

 12
13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM)
90999-73076

5MEU,MTEU,MU..MX6#

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08210

5MEU,MU..MX6#

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08210

5MEU,MU..MX6#

 12
13801C - SCREW, VALVE ADJUSTING
90913-05016

5MEU,MU..MX6#

 12
13801C - SCREW, VALVE ADJUSTING
90913-05016

5MEU,MU..MX6#

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14013

5MEU,MTEU,MU..MX6#

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14013

5MEU,MTEU,MU..MX6#

 12
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-45010

5MEU,MTEU,MU..MX6#

 1
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

5MEU,MTEU,MU..MX6#

 1
13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13902-45011

5MEU,MTEU,MU..MX6#

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-45011

5MEU,MTEU,MU..MX6#

 1
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

5MEU,MTEU,MU..MX6#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-45010

5MEU,MTEU,MU..MX6#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-45010

5MEU,MTEU,MU..MX6#

 2
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-45011

5MEU,MTEU,MU..MX6#

 2
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-45011

5MEU,MTEU,MU..MX6#

 2
13954 - SUPPORT, VALVE ROCKER, NO.4
13954-45012

5MEU,MTEU,MU..MX6#

 1
13955 - SUPPORT, VALVE ROCKER, NO.5
13955-45010

5MEU,MTEU,MU..MX6#

 1
Linked diagrams
1104
