MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)5MEU

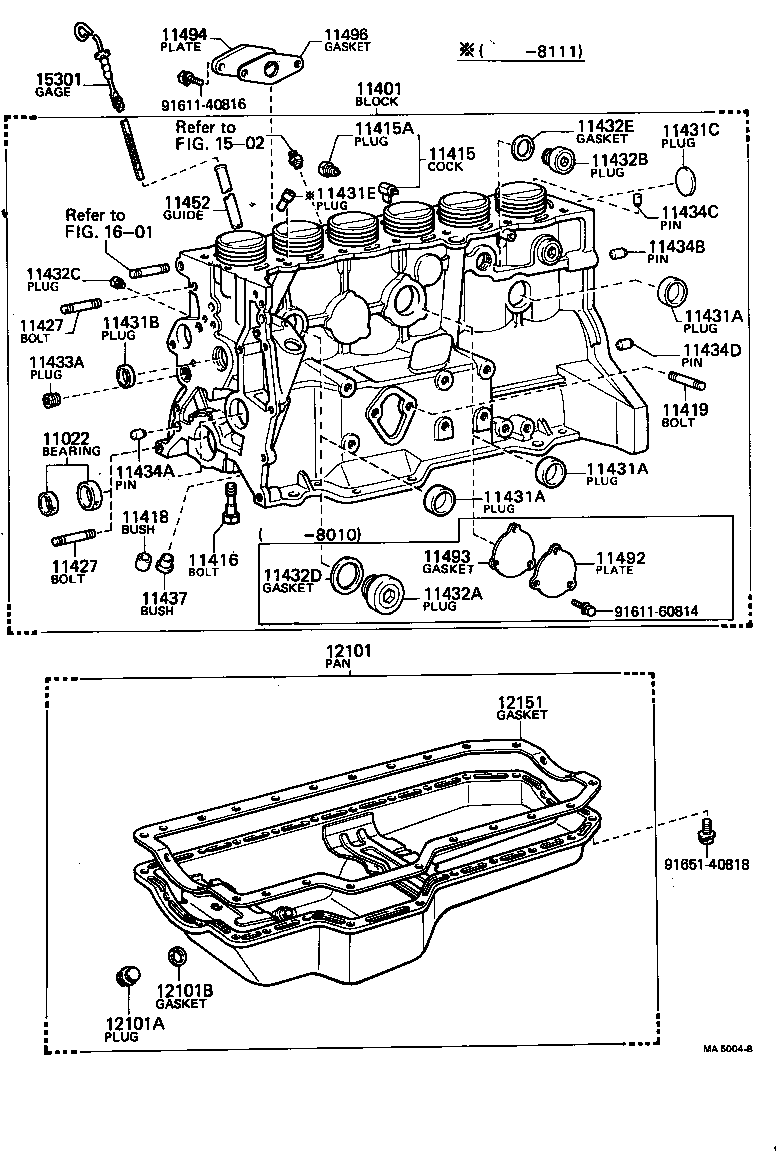

Click highlighted areas on diagram

diagram 11022 11401 11415 11415A 11416 11418 11419 11427 11427 11431A 11431A 11431A 11431B 11431C 11431E 11432A 11432B 11432C 11432D 11432E 11433A 11434A 11434B 11434C 11434D 11437 11452 11492 11493 11494 11496 12101 12101A 12101B 12151 1502 15301 1601 9161140816 9161160814 9165140818
Part # Description Qty Price
11022 - BEARING SET, PUMP DRIVE SHAFT
11022-41010

5MEU,MTEU,MU..MX6#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49275

5MEU..MX63

 1
11401-49276

5MEU..MX63

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09070

5MEU,MTEU,MU..MX6#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

5MEU,MTEU,MU..MX6#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02047

5MEU,MTEU,MU..MX6#

*12-1.25PX67-22

 14
11418 - BUSH, SOLID(FOR DISTRIBUTOR)
90999-70056

5MEU,MTEU,MU..MX6#

 1
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08185

5MEU,MTEU,MU..MX6#

L=39,S=25&9

 2
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08121

5MEU,MU..MX6#

L=65,S=12&12

 1
90116-10010

5MEU,MTEU,MU..MX6#

L=80,S=12&26

 1
11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET)
90116-08121

5MEU,MU..MX6#

L=65,S=12&12

 1
90116-10010

5MEU,MTEU,MU..MX6#

L=80,S=12&26

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MEU,MTEU,MU..MX6#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MEU,MTEU,MU..MX6#

OD=40

 7
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-44000

5MEU,MTEU,MU..MX6#

OD=40

 7
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96412-43500

5MEU,MTEU,MU..MX6#

OD=35

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

5MEU,MTEU,MU..MX6#

OD=35

 1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11444-43010

5MEU..MX63

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-42066

5MEU..MX63

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

5MEU..MX63

 3
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51025

5MEU,MTEU,MU..MX6#

 2
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90430-42223

5MEU..MX63

 1
11432E - GASKET, W/HEAD TAPER SCREW PLUG
90430-32222

5MEU..MX63

 3
11433A - PLUG, STRAIGHT, NO.1
90344-53015

5MEU,MTEU,MU..MX6#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-10192

5MEU,MTEU,MU..MX6#

長さ=22,外径=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

5MEU,MTEU,MU..MX6#

長さ=22,外径=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08112

5MEU,MTEU,MU..MX6#

長さ=16,外径=8,L=16,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-10192

5MEU,MTEU,MU..MX6#

長さ=22,外径=10,L=22,OD=10

 2
11437 - BUSH, OIL PUMP SHAFT GUIDE
11437-45010

5MEU,MTEU,MU..MX6#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-41020

5MEU,MU..MX60,63

 1
11492 - PLATE, WATER SEAL
11492-45010

5MEU..MX63

 2
11493 - GASKET, WATER SEAL PLATE
11493-45010

5MEU..MX63

 2
11494 - PLATE, OIL HOLE COVER
11494-45010

5MEU,MU..MX60,63

FR

 1
11496 - GASKET, OIL HOLE COVER PLATE
15318-45011

5MEU,MU..MX60,63

FR

 1
12101 - PAN SUB-ASSY, OIL
12101-49275

5MEU,MU..MX60,63

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

5MEU,MTEU,MU..MX6#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

5MEU,MTEU,MU..MX6#

 1
12151 - GASKET, OIL PAN
12151-41010

5MEU,MTEU,MU..MX6#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-45010

5MEU,MU..MX60,63

 1
Common parts
91611-40816
91611-60814
91651-40818
Linked diagrams
1502
1601
