MX63-XTPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )5MEU,MU

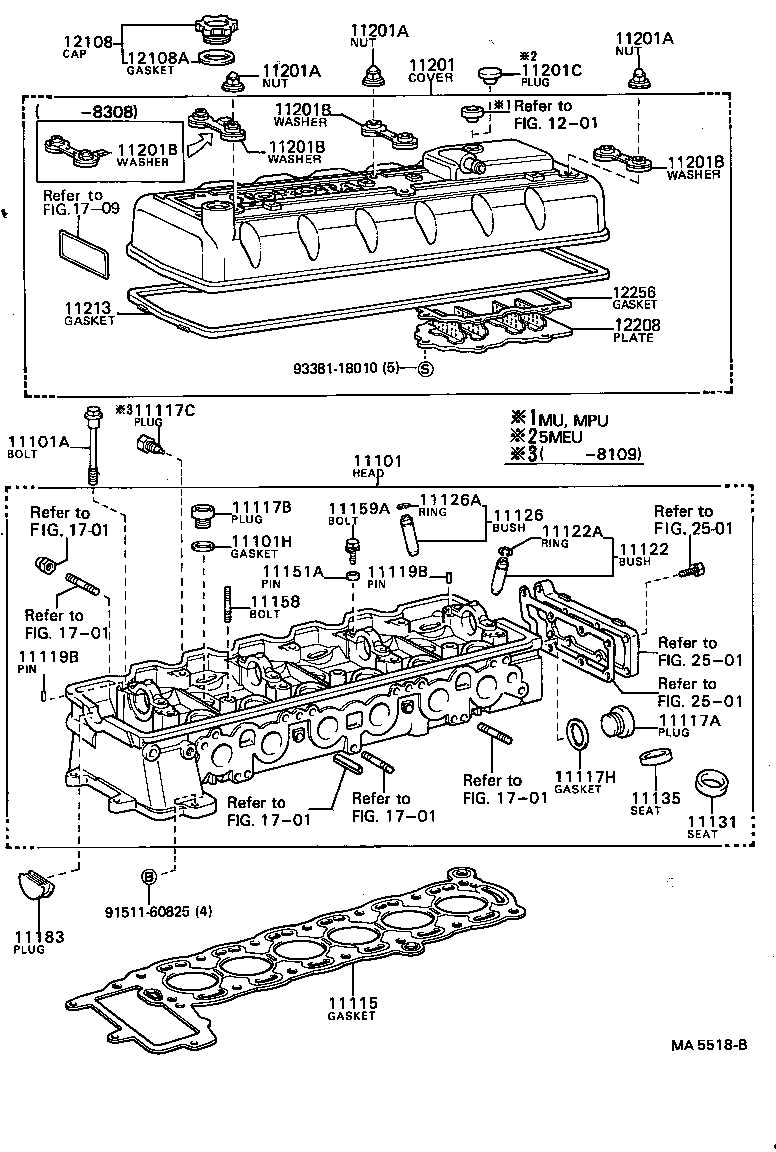

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11117B 11117C 11117H 11119B 11119B 11122 11122A 11126 11126A 11131 11135 11151A 11158 11159A 11183 11201 11201A 11201A 11201A 11201B 11201B 11201B 11201B 11201C 11213 1201 12108 12108A 12208 12256 1701 1701 1701 1701 1701 1709 2501 2501 2501 9151160825 9338118010
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49255

5MEU..MX63

 1
11101-49256

5MEU..MX63

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

5MEU,MTEU,MU..MX6#

*12-1.25PX166.5-21

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

5MEU,MTEU,MU..MX6#

 3
11115 - GASKET, CYLINDER HEAD
11115-43021

5MEU..MX63

 1
11115-43020

5MEU..MX63

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-36001

5MEU,MTEU,MU..MX6#

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32070

5MEU,MTEU,MU..MX6#

 3
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90341-14005

5MEU..MX63

 6
11117H - GASKET(FOR WATER HOLE)
90430-36001

5MEU,MTEU,MU..MX6#

 1
11119B - PIN, STRAIGHT, NO.2
90253-08001

5MEU,MTEU,MU..MX6#

長さ=18,外径=7.9,L=18,OD=7.9

 2
11119B - PIN, STRAIGHT, NO.2
90253-08001

5MEU,MTEU,MU..MX6#

長さ=18,外径=7.9,L=18,OD=7.9

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-41020

5MEU,MTEU,MU..MX6#

STD,STD

 6
11123-41020

5MEU,MTEU,MU..MX6#

O/S 0.05,O/S 0.05

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

5MEU,MTEU,MU..MX6#

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-45020

5MEU,MU..MX6#

STD,STD

 6
11127-45020

5MEU,MU..MX6#

O/S 0.05,O/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

5MEU,MTEU,MU..MX6#

 6
11131 - SEAT, INTAKE VALVE
11131-43010

5MEU,MTEU,MU..MX6#

STD,STD

 6
11132-43010

5MEU,MTEU,MU..MX6#

O/S 0.03,O/S 0.03

 6
11135 - SEAT, EXHAUST VALVE
11135-45010

5MEU..MX63

STD,STD

 6
11136-45010

5MEU..MX63

O/S 0.03,O/S 0.03

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

5MEU,MTEU,MU..MX6#

長さ=8,外径=11

 8
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-08003

5MEU,MU..MX60,63

長さ=51,L=51,S=14&8.5

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91611-60825

5MEU,MTEU,MU..MX6#

 8
11183 - PLUG, SEMICIRCULAR
11183-45010

5MEU,MTEU,MU..MX6#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-49146

5MEU,MU..MX60,63

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5MEU,MTEU,MU..MX6#

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5MEU,MTEU,MU..MX6#

 6
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08015

5MEU,MTEU,MU..MX6#

 6
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

5MEU,MU..MX60,63

CTR,RR

 2
90210-09003

5MEU,MTEU,MU..MX6#

FR

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

5MEU,MU..MX60,63

CTR,RR

 2
90210-09003

5MEU,MTEU,MU..MX6#

FR

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

5MEU,MU..MX60,63

CTR,RR

 2
90210-09003

5MEU,MTEU,MU..MX6#

FR

 1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09002

5MEU,MU..MX60,63

CTR,RR

 2
90210-09003

5MEU,MTEU,MU..MX6#

FR

 1
11201C - PLUG(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE)
90339-19001

5MEU..MX63

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-41020

5MEU,MTEU,MU..MX6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

5MEU,MTEU,MU..MX6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5MEU,MTEU,MU..MX6#

 1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-41010

5MEU,MTEU,MU..MX6#

 1
12256 - GASKET, VENTILATION BAFFLE
12256-41021

5MEU,MTEU,MU..MX6#

 1
Common parts
91511-60825
93381-18010
Linked diagrams
1201
1701
1709
2501
