MX63-XEPQE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 5MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

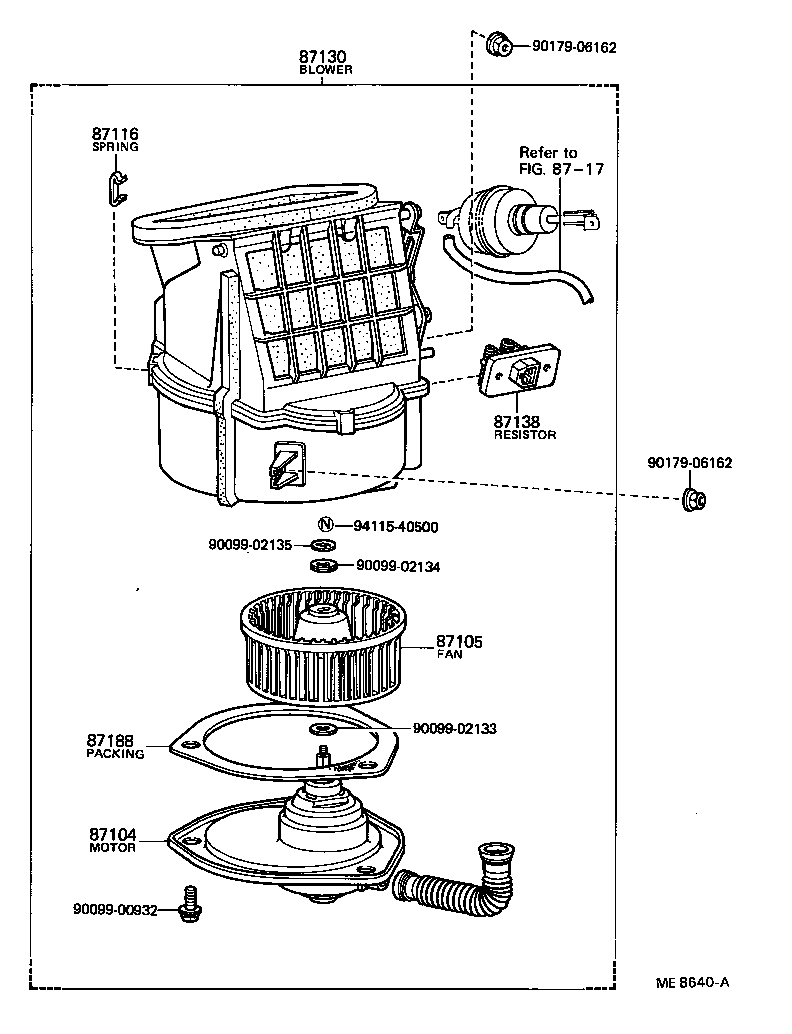

ILLUST NO. 2 OF 2(8009- )

Click highlighted areas on diagram

diagram 87104 87105 87116 87130 87138 8717 87188 9009900932 9009902133 9009902134 9009902135 9017906162 9017906162 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22100

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 10
87130 - BLOWER ASSY, HEATER, FRONT
87130-22040

GX61,MX61,63..GD

 1
87138 - RESISTOR, HEATER BLOWER
88635-22020

GX6#,MX61,63

W/AUTOMATIC AIR CONDITIONER

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
Common parts
90099-00932
90099-02133
90099-02134
90099-02135
90179-06162
94115-40500
Linked diagrams
8717

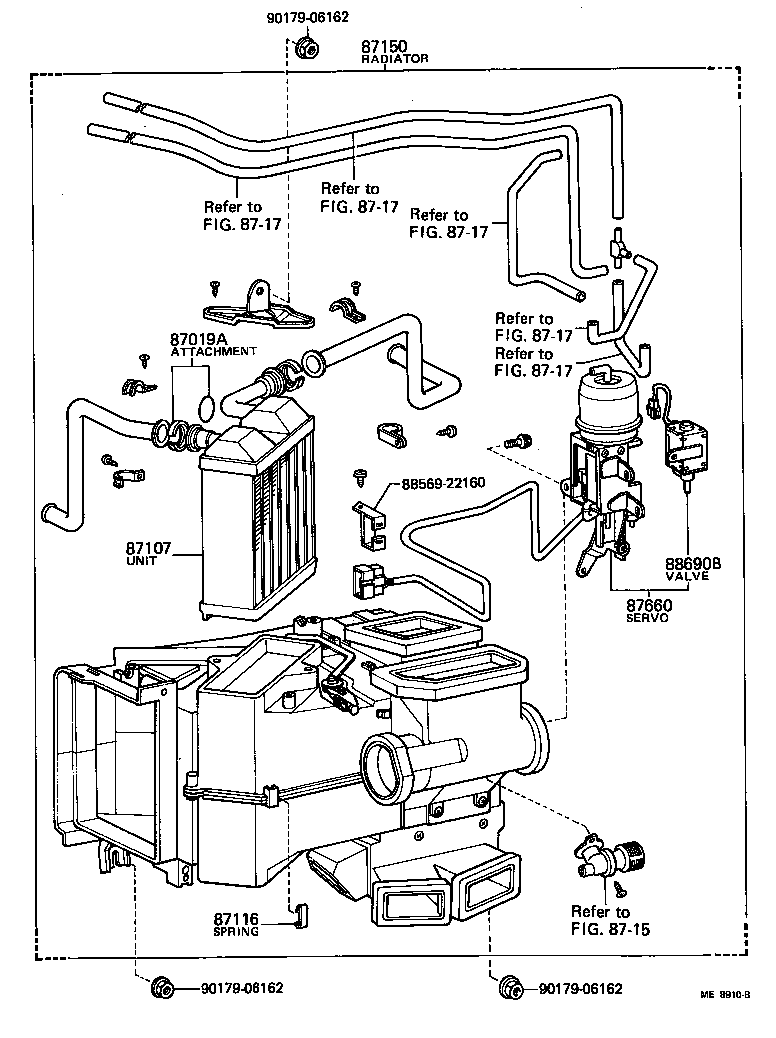

ILLUST NO. 1 OF 2(8009- )GD

Click highlighted areas on diagram

diagram 87019A 87107 87116 8715 87150 8717 8717 8717 8717 8717 87660 8856922160 88690B 9017906162 9017906162 9017906162
Part # Description Qty Price
87019A - ATTACHMENT, HEATER
87019-32010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22090

GX6#,LX6#,MX6#

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 10
87150 - RADIATOR ASSY, HEATER
87150-22101

GX61,MX61,63..GD

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22040

GX61,MX61,63..GD

 1
88690B - VALVE ASSY, COOLER MAGNET
88690-22160

GX61,MX61,63..GD

 1
Common parts
88569-22160
90179-06162
Linked diagrams
8715
8717
