MX63-XEPQE (1980)
Toyota Mark 2

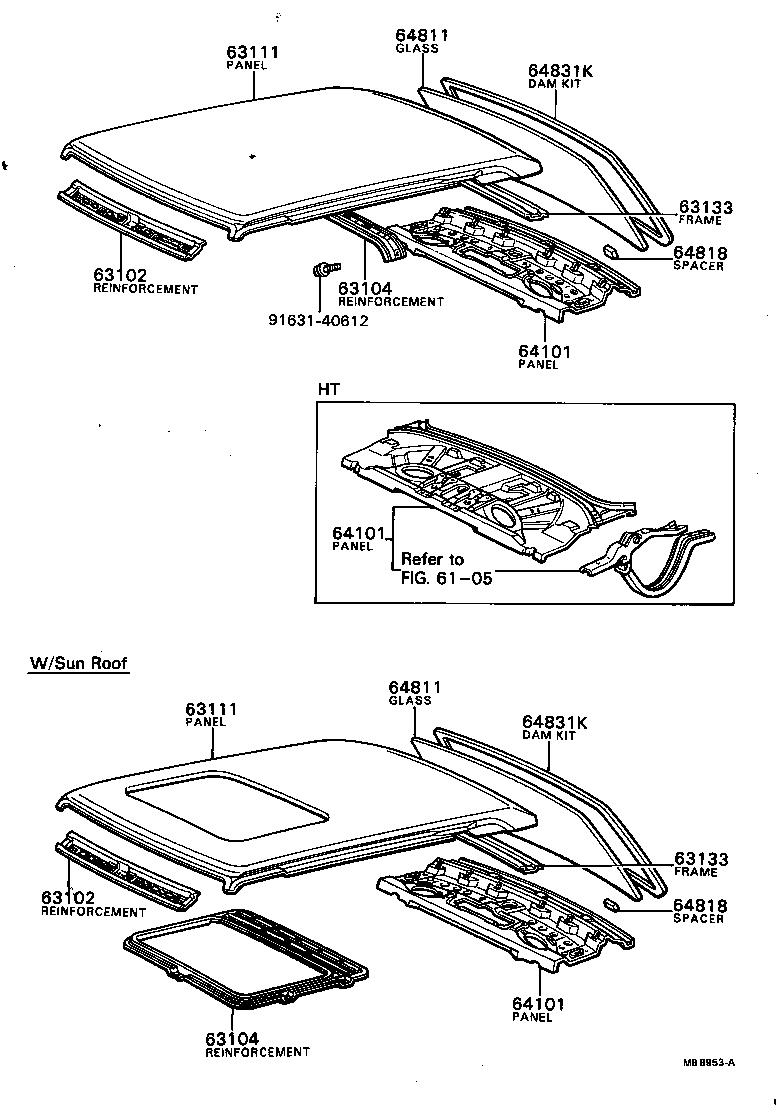

ILLUST NO. 1 OF 2(8009- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-22070 |
GX6#,MX61,63..SED..(GD,LG,LGT) |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-22070 |
GX6#,MX61,63..SED..(GD,LG,LGT) |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-22050 |
GX61,MX61,63..SED..GD |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-22050 |
GX61,MX61,63..SED..GD |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22080 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22080 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-22050 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-22050 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22130 |
GX6#,LX60,MX63,RX6#,TX60..SED |
1 | ||
| 64101-22131 |
GX6#,LX60,MX63,RX6#,TX60..SED |
1 | ||
| 64101-22140 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) W/RR WIPER |
1 | ||
| 64101-22141 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) W/RR WIPER |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22130 |
GX6#,LX60,MX63,RX6#,TX60..SED |
1 | ||
| 64101-22131 |
GX6#,LX60,MX63,RX6#,TX60..SED |
1 | ||
| 64101-22140 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) W/RR WIPER |
1 | ||
| 64101-22141 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) W/RR WIPER |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22130 |
GX6#,LX60,MX63,RX6#,TX60..SED |
1 | ||
| 64101-22131 |
GX6#,LX60,MX63,RX6#,TX60..SED |
1 | ||
| 64101-22140 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) W/RR WIPER |
1 | ||
| 64101-22141 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) W/RR WIPER |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-22200 |
GX6#,LX60,MX6#,RX6#,TX60..SED *EHTT,T=4.0 |
1 | ||
| 64811-22210 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) *EHTT,T=4.0,W/RR WIPER |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-22200 |
GX6#,LX60,MX6#,RX6#,TX60..SED *EHTT,T=4.0 |
1 | ||
| 64811-22210 |
GX6#,MX63,RX63..SED..(GD,GT,LG,LGT) *EHTT,T=4.0,W/RR WIPER |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-30020 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-30020 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED |
2 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30030 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED |
1 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30030 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED |
1 | ||
| Common parts | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 6105 | ||||
ILLUST NO. 2 OF 2(8009- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60219 | ||||
| 90162-50004 | ||||
| 90162-50007 | ||||
| 90179-06070 | ||||
| 90179-06175 | ||||
| 90189-04014 | ||||
| 90333-30002 | ||||
| 90467-11085 | ||||
| 90467-14001 | ||||
| 90480-01124 | ||||
| 90480-26004 | ||||
| 93229-15008 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||
| 93560-54010 | ||||
