MX61-XTPST (1981)

Toyota Mark 2

Production Oct 1981 - Jul 1984
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

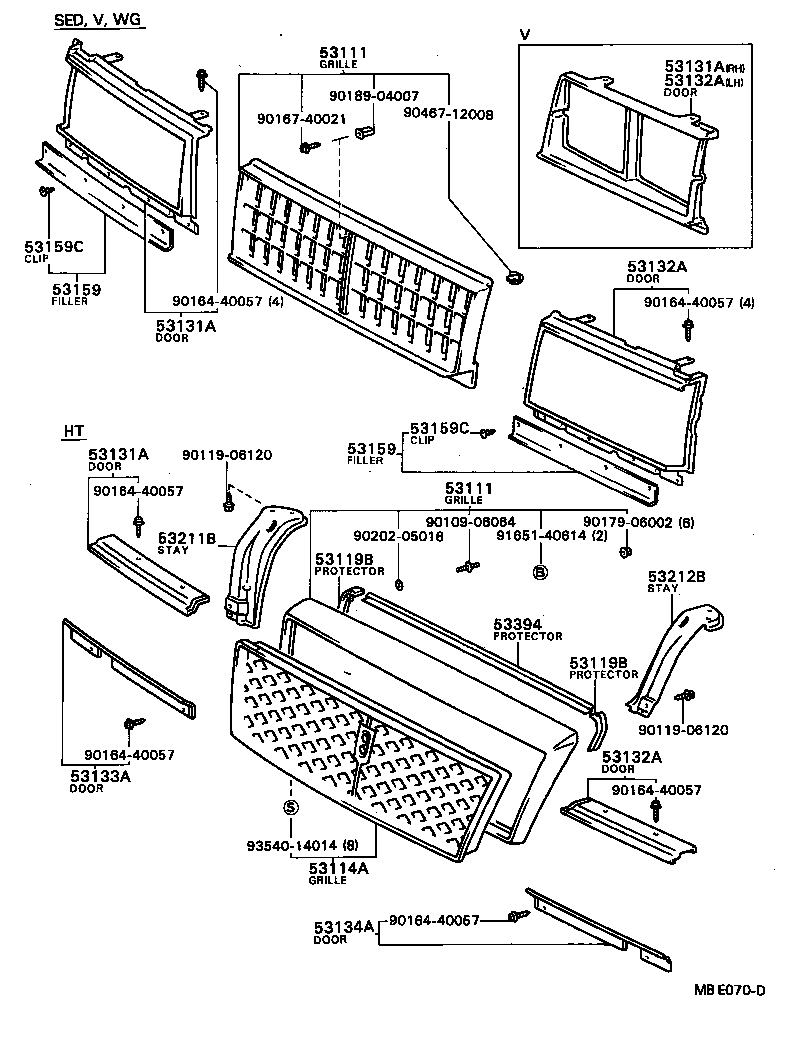

Click highlighted areas on diagram

diagram 53111 53111 53111C 53111G 53131A 53131A 53131A 53132A 53132A 53132A 53139 53139 53139 9016740012 9016740012 9016744002 9016744002 9016744002 9016744002 9016744002 9018904007 9018904007 9018904015 9018904032 9018904032 9046712008 9046713005
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-29115

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
53111-29185

GX61,MX61,SX60..HT

 1
53111 - GRILLE, RADIATOR
53100-29115

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
53111-29185

GX61,MX61,SX60..HT

 1
53111C - MOULDING, RADIATOR GRILLE, UPPER
53121-95800

GX6#,MX61,63,RX6#,TX60..HT

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53122-95800

GX6#,MX61,63,RX6#,TX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29255

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53131-29375

GX61,MX61,SX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29255

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53131-29375

GX61,MX61,SX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29255

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53131-29375

GX61,MX61,SX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29235

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53132-29355

GX61,MX61,SX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29235

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53132-29355

GX61,MX61,SX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29235

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53132-29355

GX61,MX61,SX60..HT

 1
Common parts
90167-40012
90167-44002
90189-04007
90189-04015
90189-04032
90467-12008
90467-13005

(8208- )

Click highlighted areas on diagram

diagram 53111 53111 53114A 53119B 53119B 53131A 53131A 53131A 53132A 53132A 53132A 53133A 53134A 53159 53159 53159C 53159C 53211B 53212B 53394 9010906064 9011906120 9011906120 9016440057 9016440057 9016440057 9016440057 9016440057 9016440057 9016740021 9017906002 9018904007 9020205016 9046712008 9165140614 9354014014
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-29115

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
53111-29185

GX61,MX61,SX60..HT

 1
53111 - GRILLE, RADIATOR
53100-29115

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
53111-29185

GX61,MX61,SX60..HT

 1
53114A - GRILLE, RADIATOR, INNER
53114-29015

GX61,MX61,SX60..HT

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-95803

GX61,MX61,SX60..HT

RH

 1
53149-95801

GX61,MX61,SX60..HT

LH

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-95803

GX61,MX61,SX60..HT

RH

 1
53149-95801

GX61,MX61,SX60..HT

LH

 1
53131A - DOOR, HEADLAMP, RH
53131-29255

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53131-29375

GX61,MX61,SX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29255

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53131-29375

GX61,MX61,SX60..HT

 1
53131A - DOOR, HEADLAMP, RH
53131-29255

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53131-29375

GX61,MX61,SX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29235

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53132-29355

GX61,MX61,SX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29235

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53132-29355

GX61,MX61,SX60..HT

 1
53132A - DOOR, HEADLAMP, LH
53132-29235

MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53132-29355

GX61,MX61,SX60..HT

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-29055

GX61..HT..GD;MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53133-29045

GX61,MX61,SX60..HT

 1
53133-29055

GX61,MX61..HT..(GD,LGT)

W/HEADLAMP CLEANER

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-29045

GX61,MX61,SX60..HT

 1
53134-29055

GX61..HT..GD;MX61..HT..LGT

W/HEADLAMP CLEANER

 1
53134-29055

GX61,MX61..HT..(GD,LGT)

W/HEADLAMP CLEANER

 1
53211B - STAY, RADIATOR GRILLE, RH
53211-95800

GX61,MX61,SX60..HT

 1
53212B - STAY,RADIATOR GRILLE, LH
53212-95800

GX61,MX61,SX60..HT

 1
53394 - PROTECTOR, HOOD, FRONT
53393-95800

GX61,MX61,SX60..HT

 1
Common parts
90109-06064
90119-06120
90164-40057
90167-40021
90179-06002
90189-04007
90202-05016
90467-12008
91651-40614
93540-14014
