MX61-XTPQT (1981)
Toyota Mark 2

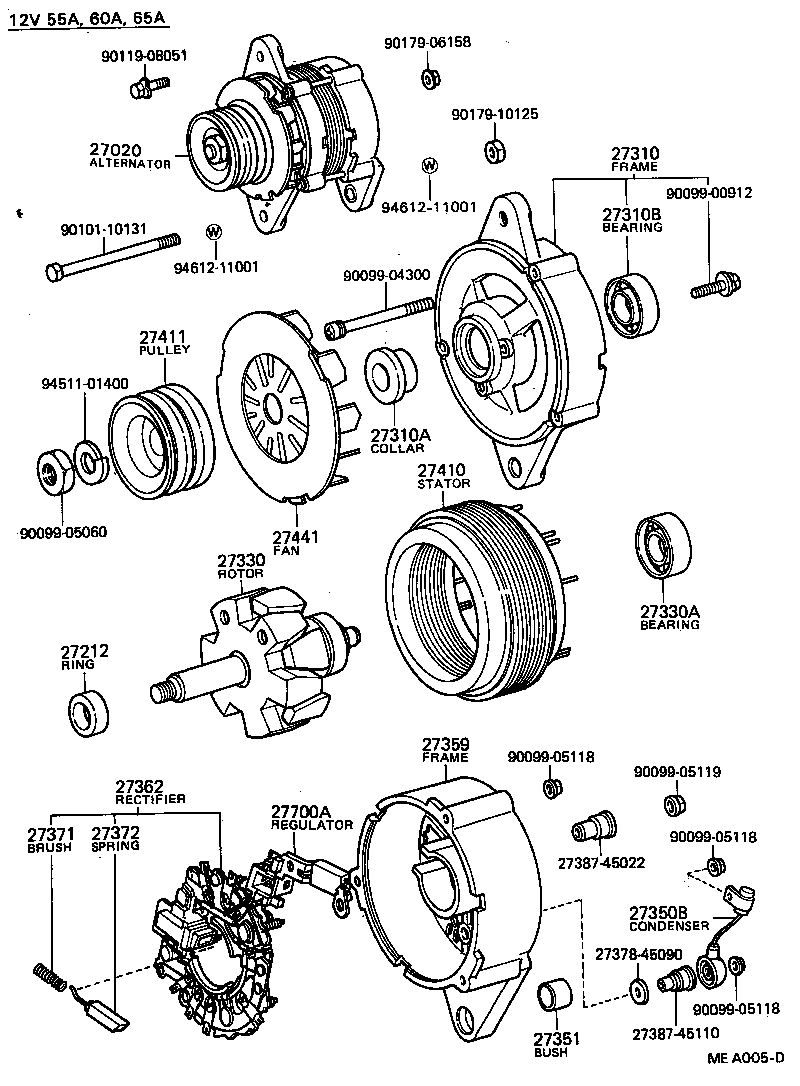

(8009-8308)5MEU,MU ; (8110-8308)MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-43020 |
5MEU,MTEU,MU..MX6# 12V 60A |
1 | ||
| 27060-43030 |
MTEU,MU..MX60,61 12V 65A,12V 65A |
1 | ||
| 27060-43060 |
MTEU,MU..MX6# 12V 60A,12V 60A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-61070 |
5MEU,MTEU,MU..MX6# 12V 55A,60A |
1 | ||
| 27310-43040 |
MTEU,MU..MX60,61 12V 65A |
1 | ||
| 27310-45110 |
5MEU,MTEU,MU..MX6# 12V 55A,60A |
1 | ||
| 27310-72010 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27310-72050 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 90099-10141 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A,OD=42 |
1 | ||
| 90099-10152 |
1G#,MTEU,MU..GX6#,MX6# 12V 60A,70A,OD=43 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-15070 |
18RGEU,5MEU,MTEU,MU..MX6#,RX63 12V 55A,60A |
1 | ||
| 27330-43040 |
1GEU,MTEU,MU..GX6#,MX60,61 12V 65A |
1 | ||
| 27330-63021 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 90099-10140 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
21RU,13T#,18RGEU,5MEU,1SU,MTEU,MU..MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16010 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27359-43020 |
5MEU,MTEU,MU..MX6# 12V 55A,60A,65A |
1 | ||
| 27359-43050 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-43040 |
18RGEU,5MEU,MTEU,MU..MX6#,RX63 12V 60A,65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
2 | ||
| 27371-31011 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
2 | ||
| 27372-63020 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
18RGEU,1GEU,5MEU,MTEU,MU..GX6#,MX6#,RX63 12V 60A |
1 | ||
| 27410-43040 |
1GEU,MTEU,MU..GX6#,MX60,61 12V 65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-41071 |
5MEU,MTEU,MU..MX6# 12V 55A,60A,65A |
1 | ||
| 27411-43050 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45110 |
18RGEU,1GEU,5MEU,MTEU,MU..GX6#,MX6#,RX63 12V 55A,60A |
1 | ||
| 27441-44050 |
MTEU,MU..MX60,61 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-43010 |
18RGEU,5MEU,MTEU,MU..MX6#,RX63 12V 55A,60A,65A |
1 | ||
| 27700-63021 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10131 | ||||
| 90119-08051 | ||||
| 90179-06158 | ||||
| 90179-10125 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||

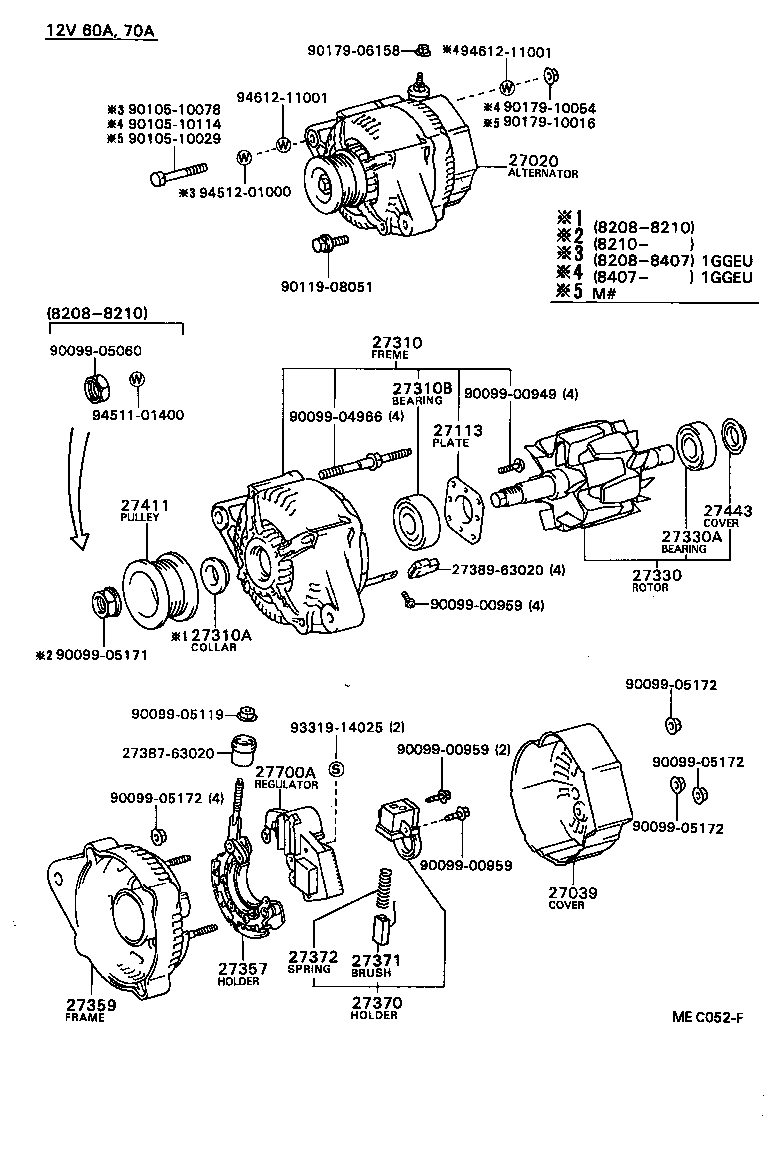

(8208- )1GGEU ; (8308- )MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-43020 |
5MEU,MTEU,MU..MX6# 12V 60A |
1 | ||
| 27060-43030 |
MTEU,MU..MX60,61 12V 65A,12V 65A |
1 | ||
| 27060-43060 |
MTEU,MU..MX6# 12V 60A,12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-63021 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-61070 |
5MEU,MTEU,MU..MX6# 12V 55A,60A |
1 | ||
| 27310-43040 |
MTEU,MU..MX60,61 12V 65A |
1 | ||
| 27310-45110 |
5MEU,MTEU,MU..MX6# 12V 55A,60A |
1 | ||
| 27310-72010 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27310-72050 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 90099-10141 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A,OD=42 |
1 | ||
| 90099-10152 |
1G#,MTEU,MU..GX6#,MX6# 12V 60A,70A,OD=43 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-15070 |
18RGEU,5MEU,MTEU,MU..MX6#,RX63 12V 55A,60A |
1 | ||
| 27330-43040 |
1GEU,MTEU,MU..GX6#,MX60,61 12V 65A |
1 | ||
| 27330-63021 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
1 | ||
| 90099-10140 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16010 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27359-43020 |
5MEU,MTEU,MU..MX6# 12V 55A,60A,65A |
1 | ||
| 27359-43050 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63020 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27370-63021 |
1GGEU,MTEU,MU..GX61,MX6# 12V 60A,70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
2 | ||
| 27371-31011 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21RU,13T#,18RGEU,1GEU,5MEU,1SU,MTEU,MU..GX6#,MX6#,RX6#,SX60,TX6# 12V 55A,60A,65A |
2 | ||
| 27372-63020 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-41071 |
5MEU,MTEU,MU..MX6# 12V 55A,60A,65A |
1 | ||
| 27411-43050 |
MTEU,MU..MX6# 12V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-43010 |
18RGEU,5MEU,MTEU,MU..MX6#,RX63 12V 55A,60A,65A |
1 | ||
| 27700-63021 |
1GEU,MTEU,MU..GX6#,MX6# 12V 60A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05060 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10029 | ||||
| 90105-10078 | ||||
| 90105-10114 | ||||
| 90119-08051 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90179-10054 | ||||
| 93319-14025 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
