MX61-XTPQT (1981)
Toyota Mark 2

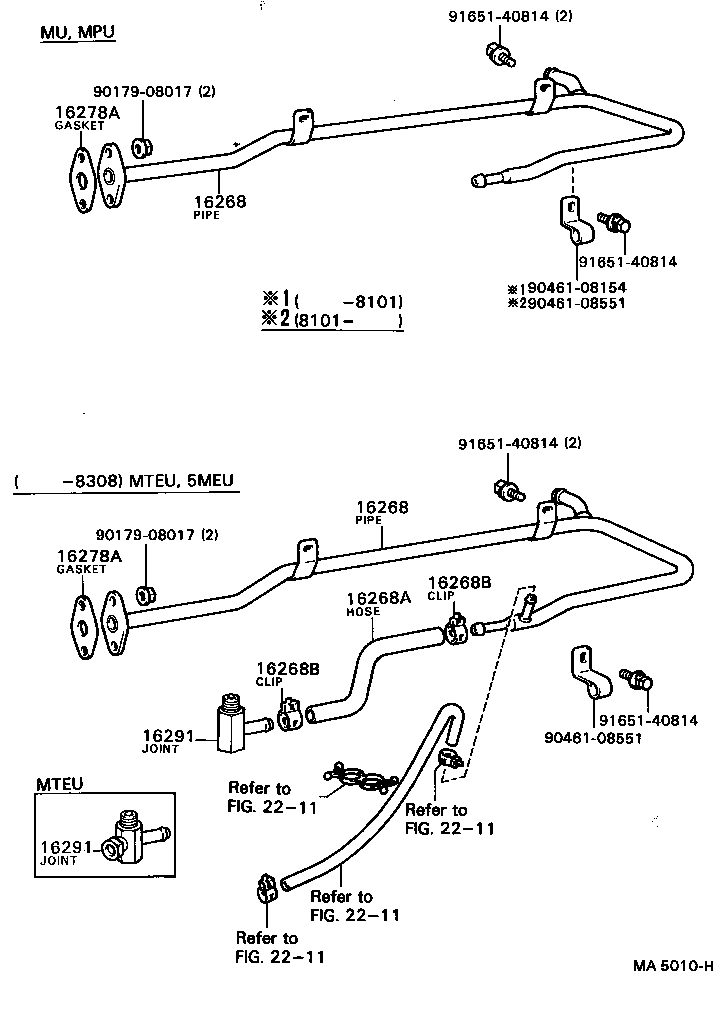

ILLUST NO. 2 OF 3(8009-8308)5MEU,MTEU,MU ; (8308- )MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5MEU,MTEU..MX61,63 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5MEU,MTEU..MX61,63 |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53032 |
MTEU..MX61 |
1 | ||
| 90404-53034 |
MTEU..MX61 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53032 |
MTEU..MX61 |
1 | ||
| 90404-53034 |
MTEU..MX61 |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-08154 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(8308- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-41090 |
MTEU..MX61 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
MTEU..MX61 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
MTEU..MX61 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41140 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
5MEU,MTEU..MX61,63 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5MEU,MTEU..MX61,63 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
5MEU,MTEU..MX61,63 |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
MTEU..MX61 TURBO SIDE |
4 | ||
| 90430-12005 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
4 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX61 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX61 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX61 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18012 |
MTEU..MX61 TURBO SIDE |
2 | ||
| 90401-12097 |
MTEU..MX61 WATER PUMP & MANIFOLD SIDE |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-41030 |
MTEU..MX61 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
5MEU,MTEU,MU..MX6# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-41020 |
MTEU..MX61 |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-41010 |
MTEU..MX61 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53032 |
MTEU..MX61 |
1 | ||
| 90404-53034 |
MTEU..MX61 |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90179-08146 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||
