MX61-XEPST (1981)
Toyota Mark 2

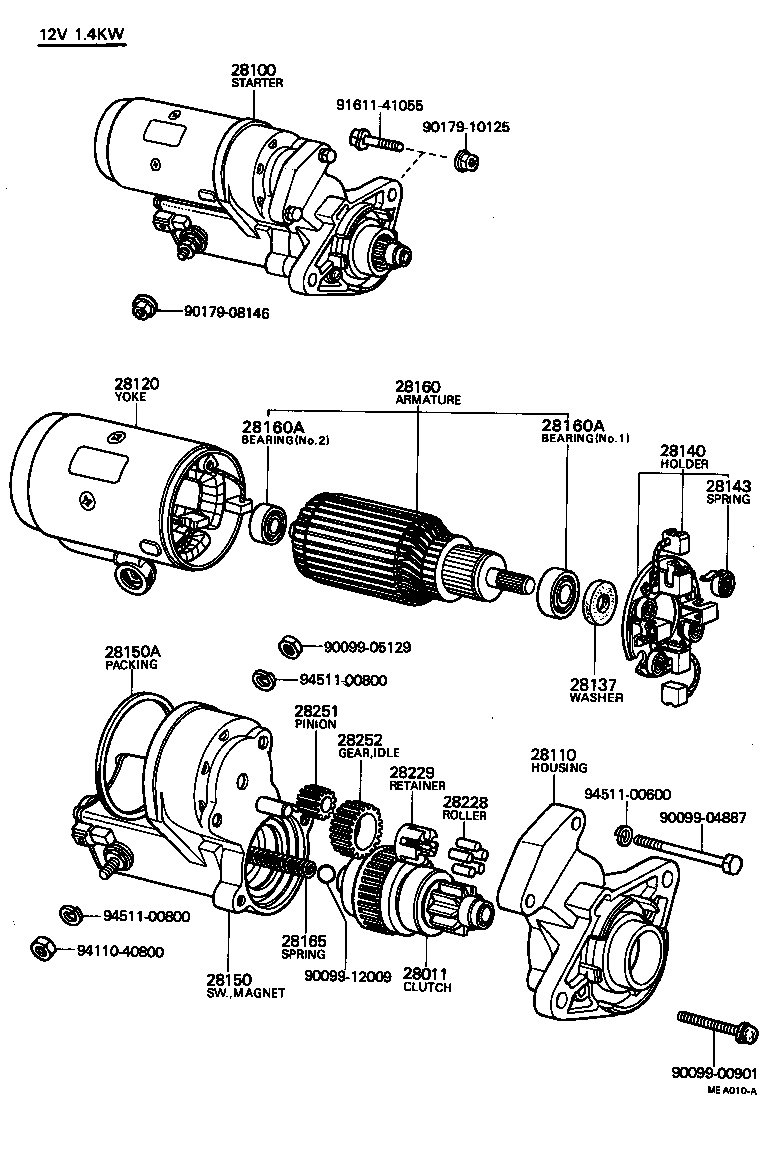

(8009-8308)5MEU,MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28011-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-45033 |
5MEU,MTEU,MU..MX6# 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-41050 |
MTEU..MX61 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-45050 |
MTEU,MU..MX6# 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-45021 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28110-45050 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28110-41050 |
MTEU..MX61 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-34030 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28120-15010 |
21RU,18RGEU,MTEU..MX61,RX6# 12V 0.8KW |
1 | ||
| 28120-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02202 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28140-34030 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28140-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
13T#,MTEU..MX61,TX6# 12V 0.8KW |
1 | ||
| 28150-37010 |
13TJ,MTEU..MX61,TX67 12V 0.8KW |
1 | ||
| 28150-45032 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150-45050 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-14064 |
MTEU,MU..MX6# 12V 1.4KW |
2 | ||
| 90099-06031 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26050 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28160-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2 |
1 | ||
| 90099-10107 |
L,2LTE,5MEU,MTEU,MU..LX6#,MX6# 12V 1.4KW,2.5KW,NO.1 |
1 | ||
| 90099-10143 |
MTEU,MU..MX6# 12V 1.4KW,NO.1 |
1 | ||
| 90099-10144 |
MTEU,MU..MX6# 12V 1.4KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2 |
1 | ||
| 90099-10107 |
L,2LTE,5MEU,MTEU,MU..LX6#,MX6# 12V 1.4KW,2.5KW,NO.1 |
1 | ||
| 90099-10143 |
MTEU,MU..MX6# 12V 1.4KW,NO.1 |
1 | ||
| 90099-10144 |
MTEU,MU..MX6# 12V 1.4KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-45020 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28251-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| Common parts | ||||
| 90009-04887 | ||||
| 90099-00901 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-41055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(8110- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28011-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-45033 |
5MEU,MTEU,MU..MX6# 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-41050 |
MTEU..MX61 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-45050 |
MTEU,MU..MX6# 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-45021 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28110-45050 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28110-41050 |
MTEU..MX61 12V 0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28199-77090 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-34030 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28120-15010 |
21RU,18RGEU,MTEU..MX61,RX6# 12V 0.8KW |
1 | ||
| 28120-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15010 |
MTEU..MX61 12V 0.8KW |
1 | ||
| 28130-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28140-34030 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28140-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
13T#,MTEU..MX61,TX6# 12V 0.8KW |
1 | ||
| 28150-37010 |
13TJ,MTEU..MX61,TX67 12V 0.8KW |
1 | ||
| 28150-45032 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150-45050 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28159-15010 |
MTEU..MX61 12V 0.8KW |
1 | ||
| 28159-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26050 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28160-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
21RU,18RGEU,5MEU,MTEU,MU..MX6#,RX6# 12V 0.8KW,1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
21RU,18RGEU,5MEU,MTEU,MU..MX6#,RX6# 12V 0.8KW,1.0KW |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-01467 | ||||
| 90099-04921 | ||||
| 90099-05148 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-41055 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
(8308- )MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28011-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-45033 |
5MEU,MTEU,MU..MX6# 12V 1.4KW,12V 1.4KW |
1 | ||
| 28100-41050 |
MTEU..MX61 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-45050 |
MTEU,MU..MX6# 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-45021 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28110-45050 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28110-41050 |
MTEU..MX61 12V 0.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28199-77090 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-34030 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28120-15010 |
21RU,18RGEU,MTEU..MX61,RX6# 12V 0.8KW |
1 | ||
| 28120-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15010 |
MTEU..MX61 12V 0.8KW |
1 | ||
| 28130-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28140-34030 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28140-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15012 |
13T#,MTEU..MX61,TX6# 12V 0.8KW |
1 | ||
| 28150-37010 |
13TJ,MTEU..MX61,TX67 12V 0.8KW |
1 | ||
| 28150-45032 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150-45050 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-14064 |
MTEU,MU..MX6# 12V 1.4KW |
2 | ||
| 90099-06031 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-14064 |
MTEU,MU..MX6# 12V 1.4KW |
2 | ||
| 90099-06031 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26050 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160-15010 |
21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6# 12V 0.8KW |
1 | ||
| 28160-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2 |
1 | ||
| 90099-10107 |
L,2LTE,5MEU,MTEU,MU..LX6#,MX6# 12V 1.4KW,2.5KW,NO.1 |
1 | ||
| 90099-10143 |
MTEU,MU..MX6# 12V 1.4KW,NO.1 |
1 | ||
| 90099-10144 |
MTEU,MU..MX6# 12V 1.4KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2 |
1 | ||
| 90099-10107 |
L,2LTE,5MEU,MTEU,MU..LX6#,MX6# 12V 1.4KW,2.5KW,NO.1 |
1 | ||
| 90099-10143 |
MTEU,MU..MX6# 12V 1.4KW,NO.1 |
1 | ||
| 90099-10144 |
MTEU,MU..MX6# 12V 1.4KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-45020 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28251-15090 |
MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
5MEU,MTEU,MU..MX6# 12V 1.4KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-41055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
