MX61-XEPQT (1981)

Toyota Mark 2

Production Oct 1981 - Jul 1984
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

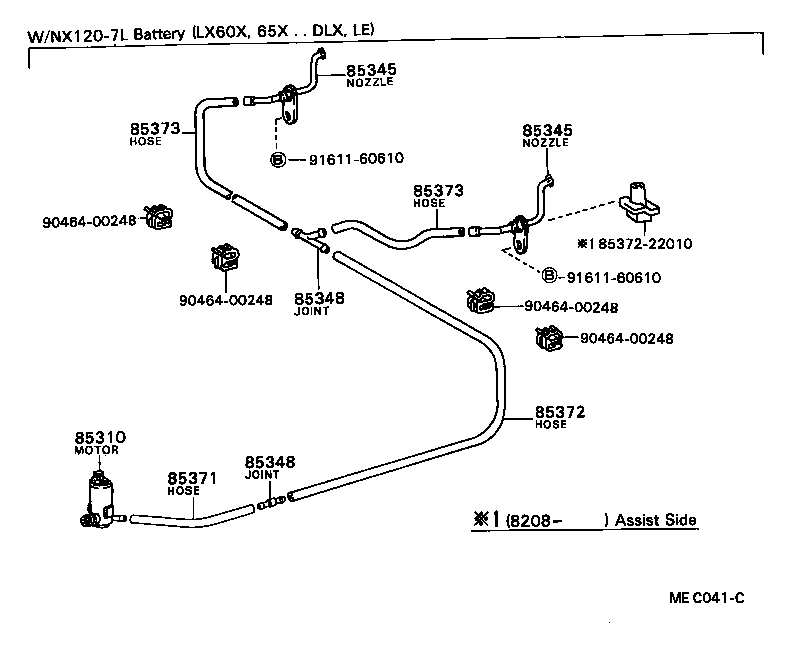

ILLUST NO. 1 OF 2(8208- )

Click highlighted areas on diagram

diagram 85310 85345 85345 85348 85348 85371 85372 8537222010 85373 85373 9046400248 9046400248 9046400248 9046400248 9161160610 9161160610
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

GX6#,LX6#,MX6#,RX6#,TX6#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-22131

GX6#,LX6#,MX6#,SX60,TX67

 2
85341-22130

GX6#,LX6#,MX6#,RX6#,TX6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-22131

GX6#,LX6#,MX6#,SX60,TX67

 2
85341-22130

GX6#,LX6#,MX6#,RX6#,TX6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

2WAY

 1
85355-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

3WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

2WAY

 1
85355-14010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

3WAY

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

GX6#,LX60,67,MX6#,RX6#,SX60,TX6#

*H,L=320

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

GX6#,LX6#,MX6#,RX6#,TX6#

*H,L=1300

 1
90446-07001

GX6#,LX60,67,MX6#,SX60,TX67

長さ=1250

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

*H,L=100

 1
90445-07073

MX61

L=650

 1
90099-33299

MX61

*H,L=640

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

*H,L=100

 1
90445-07073

MX61

L=650

 1
90099-33299

MX61

*H,L=640

 1
Common parts
85372-22010
90464-00248
91611-60610
