MX61-XEPQT (1981)
Toyota Mark 2

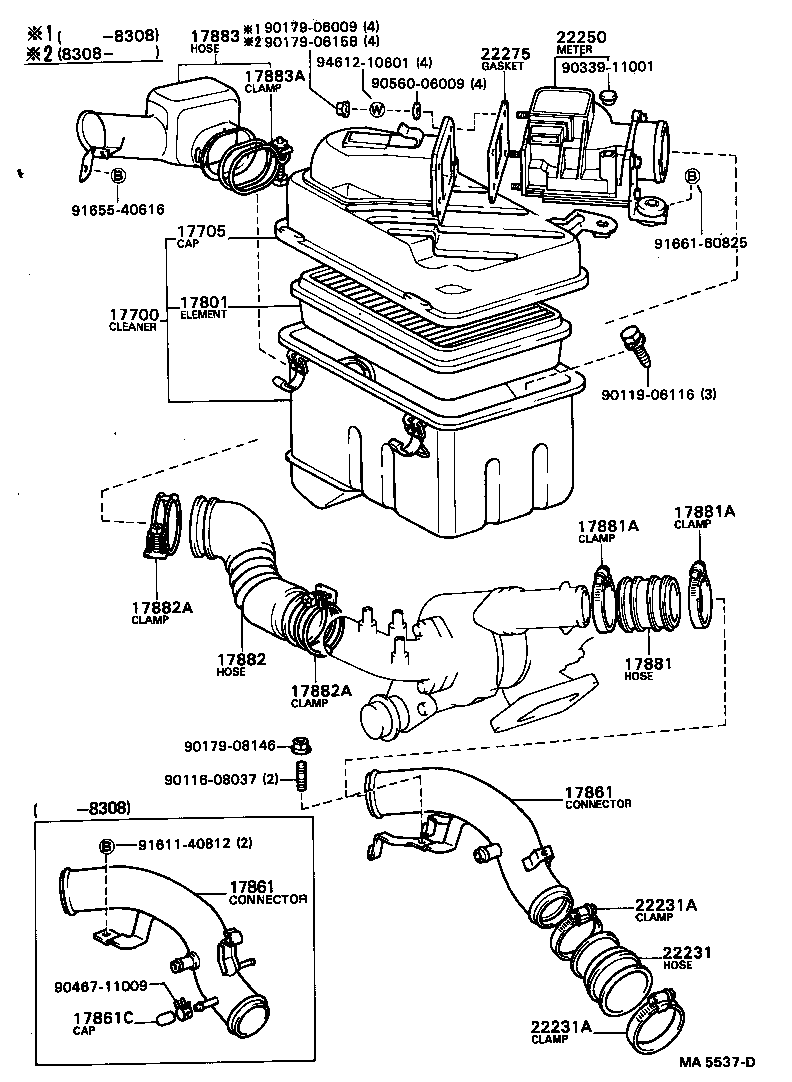

ILLUST NO. 1 OF 2(8110- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41580 |
MTEU..MX61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41170 |
MTEU..MX61 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70010 |
MTEU..MX61 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-41030 |
MTEU..MX61 |
1 | ||
| 17805-41040 |
MTEU..MX61 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17805-41030 |
MTEU..MX61 |
1 | ||
| 17805-41040 |
MTEU..MX61 |
1 | ||
| 17861C - CAP(FOR INTAKE AIR CONNECTOR) | ||||
| 90339-07016 |
MTEU..MX61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-41070 |
MTEU..MX61 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-75001 |
MTEU..MX61 ID=75 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-75001 |
MTEU..MX61 ID=75 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-41130 |
MTEU..MX61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5MEU,MTEU..MX61,63 PIPE SIDE |
1 | ||
| 96111-10800 |
5MEU,MTEU..MX61,63 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
5MEU,MTEU..MX61,63 PIPE SIDE |
1 | ||
| 96111-10800 |
5MEU,MTEU..MX61,63 AIR CLEANER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-41070 |
MTEU..MX61 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01027 |
MTEU..MX61 |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-41030 |
5MEU,MTEU..MX61,63 |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 90460-75001 |
MTEU..MX61 CONNECTOR SIDE |
1 | ||
| 90460-80001 |
MTEU..MX61 THROTTLE BODY SIDE |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 90460-75001 |
MTEU..MX61 CONNECTOR SIDE |
1 | ||
| 90460-80001 |
MTEU..MX61 THROTTLE BODY SIDE |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-41080 |
MTEU..MX61 |
1 | ||
| 22250-41090 |
MTEU..MX61 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-41010 |
5MEU,MTEU..MX61,63 |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90119-06116 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90339-11001 | ||||
| 90467-11009 | ||||
| 90560-06009 | ||||
| 91611-40812 | ||||
| 91655-40616 | ||||
| 91661-60825 | ||||
| 94612-10601 | ||||

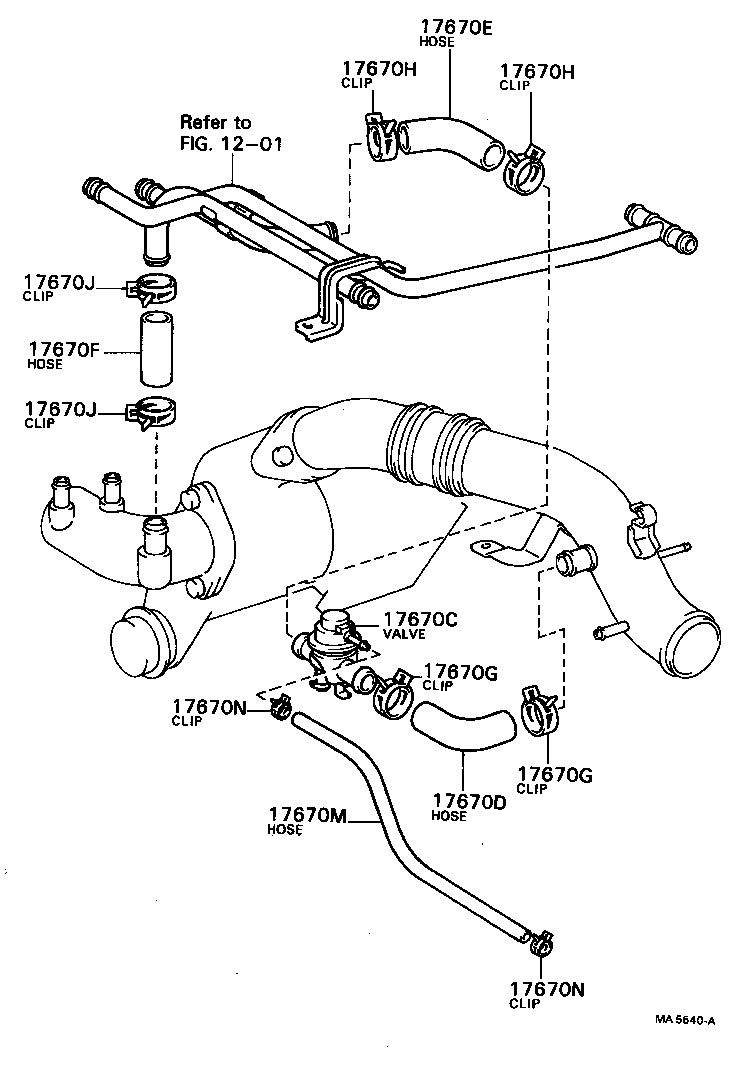

ILLUST NO. 2 OF 2(8110- )MTEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17670C - VALVE ASSY, AIR BY-PASS | ||||
| 17670-41020 |
MTEU..MX61 |
1 | ||
| 17670D - HOSE, AIR, NO.1(FOR AIR BY-PASS VALVE) | ||||
| 17345-41040 |
MTEU..MX61 |
1 | ||
| 17670E - HOSE, AIR, NO.2(FOR AIR BY-PASS VALVE) | ||||
| 17346-41020 |
MTEU..MX61 |
1 | ||
| 17670F - HOSE, AIR, NO.3(FOR AIR BY-PASS VALVE) | ||||
| 17347-41030 |
MTEU..MX61 |
1 | ||
| 17670G - CLIP(FOR AIR HOSE NO.1) | ||||
| 90467-26002 |
MTEU..MX61 |
2 | ||
| 17670G - CLIP(FOR AIR HOSE NO.1) | ||||
| 90467-26002 |
MTEU..MX61 |
2 | ||
| 17670H - CLIP(FOR AIR HOSE NO.2) | ||||
| 90467-26002 |
MTEU..MX61 |
2 | ||
| 17670H - CLIP(FOR AIR HOSE NO.2) | ||||
| 90467-26002 |
MTEU..MX61 |
2 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-26002 |
MTEU..MX61 |
2 | ||
| 17670J - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-26002 |
MTEU..MX61 |
2 | ||
| 17670M - HOSE, AIR, NO.4(FOR AIR BY-PASS VALVE) | ||||
| 90445-11052 |
MTEU..MX61 |
1 | ||
| 17670N - CLIP(FOR AIR HOSE NO.4) | ||||
| 90467-11009 |
MTEU..MX61 |
2 | ||
| 17670N - CLIP(FOR AIR HOSE NO.4) | ||||
| 90467-11009 |
MTEU..MX61 |
2 | ||
| Linked diagrams | ||||
| 1201 | ||||
