MX60-XEKDP (1980)

Toyota Mark 2

Production Nov 1980 - Jul 1984
Engine MU MPU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8011- )LPG

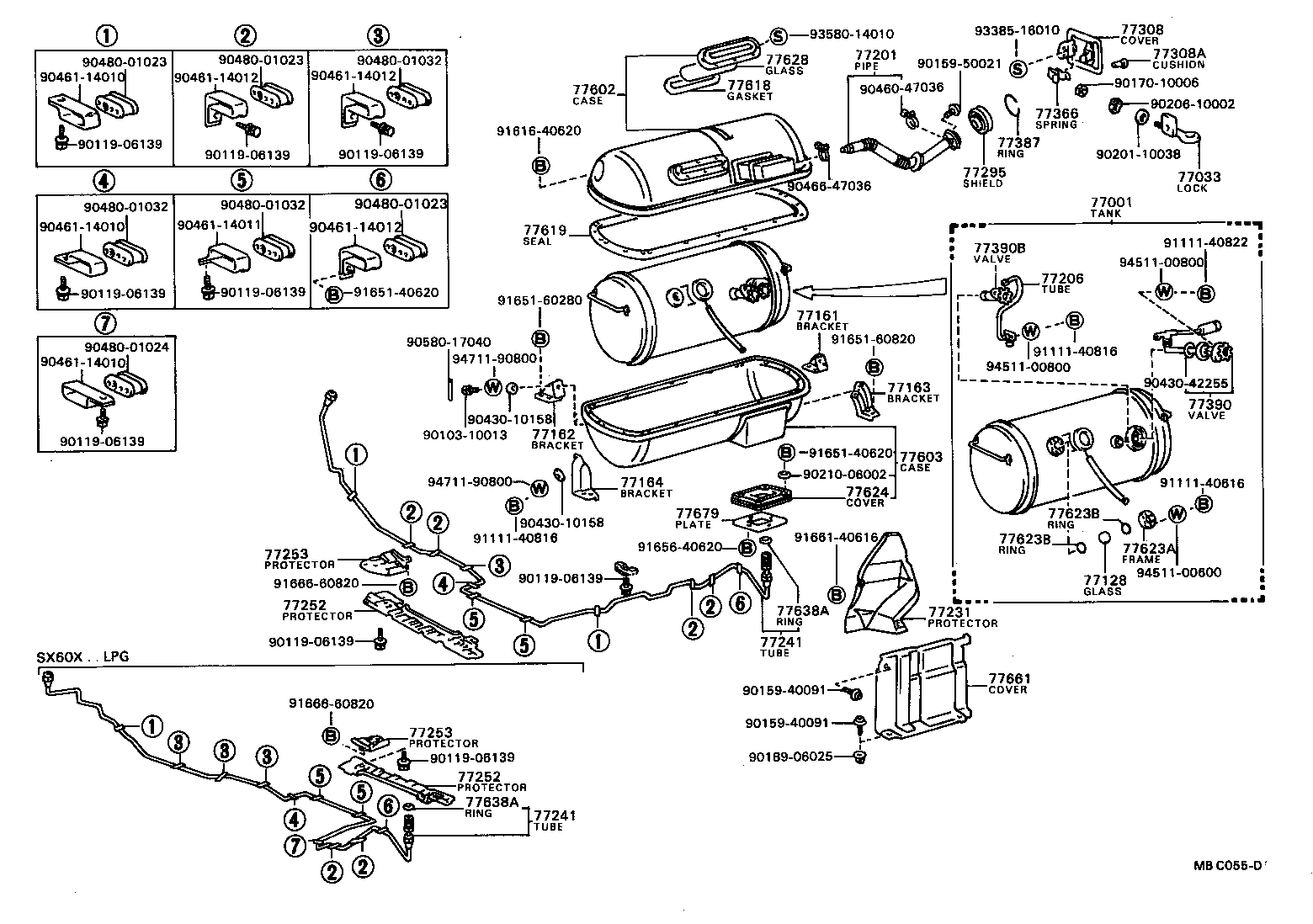

Click highlighted areas on diagram

diagram 77001 77033 77128 77161 77162 77163 77164 77201 77206 77231 77241 77241 77252 77252 77253 77253 77295 77308 77308A 77366 77387 77390 77390B 77602 77603 77618 77619 77623A 77623B 77623B 77624 77628 77638A 77638A 77661 77679 9010310013 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9015940091 9015940091 9015950021 9017010006 9018906025 9020110038 9020610002 9021006002 9043010158 9043010158 9043042255 9046047036 9046114010 9046114010 9046114010 9046114011 9046114012 9046114012 9046114012 9046647036 9048001023 9048001023 9048001023 9048001024 9048001032 9048001032 9048001032 9058017040 9111140616 9111140816 9111140816 9111140822 9161640620 9165140620 9165140620 9165160280 9165160820 9165640620 9166140616 9166660820 9166660820 9338516010 9358014010 9451100600 9451100800 9451100800 9471190800 9471190800
Part # Description Qty Price
77001 - TANK ASSY, FUEL (LPG)
77001-22160

MX60

 1
77033 - LOCK SUB-ASSY, FUEL TANK CAP
77037-22020

MX60

 1
77128 - GLASS, FUEL TANK WINDOW
77128-20010

MX60

 1
77161 - BRACKET, FUEL TANK, FRONT RH
77162-20020

MX60

 1
77162 - BRACKET, FUEL TANK, FRONT LH
77162-20020

MX60

 1
77163 - BRACKET, FUEL TANK, REAR RH
77163-20040

MX60

 1
77164 - BRACKET, FUEL TANK, REAR LH
77164-20030

MX60

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-22120

MX60

 1
77201-22121

MX60

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-22020

MX60

 1
77241 - TUBE, FUEL MAIN, NO.1
77205-22070

MX60

 1
77241 - TUBE, FUEL MAIN, NO.1
77205-22070

MX60

 1
77252 - PROTECTOR, FUEL TUBE
77266-22020

GX6#,LX6#,MX6#,SX60

 1
77252 - PROTECTOR, FUEL TUBE
77266-22020

GX6#,LX6#,MX6#,SX60

 1
77253 - PROTECTOR, FUEL TUBE, NO.2
77267-22010

GX6#,LX6#,MX6#,SX60

 1
77253 - PROTECTOR, FUEL TUBE, NO.2
77267-22010

GX6#,LX6#,MX6#,SX60

 1
77295 - SHIELD, FUEL FILLER PIPE
77292-22070

MX60

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-22040

MX60

 1
77350-22040

GX61,LX60,65,MX6#,SX60..DLX,GD,GL,GR,LE,LG,LGT

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08003

GX6#,LX6#,MX6#,RX6#,TX6#

OD=12

 2
90541-08003

GX6#,LX60,MX6#

OD=12

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-12010

GX6#,LX60,65,MX6#,SX60

 1
77366-12010

GX6#,LX6#,MX6#,RX6#,TX6#

 1
77387 - RING, FUEL INLET BOX
77391-16010

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED

 1
77390 - VALVE ASSY, FUEL TANK INLET
77390-22010

MX60

 1
77390B - VALVE, FUEL TANK OUTLET
90977-01019

MX60

 1
77602 - CASE SUB-ASSY, FUEL TANK, UPPER
77601-22030

MX60

 1
77603 - CASE SUB-ASSY, FUEL TANK, LOWER
77602-22040

MX60

 1
77618 - GASKET, CASE WINDOW
77618-30010

MX60

 1
77619 - SEAL, FUEL TANK VALVE COVER TO FLOOR
77619-22020

MX60

 1
77623A - FRAME, TANK COVER WINDOW GLASS
77623-20021

MX60

 1
77623B - RING, O (FOR TANK COVER WINDOW GLASS FRAME)
90301-39209

MX60

ID=39.4

 1
90301-34208

MX60

ID=34.4

 1
77623B - RING, O (FOR TANK COVER WINDOW GLASS FRAME)
90301-39209

MX60

ID=39.4

 1
90301-34208

MX60

ID=34.4

 1
77624 - COVER, FUEL TANK OUTLET, LOWER
77624-22020

MX60

 1
77628 - GLASS, CASE COVER WINDOW
77628-30010

MX60

 1
77638A - RING, O (FOR TANK VALVE JOINT SLEEVE)
96712-24011

MX60

 1
96720-02011

MX60

 1
77638A - RING, O (FOR TANK VALVE JOINT SLEEVE)
96712-24011

MX60

 1
96720-02011

MX60

 1
77661 - COVER, FUEL INLET PIPE
77661-22030

MX60

 1
77679 - PLATE, FUEL TANK OUTLET COVER SET, NO.3
77679-22010

MX60

 1
Common parts
90103-10013
90119-06139
90159-40091
90159-50021
90170-10006
90189-06025
90201-10038
90206-10002
90210-06002
90430-10158
90430-42255
90460-47036
90461-14010
90461-14011
90461-14012
90466-47036
90480-01023
90480-01024
90480-01032
90580-17040
91111-40616
91111-40816
91111-40822
91616-40620
91651-40620
91651-60280
91651-60820
91656-40620
91661-40616
91666-60820
93385-16010
93580-14010
94511-00600
94511-00800
94711-90800
