MX60-XEKDP (1980)

Toyota Mark 2

Production Nov 1980 - Jul 1984
Engine MU MPU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8011- )MU

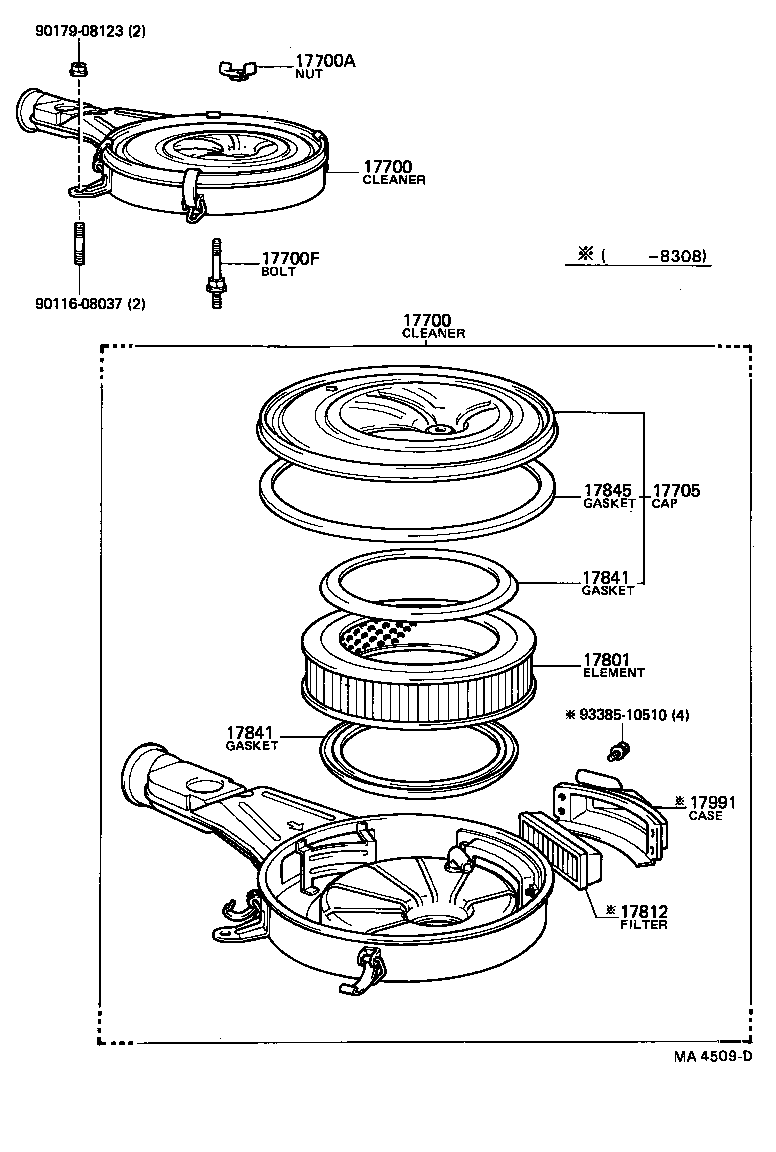

Click highlighted areas on diagram

diagram 17700 17700 17700A 17700F 17705 17801 17812 17841 17841 17845 17991 9011608037 9017908123 9338510510
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-41550

MU..MX60

 1
17700-41620

MU..MX60

 1
17700 - CLEANER ASSY, AIR
17700-41550

MU..MX60

 1
17700-41620

MU..MX60

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

MU..MX60

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06309

MU..MX60

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-41130

MU..MX60

 1
17705-41200

MU..MX60

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41060

MU..MX60

 1
17812 - FILTER, AIR CLEANER, NO.2
17812-31010

MU..MX60

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

MU..MX60

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

MU..MX60

 2
17845 - GASKET, AIR CLEANER CAP
17845-41040

MU..MX60

 1
17845-61011

MU..MX60

*G,L=1172

 1
17991 - CASE, AIR SUCTION FILTER
17804-41020

MU..MX60

 1
Common parts
90116-08037
90179-08123
93385-10510

(8009-8208)L

Click highlighted areas on diagram

diagram 1709 17700 17801 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 9011906108 9165540616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-41550

MU..MX60

 1
17700-41620

MU..MX60

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41060

MU..MX60

 1
Common parts
90119-06108
91655-40616
Linked diagrams
1709

(8208- )L

Click highlighted areas on diagram

diagram 17700 17705 17710B 17801 17881 17881A 17881A 17882 17882A 17882A 17883 9011906108 9015960176 9015960176 9054009080 9054009080 9056006456 9056006456
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-41550

MU..MX60

 1
17700-41620

MU..MX60

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-41130

MU..MX60

 1
17705-41200

MU..MX60

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41060

MU..MX60

 1
Common parts
90119-06108
90159-60176
90540-09080
90560-06456
