MX60-XEHDP (1980)

Toyota Mark 2

Production Nov 1980 - Jul 1984
Engine MU MPU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8011- )MX60

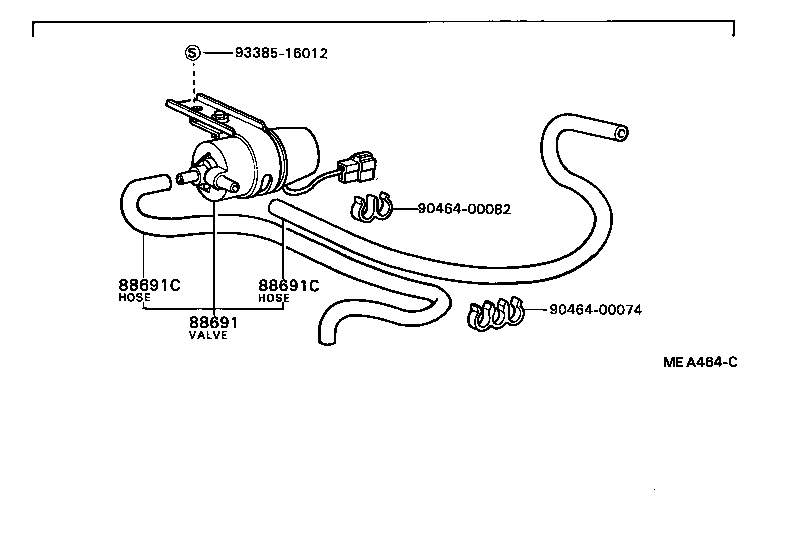

Click highlighted areas on diagram

diagram 88691 88691C 88691C 9046400074 9046400082 9338516012
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-30410

MX60

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

MX60

*H,L=350,ﾏｰｸ=#*

 1
95411-10030

MX60

*H,L=200,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

MX60

*H,L=350,ﾏｰｸ=#*

 1
95411-10030

MX60

*H,L=200,ﾏｰｸ=#0

 1
Common parts
90464-00074
90464-00082
93385-16012
