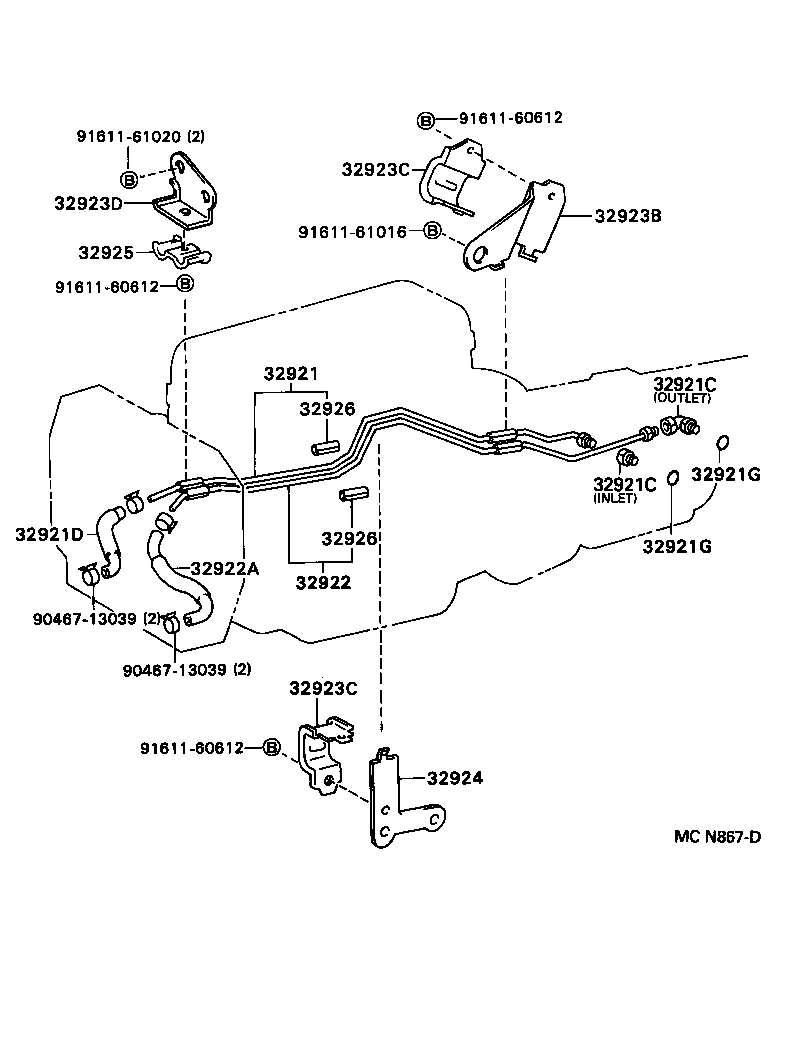

Toyota Mark 2 LX90 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22670	LX90..ATM	10/1992 - 09/1996	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003	GX90,LX90..ATM OUTLET	09/1994 - 09/1996	1
90407-14003	GX90,LX90,SX90..ATM OUTLET	10/1992 - 09/1994	1
90404-14007	GX90,LX90,SX90..ATM INLET	10/1992 - 09/1996	1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003	GX90,LX90..ATM OUTLET	09/1994 - 09/1996	1
90407-14003	GX90,LX90,SX90..ATM OUTLET	10/1992 - 09/1994	1
90404-14007	GX90,LX90,SX90..ATM INLET	10/1992 - 09/1996	1
32921D - HOSE(FOR OIL COOLER INLET)
32941-22260	LX90..ATM	10/1992 - 09/1996	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	GX90,LX90,SX90..ATM	10/1992 - 09/1996	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	GX90,LX90,SX90..ATM	10/1992 - 09/1996	2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22760	LX90..ATM	03/1996 - 09/1996	1
32922-22670	LX90..ATM	10/1992 - 03/1996	1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-22220	LX90..ATM	10/1992 - 09/1996	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-22070	LX90..ATM	10/1992 - 09/1996	1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-28010	LX90,SX90..ATM	10/1992 - 09/1996	2
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-28010	LX90,SX90..ATM	10/1992 - 09/1996	2
32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32928-22110	LX90..ATM	10/1992 - 09/1996	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32923-22041	LX90..ATM	10/1992 - 09/1996	1
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-12085	GX90,LX90,SX90..ATM	10/1992 - 09/1996	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010	LX90..ATM 長さ=35,内径=8	10/1992 - 09/1996	4
32926-22040	LX90..ATM 長さ=40,内径=8	10/1992 - 09/1996	2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010	LX90..ATM 長さ=35,内径=8	10/1992 - 09/1996	4
32926-22040	LX90..ATM 長さ=40,内径=8	10/1992 - 09/1996	2
Common parts
90467-13039
91611-60612
91611-61016
91611-61020

LX90-ATPNT (1992)

(9210- )LX90..ATM
