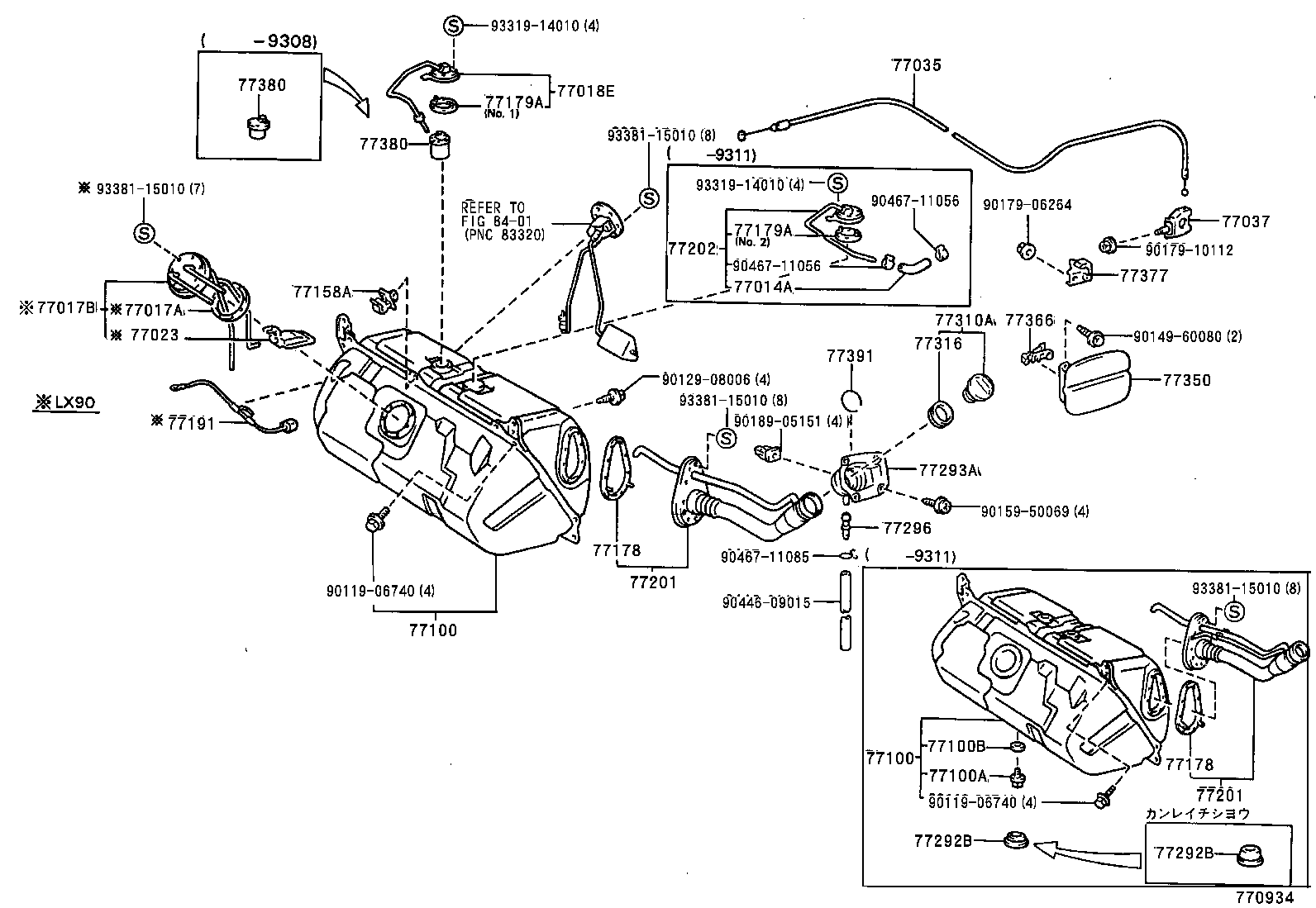

LX90-ATPET (1992)
Toyota Mark 2
(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 95333-06020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14010 |
LX90 |
1 | ||
| 77169-14010 |
JZX91;JZX90,LX90,SX90..GL,GRO,TOUV |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-22200 |
LX90 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-31020 |
LX90 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22200 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-22060 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22922 |
JZX91,LX90,SX90 |
1 | ||
| 77001-22924 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77001-22922 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-22922 |
JZX91,LX90,SX90 |
1 | ||
| 77001-22924 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77001-22922 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LX90 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LX90 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-22020 |
LX90 |
2 | ||
| 77158-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77158-22020 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77179-20040 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 77179-26010 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77179-20040 |
GX90,JZX9#,LX90,SX90 NO.2 |
1 | ||
| 77179-26010 |
GX90,JZX9#,LX90,SX90 NO.1 |
1 | ||
| 77191 - WIRE, FUEL TANK EARTH | ||||
| 77191-22010 |
LX90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22320 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77201-22321 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22320 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77201-22321 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77202 - TUBE SUB-ASSY, BREATHER | ||||
| 77012-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-22130 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77292-22140 |
LX90 |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-22130 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77292-22140 |
LX90 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-22070 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
LX90 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-22130 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77380-14020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77380-14020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90119-06740 | ||||
| 90129-08006 | ||||
| 90149-60080 | ||||
| 90159-50069 | ||||
| 90179-06264 | ||||
| 90179-10112 | ||||
| 90189-05151 | ||||
| 90446-09015 | ||||
| 90467-11056 | ||||
| 90467-11085 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

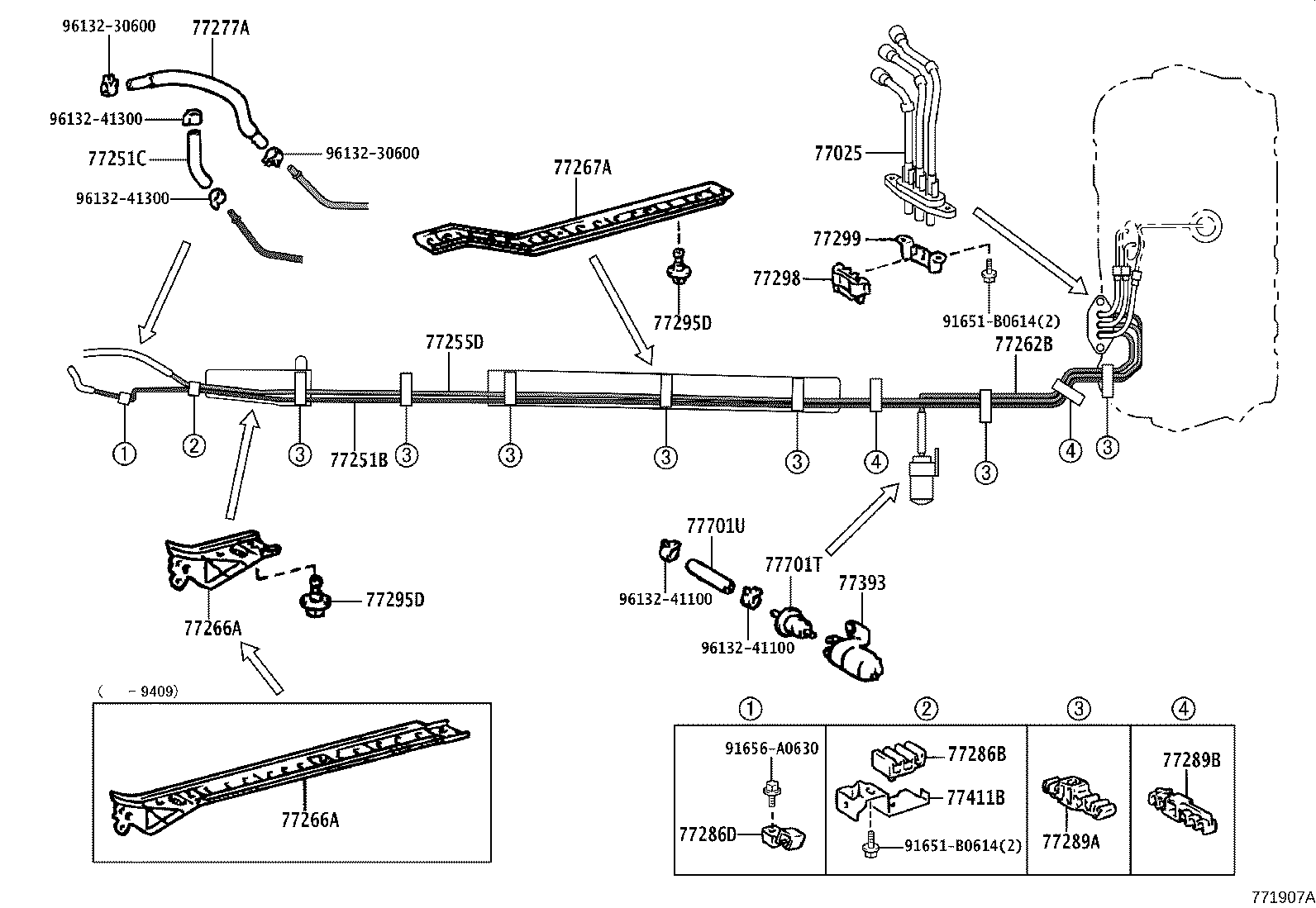

(9210- )LX90
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-22020 |
LX90,SX90 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-22480 |
LX90 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
LX90 長さ=200,内径=8 |
1 | ||
| 95333-08020 |
LX90 長さ=200,内径=8 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-22380 |
LX90 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-22040 |
LX90 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-22130 |
GX90,JZX9#,LX90 |
1 | ||
| 77266-22080 |
GX90,JZX90,91,LX90 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-22130 |
GX90,JZX9#,LX90 |
1 | ||
| 77266-22080 |
GX90,JZX90,91,LX90 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-22060 |
GX90,JZX9#,LX90 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12064 |
LX90 長さ=540 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-22020 |
LX90 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-22030 |
LX90 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-22020 |
GX90,JZX9#,LX90 |
9 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-22060 |
LX90,SX90 |
1 | ||
| 77289-22060 |
LX90,SX90 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-22090 |
GX90,JZX9#,LX90 |
7 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-22090 |
GX90,JZX9#,LX90 |
7 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-22040 |
LX90,SX90 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-22020 |
LX90,SX90 |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77284-32020 |
LX90 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22020 |
GX90,JZX9#,LX90 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
LX90 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
LX90 *H,L=300 |
1 | ||
| Common parts | ||||
| 91651-B0614 | ||||
| 91656-A0630 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
