LX90-ATPET (1992)
Toyota Mark 2
(9210- )2LTE

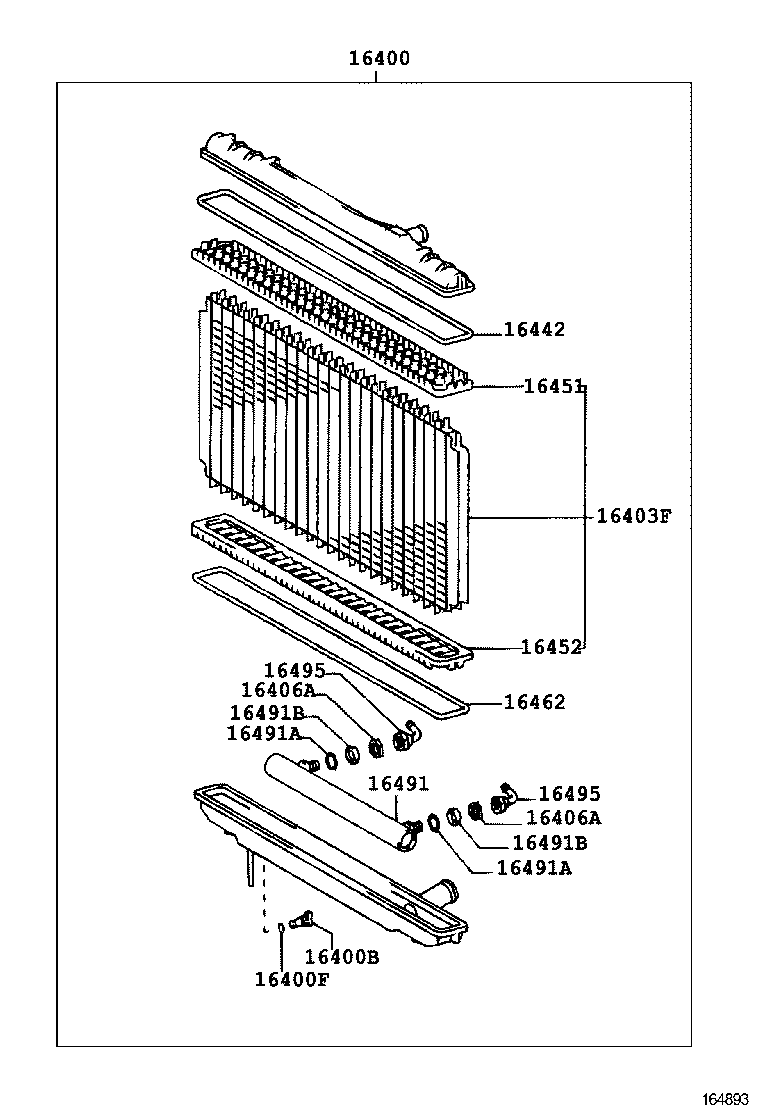

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B100 |
2LTE..LX90..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2LTE..LX90 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2LTE..LX90 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-5B100 |
2LTE..LX90..ATM |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
2LTE..LX90..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
2LTE..LX90..ATM |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-46040 |
2LTE..LX90 |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-46040 |
2LTE..LX90 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-46040 |
2LTE..LX90 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
2LTE..LX90 |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-5B100 |
2LTE..LX90..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
2LTE..LX90..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
2LTE..LX90..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
2LTE..LX90..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
2LTE..LX90..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-5B100 |
2LTE..LX90..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-5B100 |
2LTE..LX90..ATM |
2 | ||

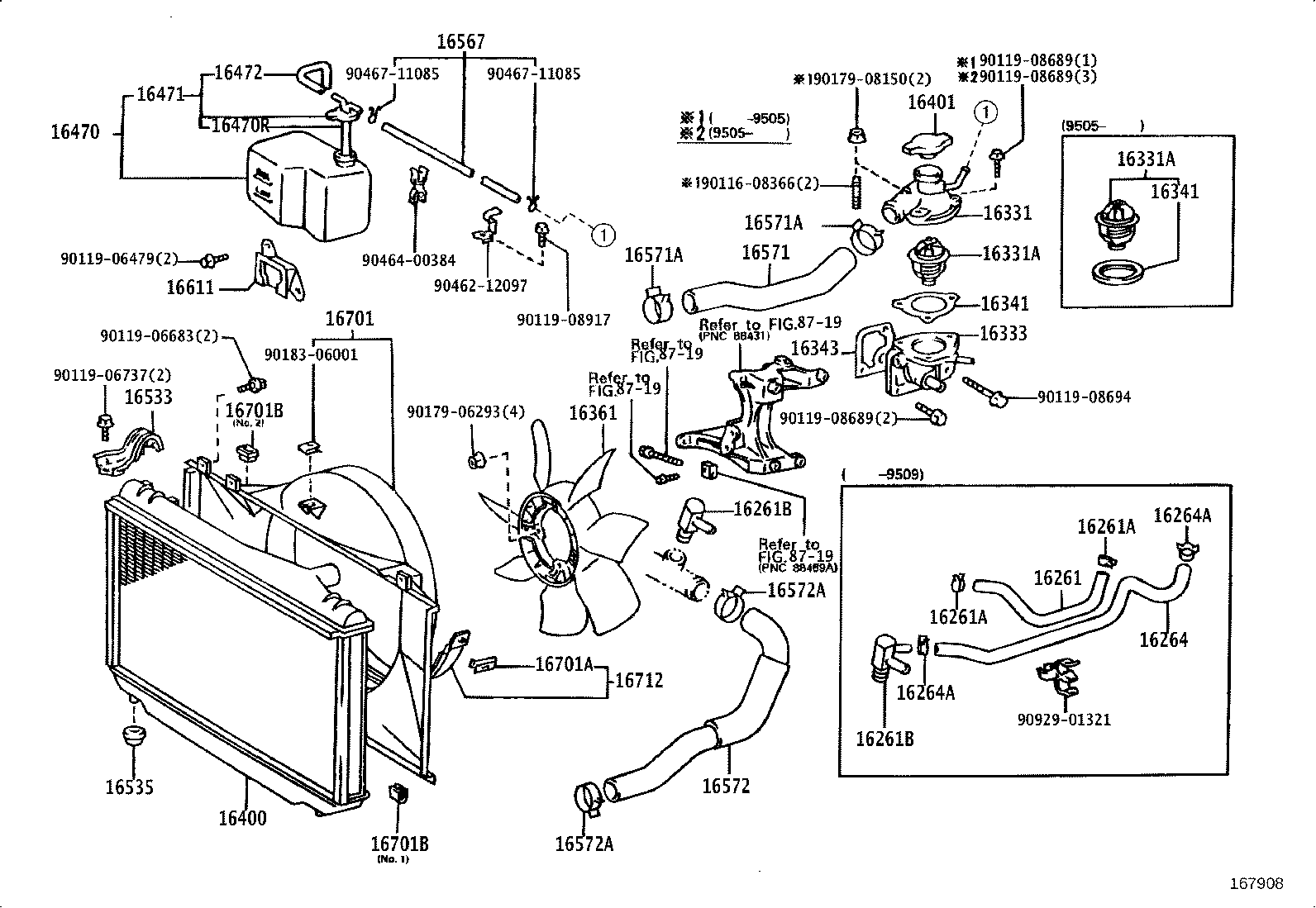

(9210- )2LTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54110 |
2LTE..LX90 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2LTE..LX90 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2LTE..LX90 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54040 |
2LTE..LX90 |
1 | ||
| 87251-89113 |
2LTE..LX90 |
1 | ||
| 90404-54037 |
2LTE..LX90 |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54040 |
2LTE..LX90 |
1 | ||
| 87251-89113 |
2LTE..LX90 |
1 | ||
| 90404-54037 |
2LTE..LX90 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54130 |
2LTE..LX90 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LTE..LX90 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LTE..LX90 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54160 |
2LTE..LX90 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2LTE..LX90 *WAX 88−100 |
1 | ||
| 16340-54010 |
2LTE..LX90 *WAX 88−100 |
1 | ||
| 16340-54020 |
2LTE..LX90 *WAX 88−100,NIHON |
1 | ||
| 16340-54010 |
2LTE..LX90 *WAX 88−100,KUZEH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03099 |
2LTE..LX90 *WAX 88−100 |
1 | ||
| 16340-54010 |
2LTE..LX90 *WAX 88−100 |
1 | ||
| 16340-54020 |
2LTE..LX90 *WAX 88−100,NIHON |
1 | ||
| 16340-54010 |
2LTE..LX90 *WAX 88−100,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54123 |
2LTE..LX90 |
1 | ||
| 16333-54112 |
2LTE..LX90 |
1 | ||
| 16333-54113 |
2LTE..LX90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54040 |
2LTE..LX90 |
1 | ||
| 16341-35010 |
2LTE..LX90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54040 |
2LTE..LX90 |
1 | ||
| 16341-35010 |
2LTE..LX90 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
2LTE..LX90 |
1 | ||
| 16361 - FAN | ||||
| 16361-70030 |
2LTE..LX90 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B100 |
2LTE..LX90..ATM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2LTE..LX90 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54260 |
2LTE..LX90 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LTE..LX90 長さ=600 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54230 |
2LTE..LX90 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-54260 |
2LTE..LX90 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46020 |
2LTE..LX90 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
2LTE..LX90 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-54090 |
2LTE..LX90 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54360 |
2LTE..LX90 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2LTE..LX90 |
2 | ||
| 90467-37006 |
2LTE..LX90 |
2 | ||
| 90467-37002 |
2LTE..LX90 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2LTE..LX90 |
2 | ||
| 90467-37006 |
2LTE..LX90 |
2 | ||
| 90467-37002 |
2LTE..LX90 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54400 |
2LTE..LX90 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
2LTE..LX90 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37006 |
2LTE..LX90 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41007 |
2LTE..LX90 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-41004 |
2LTE..LX90 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LTE..LX90 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
2LTE..LX90 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37006 |
2LTE..LX90 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41007 |
2LTE..LX90 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-41004 |
2LTE..LX90 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2LTE..LX90 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54120 |
2LTE..LX90 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54260 |
2LTE..LX90 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2LTE..LX90 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2LTE..LX90 NO.1 |
2 | ||
| 90541-14002 |
2LTE..LX90 NO.2 |
1 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2LTE..LX90 NO.1 |
2 | ||
| 90541-14002 |
2LTE..LX90 NO.2 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-54030 |
2LTE..LX90 |
1 | ||
| Common parts | ||||
| 90116-08366 | ||||
| 90119-06479 | ||||
| 90119-06683 | ||||
| 90119-06737 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08917 | ||||
| 90179-06293 | ||||
| 90179-08150 | ||||
| 90183-06001 | ||||
| 90462-12097 | ||||
| 90464-00384 | ||||
| 90467-11085 | ||||
| 90929-01321 | ||||
| Linked diagrams | ||||
| 8719 | ||||
